MICRONEDatasheet (PDF)

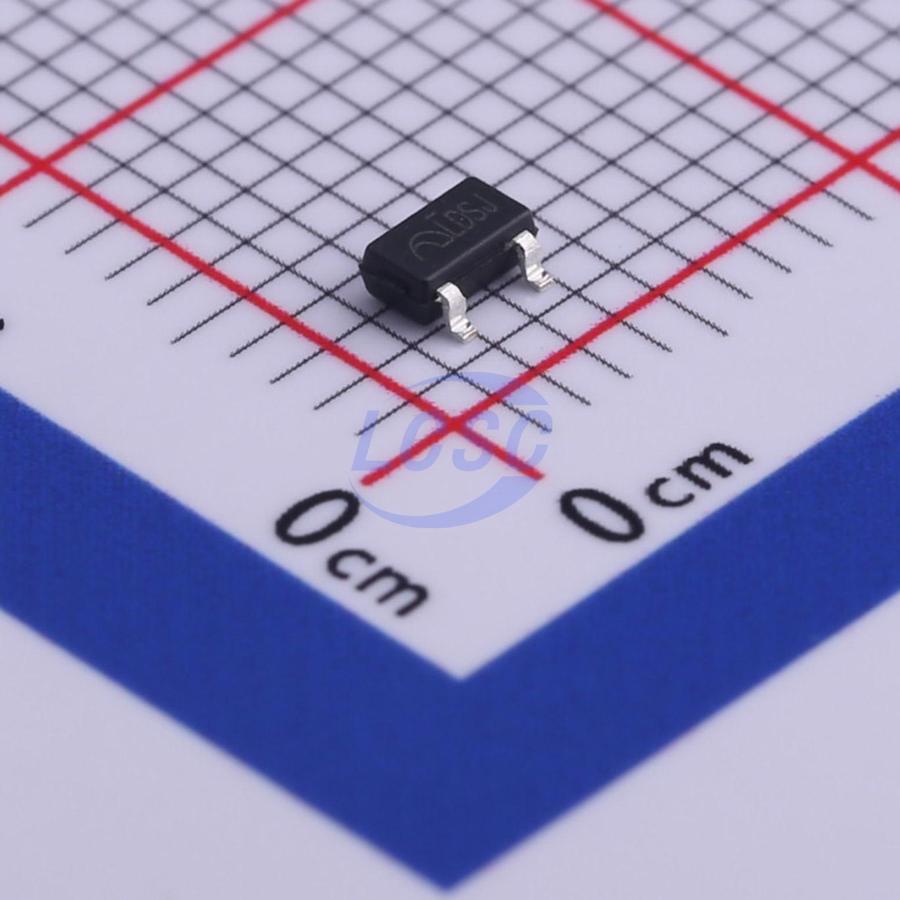

ME6228A30M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT23-3
SOT23-3ROHS CompliantActive
Linear voltage regulator with a 150mA load capacity, 0.8μA low power consumption, and 30V high voltage tolerance
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6228A30M3G
- Store part #
- C487915
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,190 in stock
#C487915
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.20 | ₹82.00 |
| 100+ | ₹6.47 | ₹647.00 |
| 300+ | ₹5.61 | ₹1,683.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.45 | ₹26,700.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹8.20
₹82.00
excl. GST
₹96.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6228A30M3G
₹82.00 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
ME6228 is a low dropout, low quiescent current linear regulator fabricated using CMOS process, integrating a reference circuit, error amplifier, and feedback resistor network. The ME6228 supports an input voltage up to 30V and an output current up to 150mA. The internal feedback voltage sets a fixed output voltage, ranging from 1.5V to 12V.
Applications
- Battery-powered devices
- Audio/video equipment
- Communication equipment
Key features
- High input voltage: up to 30V
- Ultra-low quiescent current: 0.8uA (Typ)
- Output voltage range: 1.5~12V
- Output voltage accuracy:
- ±1% (VOUT = 1.8V, 3.3V, 3.6V, 4.0V, 5.0V)
- ±2% (other voltage values)
- Output current: IOUT = 150mA (VIN = 4.8V & VOUT = 3.3V)
- Short-circuit current: 18mA
- Low temperature coefficient
- Stable output with low-ESR ceramic capacitors
