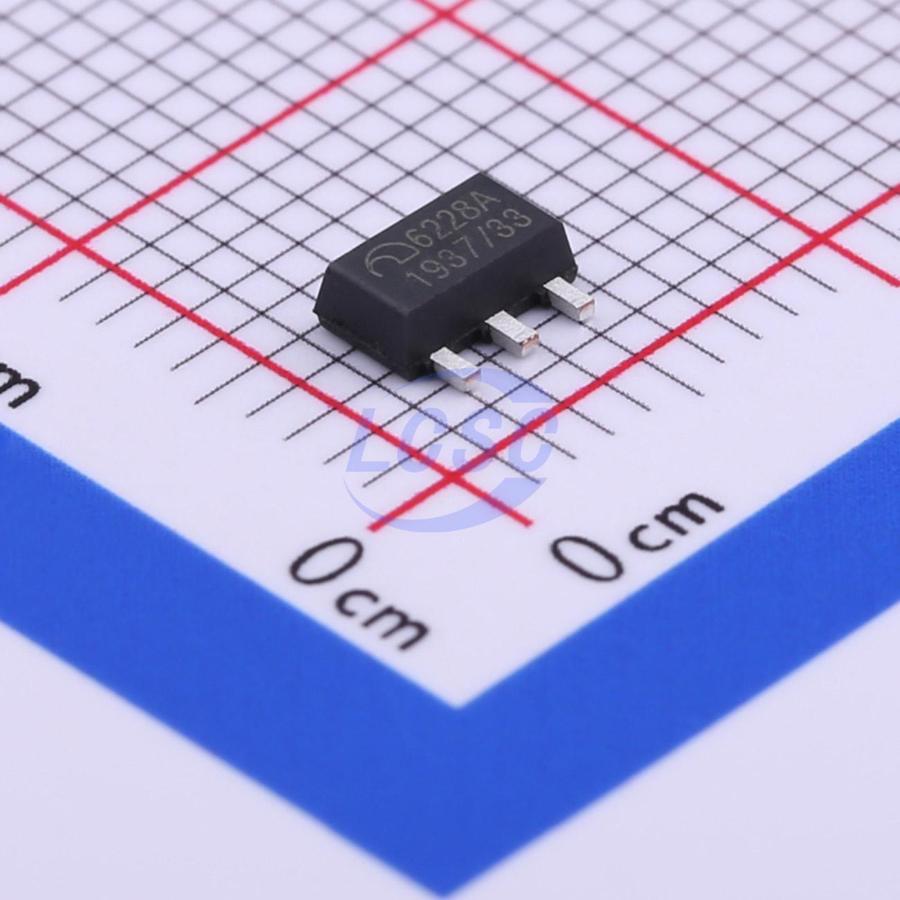

ME6228A33PG
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89-3
SOT-89-3RoHSActive
Linear voltage regulator with a 150mA load capacity, 0.8μA low power consumption, and 30V high voltage tolerance
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6228A33PG
- Store part #
- C427604
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C427604
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.29 | ₹92.90 |
| 100+ | ₹7.24 | ₹724.00 |
| 300+ | ₹6.22 | ₹1,866.00 |
| 1,000+ | ₹5.45 | ₹5,450.00 |
| 5,000+ | ₹4.84 | ₹24,200.00 |
| 10,000+ | ₹4.52 | ₹45,200.00 |
10 × ₹9.29
₹92.90
excl. GST
₹109.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6228A33PG
₹92.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.162 g
Overview
ME6228 is a low-dropout, low-power linear regulator fabricated in CMOS process, integrating a reference circuit, error amplifier, and feedback resistor network. The ME6228 supports an input voltage up to 30V and a maximum output current of 150mA. The internal feedback voltage enables fixed output voltage settings ranging from 1.5V to 12V.
Applications
- Battery-powered devices
- Audio/video equipment
- Communication equipment
Key features
- High input voltage: up to 30V
- Ultra-low quiescent current: 0.8uA (Typ)
- Output voltage range: 1.5~12V
- Output voltage accuracy: ±2%
- Short-circuit current: 18mA
- Low temperature coefficient
- Stable output with low-ESR ceramic capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6239A33PG#C151880MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 145 | ₹12.73 · 145 in stock | View |
