MICRONEDatasheet (PDF)

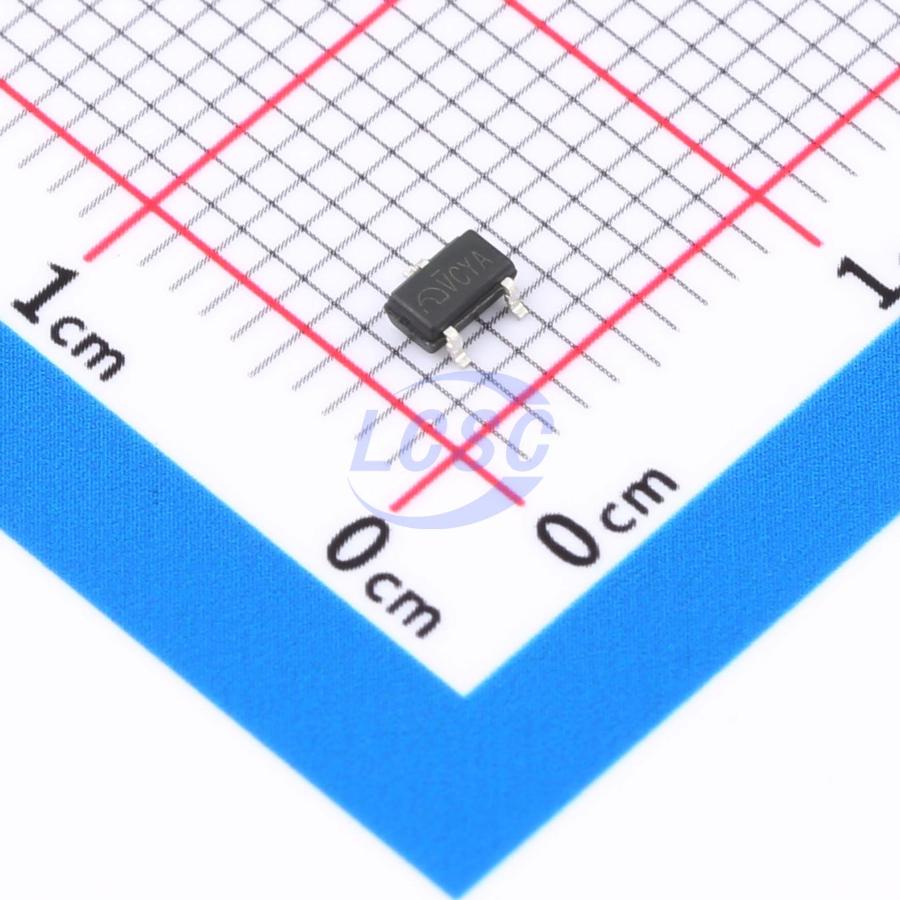

ME6231A33M3G
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
18V, Low Power, High Accuracy, High PSRR LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6231A33M3G
- Store part #
- C2765181
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,16,330 in stock
#C2765181
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.23 | ₹51.15 |
| 50+ | ₹8.37 | ₹418.50 |
| 150+ | ₹7.44 | ₹1,116.00 |
| 500+ | ₹6.74 | ₹3,370.00 |
| 3,000+ | ₹5.96 | ₹17,880.00 |
| 6,000+ | ₹5.69 | ₹34,140.00 |
5 × ₹10.23
₹51.15
excl. GST
₹60.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6231A33M3G
₹51.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 18V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
The ME6231 series are high accuracy, CMOS LDO Voltage Regulators, offering low power, high ripple rejection ratio and low dropout. The ME6231 series is ideal for today’s cutting edge mobile phone. Internally the ME6231 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The ME6231’s current limiters' foldback circuit also operates as a short protect for the output current limiter and the output pin. The ME6231 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
Applications
- Mobile phones
- Cordless phones, radio communication equipment
- Portable games
- Cameras, Video cameras
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 500mA (V_IN = 4.3V, V_OUT = 3.3V)
- Dropout Voltage: 125mV @ I_OUT = 100mA (V_OUT = 3.3V)
- Operating Voltage Range: 3V ~ 18V
- Output Voltage Range: 1.6V ~ 5.0V
- Highly Accuracy: ±1％
- Low Power Consumption: 1.8uA (TYP.)
- Standby Current: 0 uA (TYP.)
- High Ripple Rejection: 65dB @ 1KHz (ME6231C33)
- Line Regulation: 0.035%/V (TYP.)
- Built-in temperature protection and current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6210A33M3G#C236680MICRONE · SOT23-3 | MICRONE | SOT23-3 | 17,630 | ₹7.34 · 17,630 in stock | View |
 | ME6118A33M3G#C427591MICRONE · SOT23-3 | MICRONE | SOT23-3 | 580 | ₹6.82 · 580 in stock | View |
