MICRONEDatasheet (PDF)

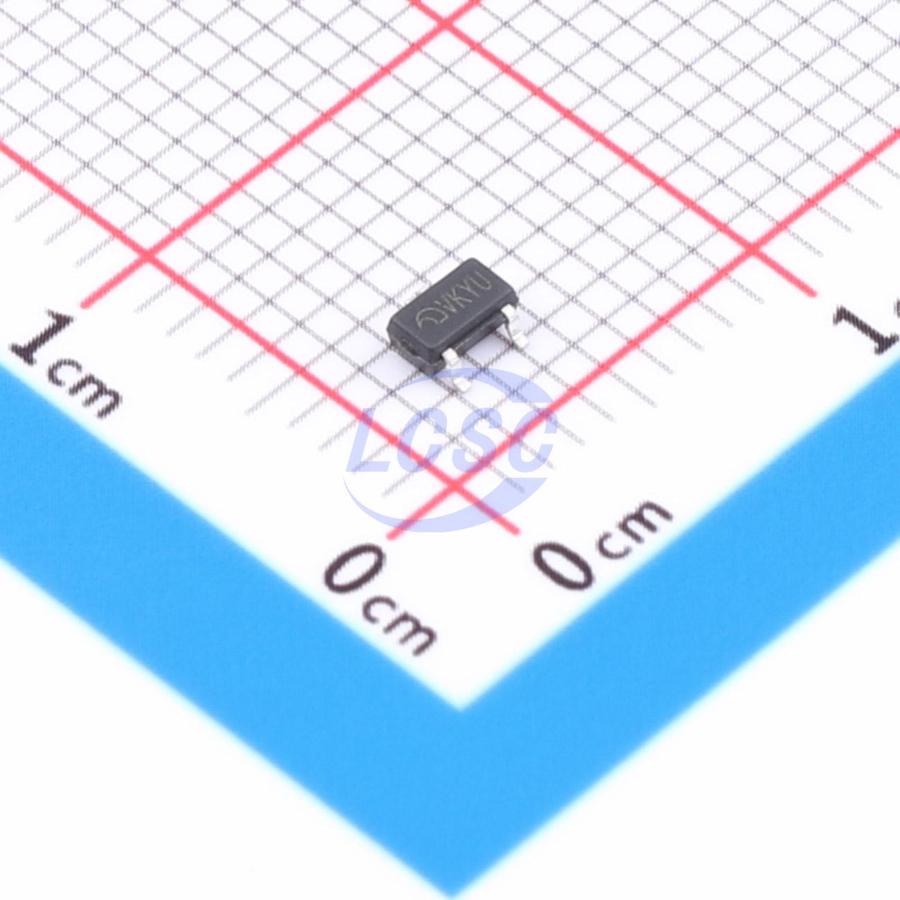

ME6232A30M3G
3V Positive Fixed SOT23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT23-3RoHSActive
IC REG LINEAR 3V 400mA SOT23-3
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6232A30M3G
- Store part #
- C50387246
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C50387246
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.41 | ₹88.20 |
| 200+ | ₹3.44 | ₹688.00 |
| 600+ | ₹2.91 | ₹1,746.00 |
| 3,000+ | ₹2.58 | ₹7,740.00 |
| 9,000+ | ₹2.30 | ₹20,700.00 |
| 21,000+ | ₹2.16 | ₹45,360.00 |
20 × ₹4.41
₹88.20
excl. GST
₹104.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6232A30M3G
₹88.20 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.4uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.057 g
Overview
The ME6232 series is a low-dropout linear regulator fabricated in CMOS technology, featuring 1.4uA quiescent current, high accuracy, and high PSRR. The series integrates a fixed voltage reference, thermal protection, current limiting, phase compensation circuitry, and a low on-resistance MOSFET, achieving ultra-low power consumption, high ripple rejection, and low-dropout performance. Compatible with smaller ceramic capacitors and requiring no bypass capacitor, it helps save board space. Its fast transient response handles load current fluctuations, making it especially suitable for portable and RF applications. The output can be disabled via the chip enable pin, reducing power consumption to 0uA in shutdown.
Applications
- Mobile phones
- Cordless telephone devices
- Cameras
- Bluetooth
- Voltage references
Key features
- Maximum output current: 400mA (VIN = 4.3V, VOUT = 3.3V)
- Low dropout: 110mV @ IOUT = 100mA (ME6232C33)
- Operating voltage range: 1.8V~6.0V
- Output voltage range: 1.2V~5.0V
- High output accuracy: ±1%
- Low quiescent current: 1.4uA (typ.)
- Shutdown current: 0uA (typ.)
- High ripple rejection ratio: 70dB @ 1KHz (ME6232C33)
- Built-in thermal protection and current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6211A30M3G-N#C236675MICRONE · SOT-23 | MICRONE | SOT-23 | 1,210 | ₹7.24 · 1,210 in stock | View |
 | ME6210A30M3G#C116985MICRONE · SOT-23 | MICRONE | SOT-23 | 6,390 | ₹8.73 · 6,390 in stock | View |
 | ME6230A30M3G#C2927384MICRONE · SOT-23 | MICRONE | SOT-23 | 950 | ₹7.18 · 950 in stock | View |
