MICRONEDatasheet (PDF)

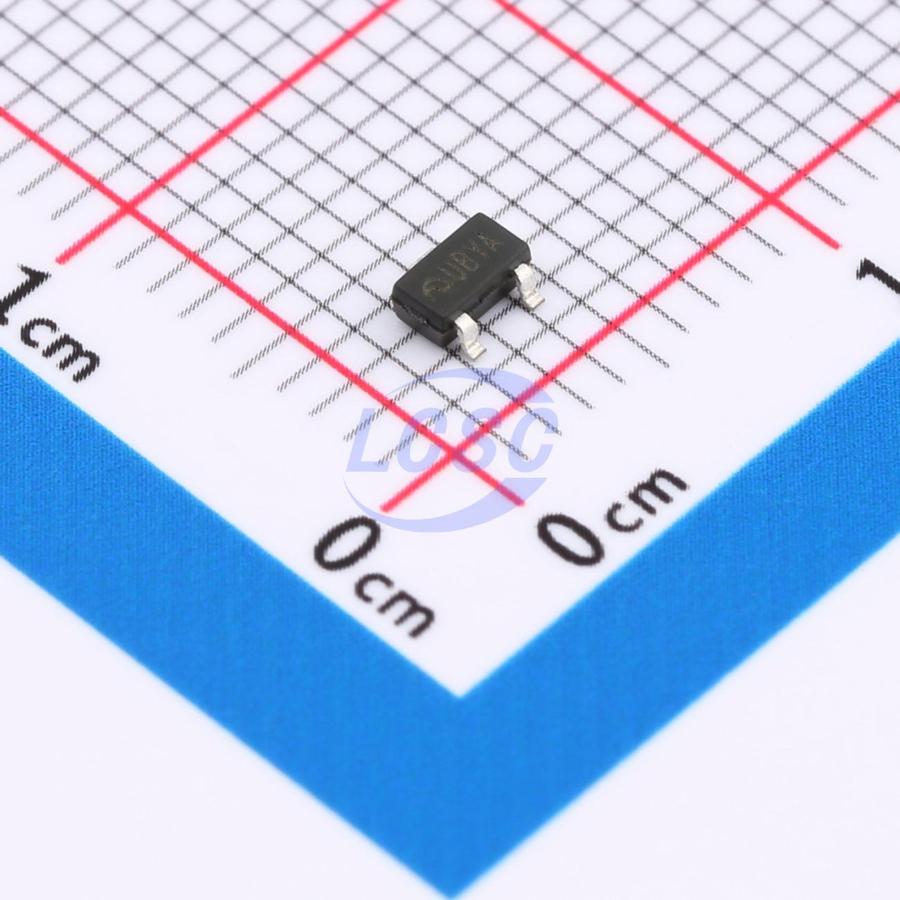

ME6239A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23RoHSActive
A linear voltage regulator with a 250 mA load capacity, 1.5 μA low power consumption, output overshoot suppression, and 30 V high voltage tolerance
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6239A33M3G
- Store part #
- C151879
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,295 in stock
#C151879
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.28 | ₹46.40 |
| 50+ | ₹7.25 | ₹362.50 |
| 150+ | ₹6.23 | ₹934.50 |
| 500+ | ₹5.47 | ₹2,735.00 |
| 3,000+ | ₹4.85 | ₹14,550.00 |
| 6,000+ | ₹4.54 | ₹27,240.00 |
5 × ₹9.28
₹46.40
excl. GST
₹54.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6239A33M3G
₹46.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 250mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
ME6239 is a low-dropout, low-power linear regulator fabricated in CMOS process, integrating a reference circuit, error amplifier, and feedback resistor network. The ME6239 supports an input voltage up to 30V and an output current up to 250mA. The internal feedback voltage enables fixed output voltage settings ranging from 1.5V to 12V.
Applications
- Battery-powered devices
- Audio/video equipment
- Communication equipment
Key features
- High input voltage: up to 30V
- Suppresses output voltage overshoot at power-up
- Ultra-low quiescent current: 1.5uA (Typ)
- Output voltage range: 1.5~12V
- Output voltage accuracy: ±1%
- Output current: IOUT = 250mA (VIN = 6.5V & VOUT = 5.0V)
- Short-circuit current: 42mA
- Low temperature coefficient
- Stable output with low-ESR ceramic capacitors
