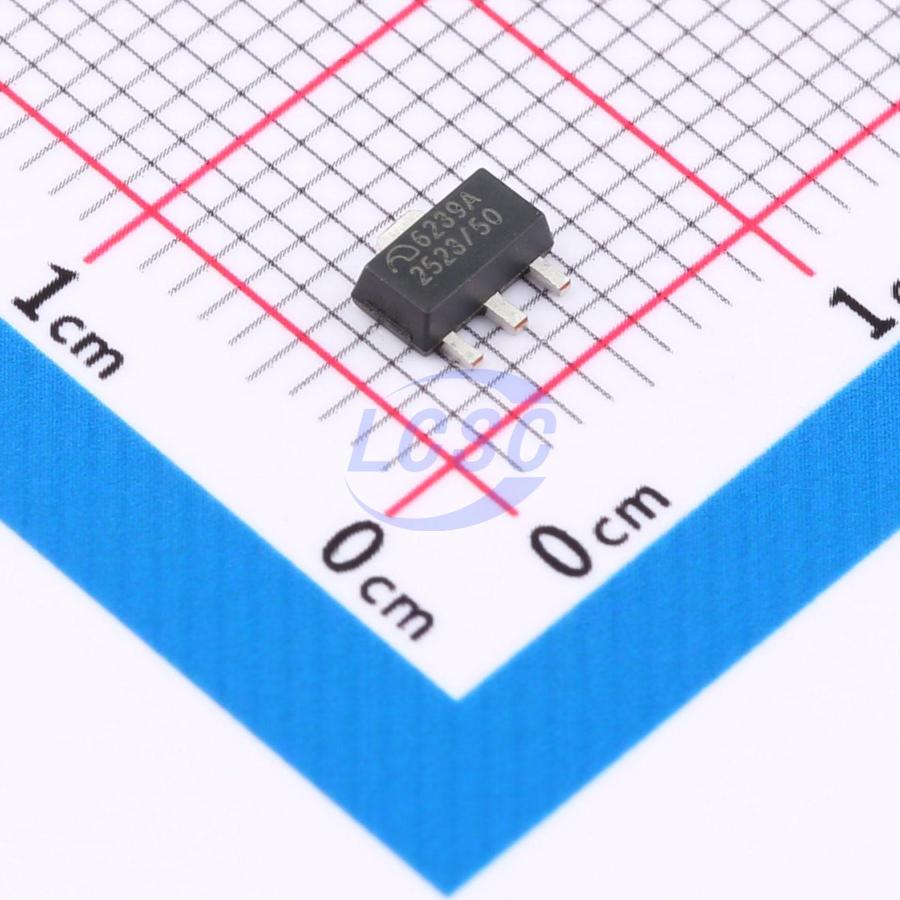

ME6239A50PG
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
250mA, 30V Vin, Output overshoot control LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6239A50PG
- Store part #
- C610254
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,545 in stock
#C610254
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.42 | ₹67.10 |
| 50+ | ₹10.74 | ₹537.00 |
| 150+ | ₹9.41 | ₹1,411.50 |
| 1,000+ | ₹7.65 | ₹7,650.00 |
| 2,000+ | ₹6.84 | ₹13,680.00 |
| 5,000+ | ₹6.44 | ₹32,200.00 |
5 × ₹13.42
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6239A50PG
₹67.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 30V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.091 g
Overview
ME6239 series are low-dropout linear voltage regulators with a built-in voltage reference module, error amplifier module and feedback resistance network. ME6239 can deliver 250mA output current and allow an input voltage as high as 30V. This series has the function of internal feedback resistor setting from 1.5V to 12V.
Applications
- Electronic weighbridge
- Water meters, power meters
- Plaything
- Phones, cordless phones
Key features
- High output accuracy：± 1% Output voltage overshoot control
- Input voltage：up to 30V
- Output voltage：1.5V ~ 12V
- Ultra-low quiescent current (Typ. = 1.5μA)
- Output Current：|OUT = 250mA （When VIN = 6.5V and VOUT = 5.0V）
- Short-circuit Current：(Typ. = 42mA)
- Low temperature coefficient
- Ceramic capacitor can be used
