MICRONEDatasheet (PDF)

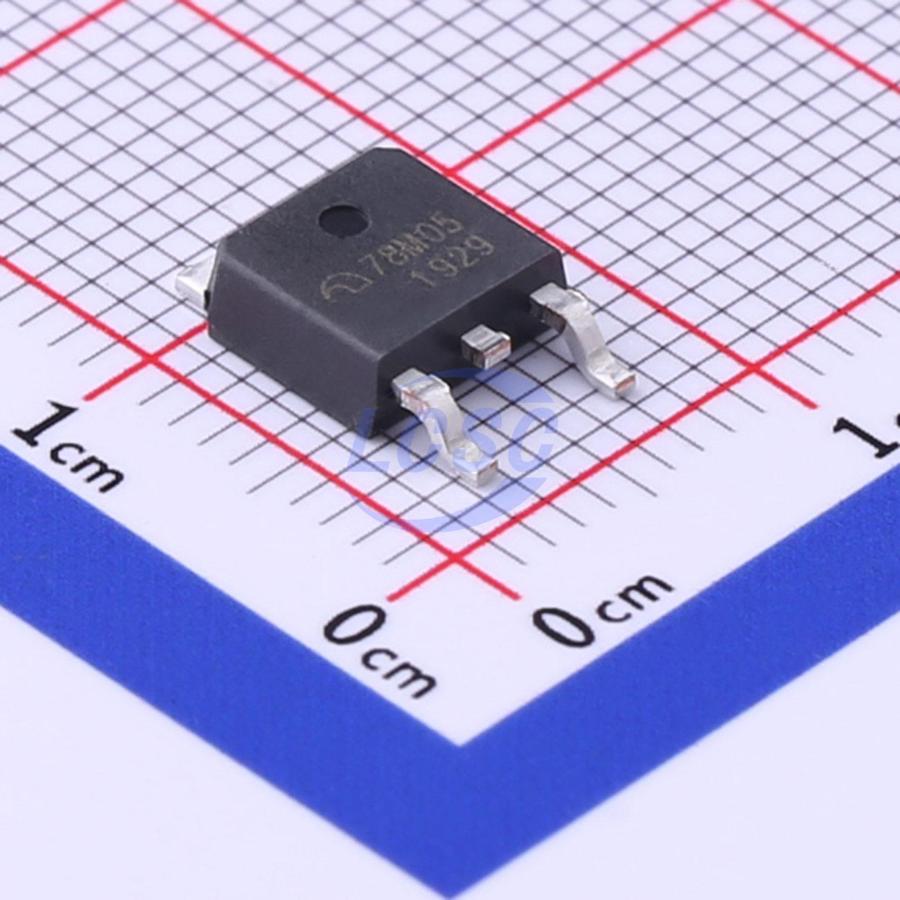

ME78M05K3G
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2(DPAK)RoHSActive
3-Terminal 0.5A Positive Voltage Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME78M05K3G
- Store part #
- C83969
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C83969
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.52 | ₹62.60 |
| 50+ | ₹10.00 | ₹500.00 |
| 150+ | ₹8.75 | ₹1,312.50 |
| 500+ | ₹7.81 | ₹3,905.00 |
| 2,500+ | ₹6.52 | ₹16,300.00 |
| 5,000+ | ₹6.15 | ₹30,750.00 |
5 × ₹12.52
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ME78M05K3G
₹62.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
ME78M05 is designed with Thermal Overload Protection that shuts down the circuit when subjected to an excessive power overload condition, Internal Short Circuit Protection that limits the maximum current the circuit will pass, and Output Transistor Safe - Area Compensation that reduces the output short circuit current as the voltage across the pass transistor is increased.
Key features
- Internal current limiting, thermal shutdown circuitry and safe - area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions.
- Maximum output current, with adequate heat - sinking is 500 mA.
- Output Current up to 0.5A
- Output Voltages of 5V
- Thermal Overload Protection
- Short Circuit Protection
- Package：TO252
