MICRONE

ME8115FD7G

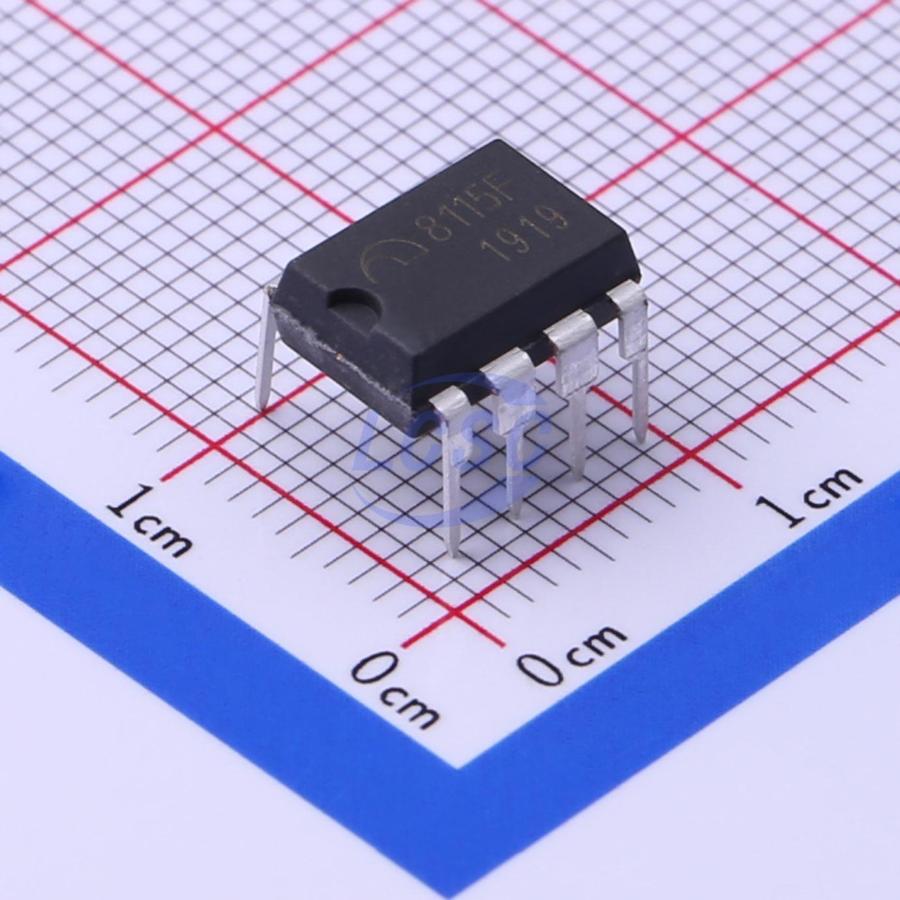

Converter Offline Flyback Topology 52kHz~66kHz DIP-7

DIP-7RoHSActive

High-performance current-mode PWM switching power supply controller

Manufacturer: MICRONE
Manufacturer part #: ME8115FD7G
Store part #: C427575
Package / case: DIP-7
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,160 in stock

#C427575

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹20.04	₹100.20
50+	₹15.27	₹763.50
150+	₹13.23	₹1,984.50
500+	₹11.71	₹5,855.00
2,000+	₹10.49	₹20,980.00
5,000+	₹9.88	₹49,400.00

Quantity (min 5, multiples of 5)

5 × ₹20.04

₹100.20

excl. GST

₹118.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

ME8115FD7G

₹100.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+100℃
Frequency - Switching: 52kHz~66kHz
Pd - Power Dissipation: 1000mW
Voltage - Breakdown: 700V
Voltage - Supply: 4.3V~9V
Topology: Flyback
Features: High voltage direct start;Light load efficient mode;Adjustable current limiting;Leading edge blanking;Under-voltage lockout;Over Voltage Protection;Under Voltage Protection;Short Circuit Protection;Over Current Protection;Overtemperature protection (OTP)
Duty Cycle(Max): 61%
Feedback System: Secondary-Side Feedback
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.72 g

Overview

High-performance current-mode PWM controller designed for cost-effective AC/DC converters, delivering up to 12W (18W for ME8115B) continuous output power across a wide input voltage range of 85–265V, with peak output power up to 18W. An optimized high-integration circuit design combined with a cost-effective bipolar process minimizes overall product cost. This power controller operates in a typical flyback topology to form a compact AC/DC converter. The internal startup circuit employs a unique current-sinking approach that utilizes the amplification of the power switch transistor itself to complete startup (Ic-to-Ib amplification of the switching transistor), significantly reducing power dissipation in the startup resistor. At lower output power levels, the IC automatically reduces its operating frequency to achieve ultra-low standby power consumption. When VCC reaches 10V, the internal OVP activates to clamp the output voltage, preventing excessive output voltage rise caused by optocoupler or feedback circuit failure. The IC also provides comprehensive overcurrent protection and anti-saturation functions to guard in real time against abnormal conditions such as overload, transformer saturation, and output short circuits, enhancing power supply reliability. An integrated thermal protection function with hysteresis shuts down the output when the chip overheats. The current limit can be set via external resistor Rs.

Applications

Power adapters
Portable device charging power supplies
DVD/DVB power supplies
Battery chargers
ATX standby power supplies

Key features

Built-in 700V high-voltage power switch
Built-in high-voltage startup current source for fast startup
Built-in energy efficiency control, standby power below 0.1W
Built-in OVP, UVP, and short-circuit protection
Built-in overload and over-temperature protection
Precise temperature compensation and accurate cycle-by-cycle current control
Low startup current and low operating current
Adaptive frequency hopping design, low EMI
High conversion efficiency, meets Energy Star 2.0 requirements
Wide-voltage output power: 12W (ME8115B: 18W), peak output power 15W (ME8115B: 20W)
High-voltage output power: 15W (ME8115B: 20W), peak output 18W (ME8115B: 22W)
Minimal external components, low system cost
