MICRONE

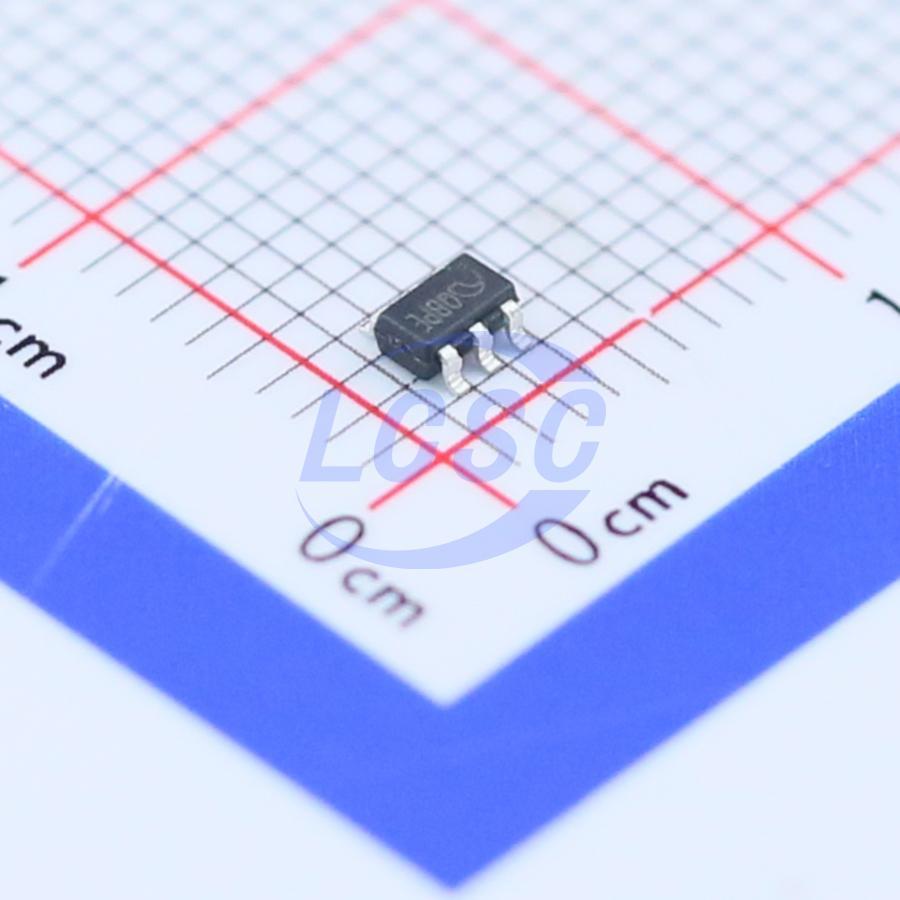

ME8204BM6G

60kHz~70kHz 10V~30V Flyback SOT-23-6 AC DC Converters, Offline Switchers

SOT-23-6RoHSActive

Current Mode PWM Controller With Frequency Shuffling

Manufacturer: MICRONE
Manufacturer part #: ME8204BM6G
Store part #: C107691
Package / case: SOT-23-6
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,650 in stock

#C107691

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.63	₹93.15
50+	₹14.75	₹737.50
150+	₹12.81	₹1,921.50
500+	₹11.36	₹5,680.00
3,000+	₹9.79	₹29,370.00
6,000+	₹9.21	₹55,260.00

Quantity (min 5, multiples of 5)

5 × ₹18.63

₹93.15

excl. GST

₹109.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME8204BM6G

₹93.15 for 5 + GST

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 60kHz~70kHz
Voltage - Supply: 10V~30V
Topology: Flyback
Features: Light load efficient mode;EMI optimization (spread spectrum);Audio noise elimination;Leading edge blanking;Slope compensation;Under-voltage lockout;Overtemperature protection (OTP);Over Voltage Protection;Under Voltage Protection
Duty Cycle(Max): 80%
Feedback System: Secondary-Side Feedback
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.055 g

Overview

ME8204 is a highly integrated current mode PWM control IC optimized for high performance, low standby power (<100mW) and cost effective offline flyback converter applications in 40W~60W range. ME8204 offers complete protection coverage with automatic self-recovery feature including Cycle-by-Cycle current limiting (OCP), CS short protection, over load protection (OLP), and VDD under voltage lockout (UVLO) and latch feature including over temperature protection (OTP), over voltage (fixed or adjustable) protection(OVP). Excellent EMI performance is achieved with frequency shuffling technique together with soft switching control at the totem pole gate drive output. Tone energy at below 20KHz is minimized in the design and audio noise is eliminated during operation.

Applications

AC/DC adapter
PDA power supplies
Digital cameras and camcorder adapter
VCR, SVR, STB, DVD&DVCD player SMPS
Set-top box power
Auxiliary power supply for PC and server
Open-frame SMPS

Key features

Power on Soft Start Reducing MOSFET VDS Stress
Frequency shuffling for EMI
Audio Noise Free Operation
Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design
Internal Synchronized Slope Compensation
Fixed 65KHz Switching Frequency (8204, 8204B)
Fixed 100KHz Switching Frequency (8204C)
Good protection coverage with auto self-recovery
VDD Under Voltage Lockout with Hysteresis (UVLO)
Over Temperature Protection (OTP) with latch shut down(8204) or auto-recovery(8204B,8204C)
Cycle-by-cycle over current threshold setting for constant output power limiting over universal input voltage range
Overload Protection (OLP) with auto-recovery
VDD Over voltage Protection(OVP) with latch shut down(8204) or auto-recovery(8204B.8204C)
Adjustable OVP through external Zener
CS floating protection with auto-recovery
CS short protection with auto-recovery
