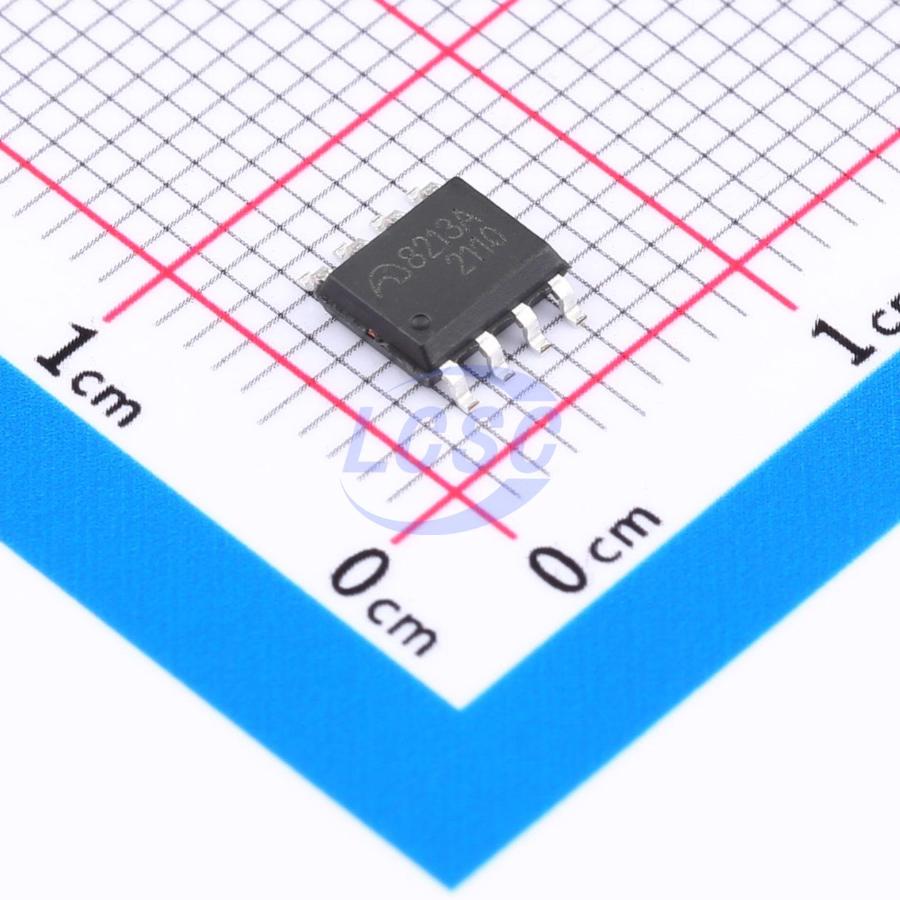

MICRONE

ME8213ASG

0.92W 700V 9V~60V Flyback SOP-8 AC DC Converters, Offline Switchers

SOP-8RoHSActive

High-performance current-mode quasi-resonant controller

Manufacturer: MICRONE
Manufacturer part #: ME8213ASG
Store part #: C2983836
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,205 in stock

#C2983836

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
5+	₹29.33	₹146.65
50+	₹25.36	₹1,268.00
150+	₹23.66	₹3,549.00
500+	₹21.54	₹10,770.00
3,000+	₹20.60	₹61,800.00
6,000+	₹20.03	₹1,20,180.00

Quantity (min 5, multiples of 5)

5 × ₹29.33

₹146.65

excl. GST

₹173.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME8213ASG

₹146.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Pd - Power Dissipation: 0.92W
Voltage - Breakdown: 700V
Voltage - Supply: 9V~60V
Topology: Flyback
Features: Soft-start;Over Voltage Protection;Over Current Protection;Overtemperature protection (OTP);Under Voltage Protection
Feedback System: Secondary-Side Feedback
Working Mode: QR

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.207 g

Overview

ME8213 is a current-mode quasi-resonant (QR) controller that ensures valley voltage switching across a wide range of load and input voltage variations. The primary peak current determines the output off-time, and the power switch turn-on time is triggered by the transformer valley detection circuit. In addition, ME8213 integrates a high-voltage startup function to effectively reduce standby power consumption.

Applications

Adapter
PD Charger
Open Frame Power Supply

Key features

Up to 100W output power over wide input voltage range of 85V~265V
High-voltage startup design with post-startup shutdown to reduce standby power consumption
Frequency reduction at light load, burst mode at lighter load, standby power consumption <30mW across full input voltage range
Comprehensive protection features including OCP, OLP, UVLO, OVP, OTP, etc.
Soft-start
Noise reduction
Light-load burst mode
Over-power compensation
Leading-edge blanking
X-capacitor discharge
