MICRONEDatasheet (PDF)

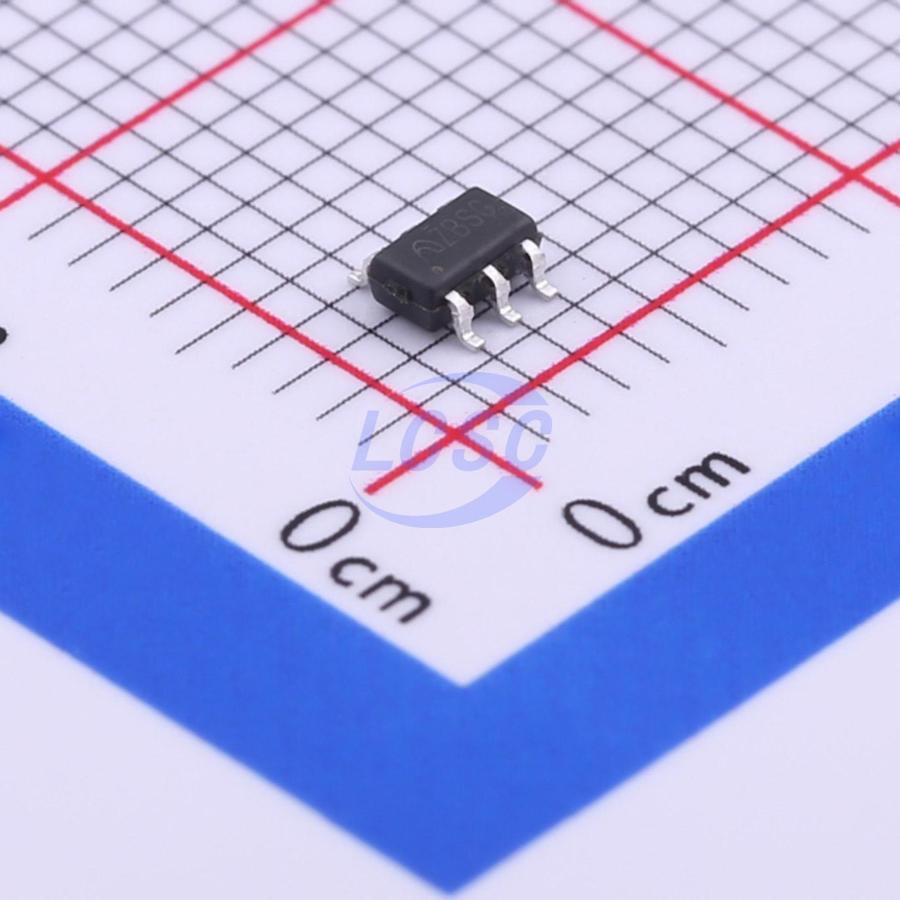

ME8320AM6G-N
Converter Offline 120kHz SOT-23-6
SOT-23-6RoHSActive
Primary-side feedback constant voltage and constant current controller
- Manufacturer
- MICRONE
- Manufacturer part #
- ME8320AM6G-N
- Store part #
- C427579
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C427579
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.53 | ₹97.65 |
| 50+ | ₹15.73 | ₹786.50 |
| 150+ | ₹13.84 | ₹2,076.00 |
| 500+ | ₹12.41 | ₹6,205.00 |
| 3,000+ | ₹9.86 | ₹29,580.00 |
| 6,000+ | ₹9.29 | ₹55,740.00 |
5 × ₹19.53
₹97.65
excl. GST
₹115.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME8320AM6G-N
₹97.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Pd - Power Dissipation
- 0.63W
- Voltage - Supply
- 10V~20V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Under Voltage Protection
- Working Mode
- QR
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
ME8320-N is a high-performance, highly integrated quasi-resonant mode and primary-side feedback controller designed for off-line low-power converter applications. It features high efficiency and low EMI, easily meeting the EPS Level 6 energy efficiency standard. This IC also incorporates cable voltage drop compensation for excellent constant-voltage performance. The ME8320-N integrates multiple functions and protection mechanisms, including UVLO, VDD OVP, output OVP, soft-start, cycle-by-cycle current limiting, all-pin-floating protection, gate clamping, and VDD clamping.
Applications
- Battery chargers for mobile phones, cordless phones, PDAs, digital cameras, and similar devices
- Replacement for linear transformers and RCC switching power supplies
- Low-power adapters
- AC/DC LED lighting
Key features
- Easy compliance with Energy Star EPS6.0 standard
- Valley-switching conduction for improved efficiency
- ±5% CC/CV regulation accuracy over universal AC input
- Standby power consumption below 60mW
- Proprietary cable drop compensation
- Cycle-by-cycle current limiting
- Built-in leading-edge blanking
- Floating pin protection on all pins
- Built-in soft-start function
- Output overvoltage protection
- VDD overvoltage protection and clamping
- VDD undervoltage lockout
- Audio noise suppression
- Available in SOT23-6 package
