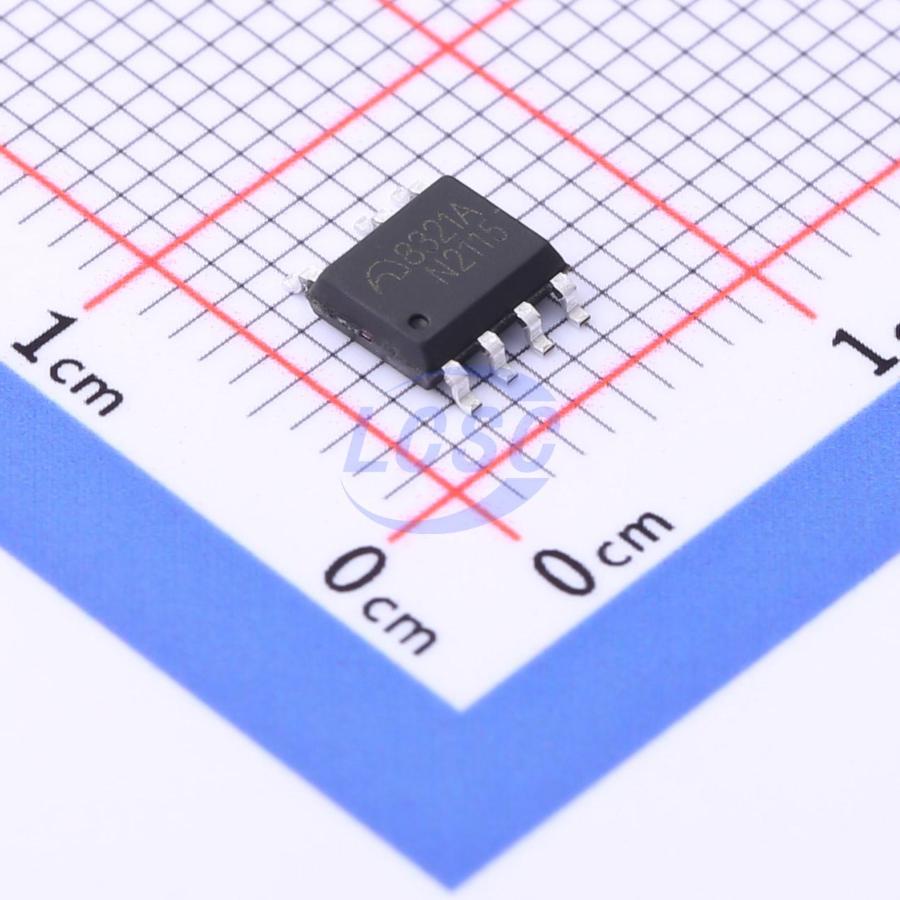

ME8321AS7G-N
Converter Offline 120kHz SOP-7
SOP-7RoHSActive
Primary-side feedback constant voltage and constant current controller
- Manufacturer
- MICRONE
- Manufacturer part #
- ME8321AS7G-N
- Store part #
- C526188
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,005 in stock
#C526188
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.80 | ₹154.00 |
| 50+ | ₹24.29 | ₹1,214.50 |
| 150+ | ₹21.50 | ₹3,225.00 |
| 500+ | ₹18.02 | ₹9,010.00 |
| 3,000+ | ₹15.15 | ₹45,450.00 |
| 6,000+ | ₹14.22 | ₹85,320.00 |
5 × ₹30.80
₹154.00
excl. GST
₹181.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME8321AS7G-N
₹154.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Voltage - Breakdown
- 650V
- Voltage - Supply
- 10V~30V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Working Mode
- QR
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.205 g
Overview
ME8321 is a small-power AC/DC controller with primary-side feedback quasi-resonant mode, compliant with Level VI energy efficiency standards. It integrates an internal 650V high-voltage power MOSFET, suitable for chargers, adapters, and LED driver applications. It achieves ±5% CC/CV accuracy and standby power consumption below 100mW. In CV mode, a built-in line voltage compensation function is included. Quasi-resonant control is adopted to achieve high efficiency and good EMI performance, meeting Level VI energy efficiency requirements. The IC integrates comprehensive protection features, including: VDD undervoltage lockout (UVLO), VDD overvoltage protection, soft-start, cycle-by-cycle overcurrent protection, all-pin floating protection, built-in leading-edge blanking, VDD voltage clamp protection, and over-temperature protection.
Applications
- Charger
- Adapter
- LED Lighting
Key features
- Meets Level VI energy efficiency requirements
- Primary-side regulation (PSR) quasi-resonant (QR) control for high efficiency; no optocoupler or TL431 required
- ±5% CV/CC accuracy
- Standby power consumption < 100mW
- Integrated 650V high-voltage MOSFET
- Built-in cable drop compensation in CV mode
- Integrated soft-start
- Floating pin protection on all pins
- Output OVP
- Cycle-by-cycle current limiting
- Integrated leading edge blanking
- VDD UVLO, OVP, and clamping
- OTP
