MICRONEDatasheet (PDF)

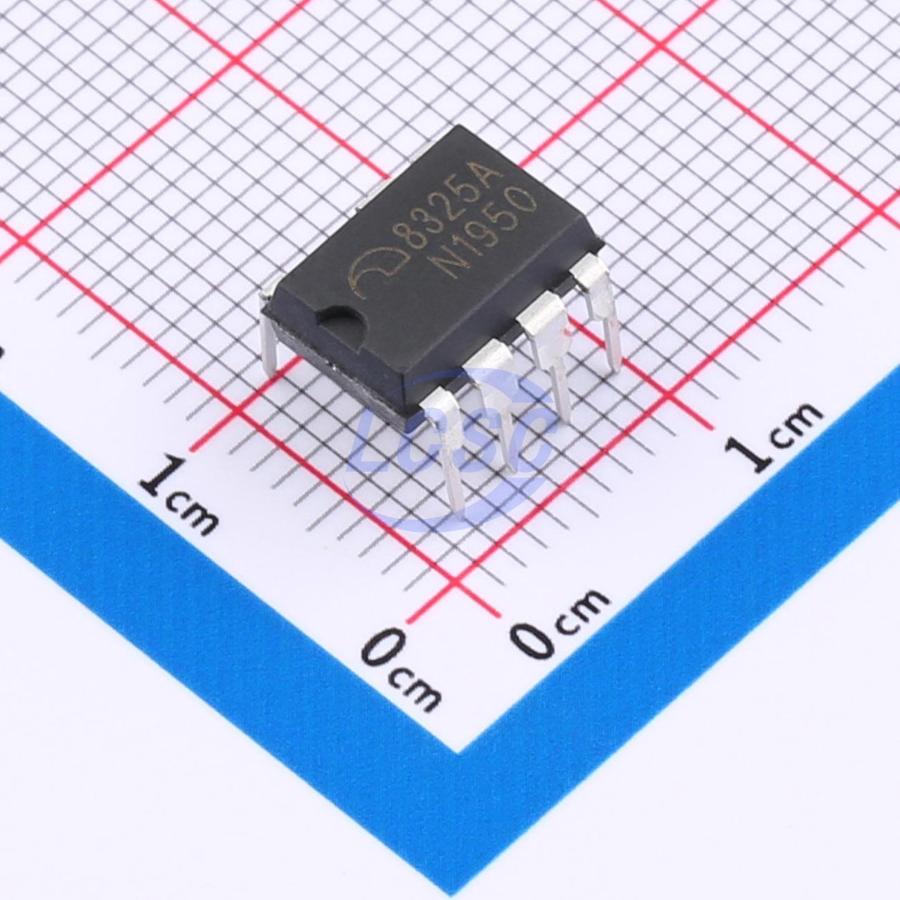

ME8325AD7G-N
Converter Offline 120kHz DIP-7
DIP-7RoHSActive
Primary-side feedback constant voltage and constant current controller
- Manufacturer
- MICRONE
- Manufacturer part #
- ME8325AD7G-N
- Store part #
- C2927390
- Package / case
- DIP-7
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2927390
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.28 | ₹56.28 |
| 10+ | ₹44.12 | ₹441.20 |
| 50+ | ₹38.90 | ₹1,945.00 |
| 100+ | ₹32.60 | ₹3,260.00 |
| 500+ | ₹29.78 | ₹14,890.00 |
| 1,000+ | ₹28.03 | ₹28,030.00 |
1 × ₹56.28
₹56.28
excl. GST
₹66.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
ME8325AD7G-N
₹56.28 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Pd - Power Dissipation
- 1.69W
- Voltage - Breakdown
- 650V
- Voltage - Supply
- 10V~30V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Working Mode
- QR
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
ME8325-N is a small-power AC/DC controller with primary-side feedback quasi-resonant mode, meeting Level VI energy efficiency standards. It integrates an internal 650V/2A high-voltage power MOSFET, supports up to 15W maximum power, and is designed for chargers, adapters, and LED driver applications. It achieves ±5% CV/CC accuracy and standby power consumption below 60mW. In CV mode, a built-in line voltage compensation function is included. Quasi-resonant control delivers high efficiency and excellent EMI performance, meeting Level VI energy efficiency requirements. The chip integrates comprehensive protection features, including: VDD under-voltage lockout (UVLO), VDD over-voltage protection, soft-start, cycle-by-cycle over-current protection, all-pin floating protection, built-in leading-edge blanking, VDD voltage clamp protection, and over-temperature protection.
Applications
- Charger
- Adapter
- LED Lighting
Key features
- Primary-side feedback (PSR) quasi-resonant (QR) control for high efficiency; no optocoupler or ME431 required
- ±5% CV/CC accuracy
- Standby power consumption < 60mW
- Integrated 650V high-voltage power MOSFET
- Maximum power 15W
- Built-in cable drop compensation in CV mode
- Integrated soft-start
- All-pin floating protection
- Output overvoltage protection
- Cycle-by-cycle current limiting
- Integrated leading edge blanking
- VDD UVLO, overvoltage protection and clamping
- Overtemperature protection
