MICRONEDatasheet (PDF)

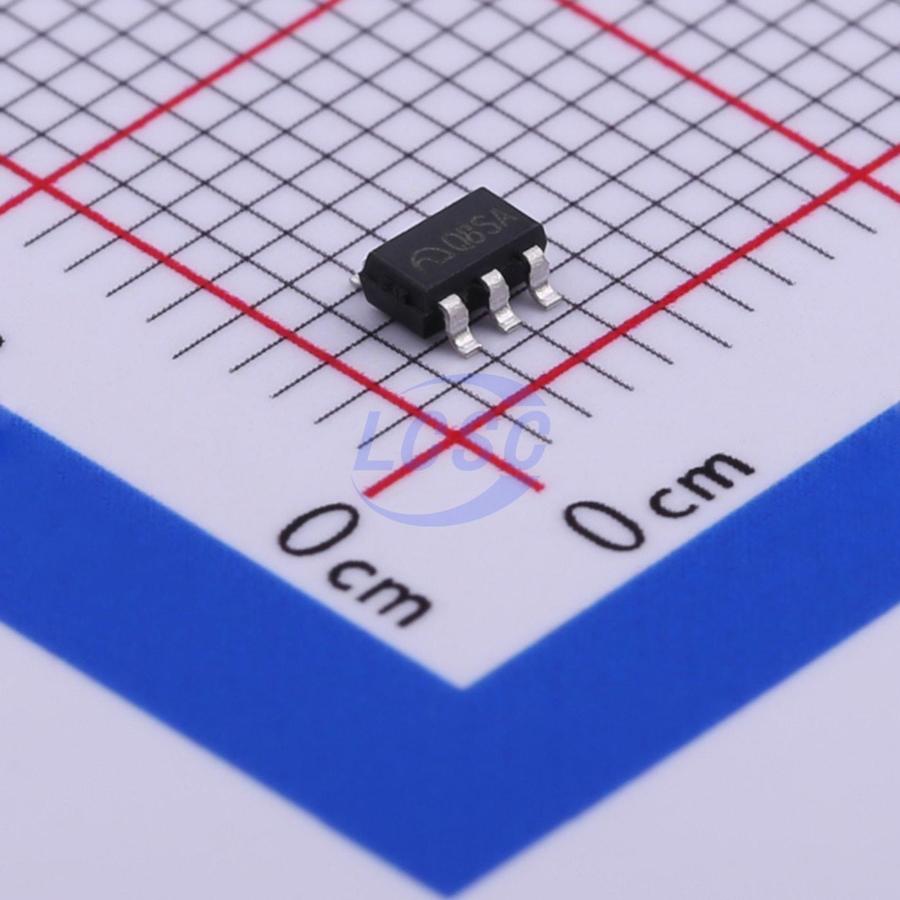

ME8415AM5G
Converter Offline Flyback Topology SOT-23-5
SOT-23-5RoHSActive
AC-DC synchronous rectification controller
- Manufacturer
- MICRONE
- Manufacturer part #
- ME8415AM5G
- Store part #
- C427582
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,825 in stock
#C427582
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.88 | ₹104.40 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.47 | ₹2,170.50 |
| 500+ | ₹12.08 | ₹6,040.00 |
| 3,000+ | ₹11.01 | ₹33,030.00 |
| 6,000+ | ₹10.37 | ₹62,220.00 |
5 × ₹20.88
₹104.40
excl. GST
₹123.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME8415AM5G
₹104.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 600mW
- Voltage - Supply
- 5V~20V
- Topology
- Flyback
- Features
- Over Voltage Protection;Overtemperature protection (OTP);Under Voltage Protection
- Feedback System
- Secondary-Side Feedback
- Working Mode
- CCM;DCM;QR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The ME8415 is an AC-DC secondary-side synchronous rectification controller IC. It supports an operating voltage range of 5~20V and is compatible with CCM, DCM, and QR operating modes. The chip employs innovative adaptive dead-time control technology to effectively prevent cross conduction. An intelligent synchronous turn-on condition detection technique is implemented to reliably prevent the synchronous rectifier from turning on in the ringing region under DCM mode. The IC also integrates OTP, UVLO, and OVP functions. The chip comes in a compact SOT23-5 package.
Applications
- Flyback synchronous rectification control with 5~20V output
- Chargers and adapters
- Flyback controller
Key features
- Adaptive dead-time control
- Intelligent synchronous turn-on condition detection
- Compatible with CCM, DCM, QR operating modes
- VDD voltage range: 5~20V
- Dead-time too short protection
- Light-load mode for reduced power consumption
- Passes HBM 3000V, CDM 1000V
