MICRONEDatasheet (PDF)

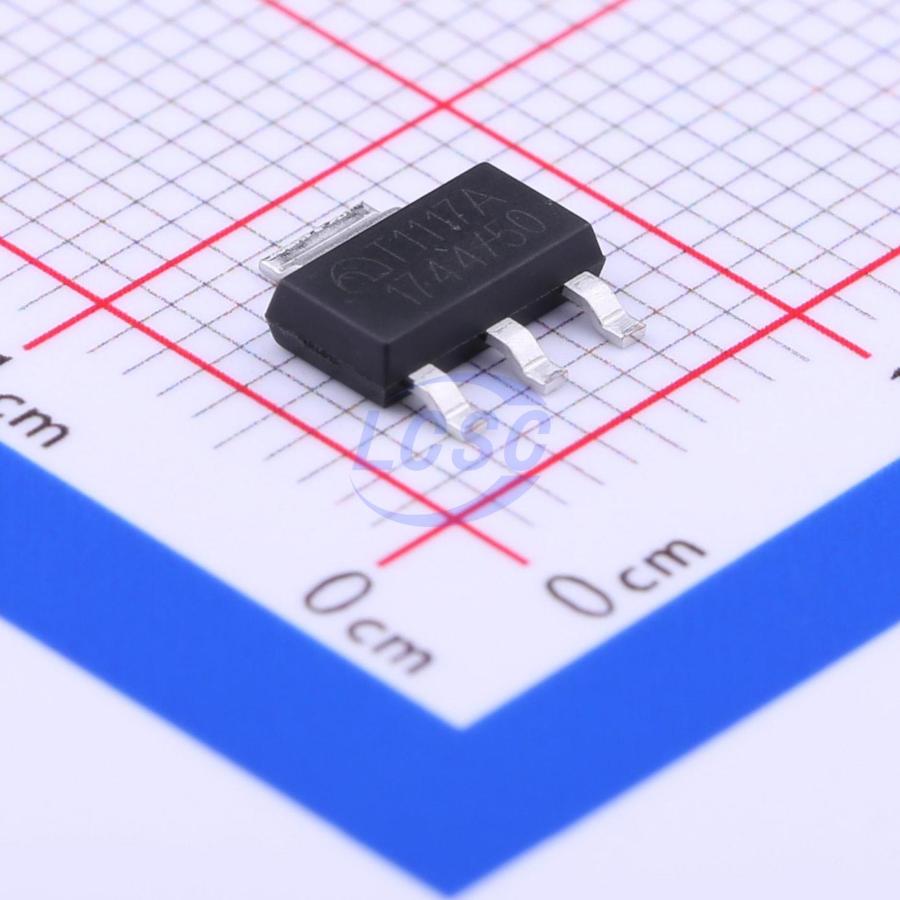

MET1117A50B3G
Linear Voltage Regulator IC Positive Fixed 1 Output 700mA SOT-223-4
SOT-223-4RoHSActive
High-precision and low-noise LDO regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- MET1117A50B3G
- Store part #
- C83973
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,380 in stock
#C83973
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.13 | ₹71.30 |
| 100+ | ₹5.57 | ₹557.00 |
| 300+ | ₹4.79 | ₹1,437.00 |
| 3,000+ | ₹4.19 | ₹12,570.00 |
| 6,000+ | ₹3.73 | ₹22,380.00 |
| 9,000+ | ₹3.49 | ₹31,410.00 |
10 × ₹7.13
₹71.30
excl. GST
₹84.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MET1117A50B3G
₹71.30 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3.5mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 700mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.24 g
Overview
The MET1117 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 700mA with a maximum dropout voltage of 1.5 V at 700mA. This series contains six fixed output voltages of 1.2V, 1.8V, 2.5V, 3.3V, and 5.0 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 20 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±2.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The MET1117 series can operate with up to 20 V input. Devices are available in SOT223, TO252 - 2L.
Applications
- Consumer and Industrial Equipment
- Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
- Battery Chargers
Key features
- Output Current in Excess of 700mA
- Dropout Voltage: 1.08V@IOUT = 100mA
- Operating Voltage Range: 4.8V ~ 20V （MET1117A33）
- Highly Accuracy: ±2%
- Adjustable Output Voltage Option
- Standby Current: 3.5mA （TPY.）
- High Ripple Rejection: 60dB@1KHz （MET1117A33）
- Line Regulation: 2mV（TYP.）
- Temperature Stability ≲0.5%
- Current Limit（850mA）
- Thermal Shutdown Protection（160°C）
- Small Packages: SOT223、TO252 - 2L
