EATONDatasheet (PDF)

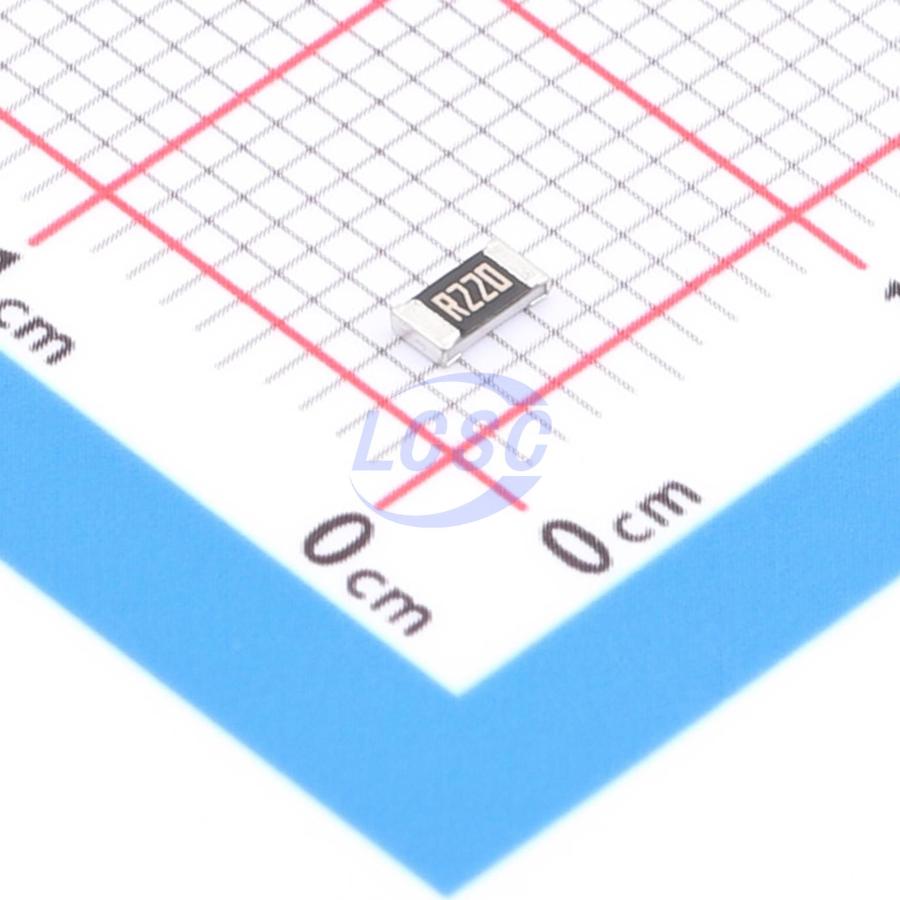

MFHA1206R2200FC
1W 220mΩ Metal Film Resistor ±1% ±100ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
- Manufacturer
- EATON
- Manufacturer part #
- MFHA1206R2200FC
- Store part #
- C6989463
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C6989463
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.74 | ₹143.70 |
| 50+ | ₹23.06 | ₹1,153.00 |
| 150+ | ₹20.61 | ₹3,091.50 |
| 500+ | ₹17.58 | ₹8,790.00 |
| 2,500+ | ₹16.22 | ₹40,550.00 |
| 5,000+ | ₹15.41 | ₹77,050.00 |
5 × ₹28.74
₹143.70
excl. GST
₹169.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MFHA1206R2200FC
₹143.70 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 220mΩ
- Type
- Metal Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±100ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.093 g
Overview
Applications
- Switching Mode Power Supply (SMPS)
- Voltage Regulation Modules
- Power Management
- Stepper Motor Drives
Key features
- Low sense resistance
- Package sizes from 1206 (3216 metric) to 2512 (6432 metric)
- High power dissipation
- AEC-Q200 compliant
- Moisture Sensitivity Level (MSL): 1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HoJLRH1206-1W-220mR-1%#C46594295Milliohm · 1206 | Milliohm | 1206 | 10,400 | ₹7.54 · 10,400 in stock | View |
| CSRT1206FTR220#C7116009SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | On request | Price on request | Quote | |
| SMK-R220-1.0#C5755499Isabellenhuette · 1206 | Isabellenhuette | 1206 | On request | ₹216.72 · 0 in stock | View | |
| VMK-R220-1.0-U#C7112832Isabellenhuette · 1206 | Isabellenhuette | 1206 | On request | ₹167.41 · 0 in stock | View | |
