MegainDatasheet (PDF)

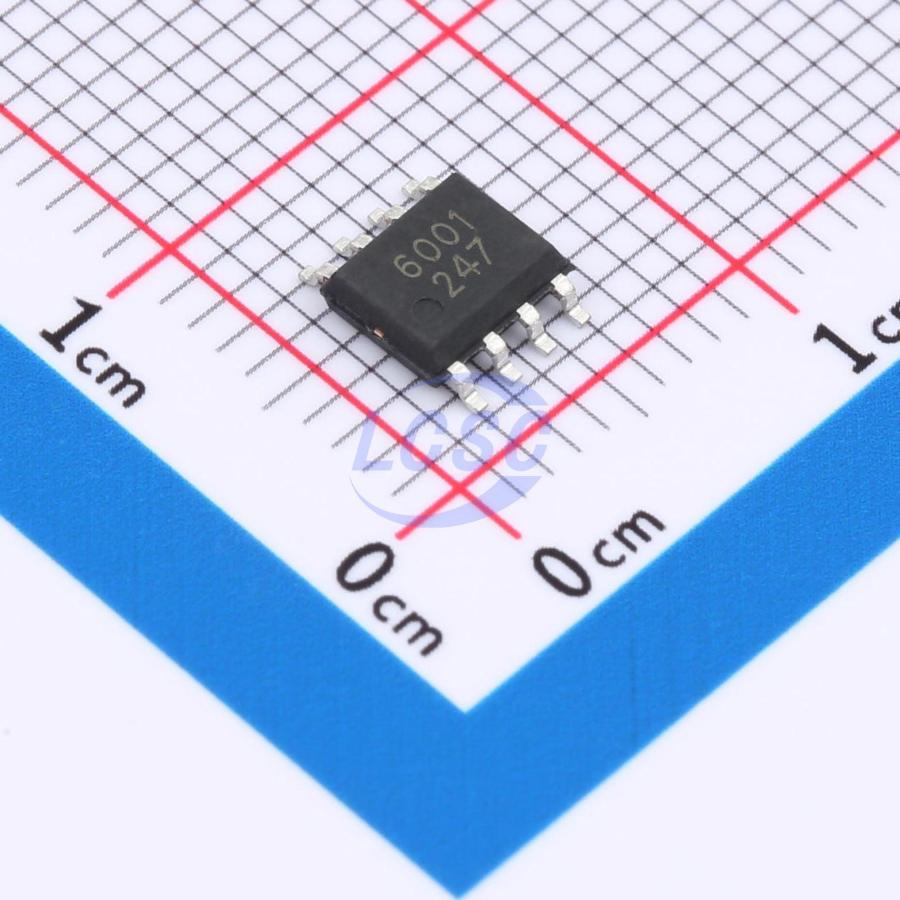

MG6001S8-AJ
Linear Voltage Regulator IC Positive Adjustable 1 Output 50mA ESOP-8
ESOP-8ROHS CompliantActive
Ultra-high voltage low-dropout linear regulator
- Manufacturer
- Megain
- Manufacturer part #
- MG6001S8-AJ
- Store part #
- C22396259
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,370 in stock
#C22396259
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.48 | ₹182.40 |
| 50+ | ₹28.81 | ₹1,440.50 |
| 150+ | ₹25.53 | ₹3,829.50 |
| 500+ | ₹21.43 | ₹10,715.00 |
| 2,500+ | ₹19.61 | ₹49,025.00 |
| 4,000+ | ₹18.52 | ₹74,080.00 |
5 × ₹36.48
₹182.40
excl. GST
₹215.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MG6001S8-AJ
₹182.40 for 5 + GST
Specifications
- Output Voltage
- 1.2V~50V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 23uA
- Output Configuration
- Positive
- Operating Voltage
- 100V
- Output Current
- 50mA
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
MG6001 is a linear regulator capable of withstanding ultra-high voltages. It combines the advantages of a thermally enhanced package while sustaining continuous DC voltages or transient input voltages up to 100V. The MG6001 remains stable with any output capacitor greater than 2.2μF and any input capacitor greater than 0.47μF (with overtemperature and surge protection). Given the device's compact package and the potentially small output capacitors required, implementation demands very little board space. Additionally, it features an enable pin (EN) compatible with standard CMOS logic for activating a low-current shutdown mode.
Applications
- Microprocessors and microcontrollers powered by industrial buses (with high-voltage transients)
- Industrial automation (BMS, robotics, etc.)
- Telecom infrastructure
- Automotive electronics
- Power over Ethernet (PoE)
- LED lighting
- Bias power supply
Key features
- ±1.5% output voltage tolerance over full temperature range
- VIN up to 100V
- Adjustable output voltage range
- Low quiescent current 23μA
- Quiescent current in shutdown 8μA
- 3V dropout voltage at 50mA output current
- Internal thermal overload protection
- Internal current limiting protection
