MegainDatasheet (PDF)

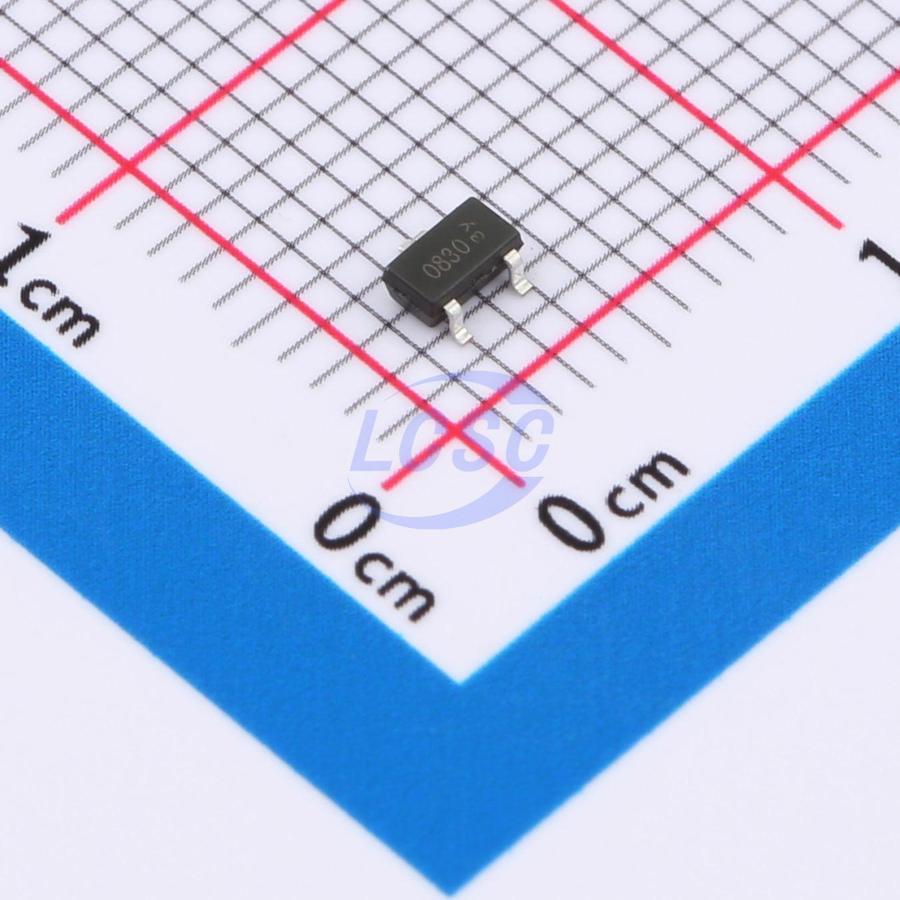

MG6208T3-30
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-3
SOT-23-3ROHS CompliantActive
24V, 150mA, 1.5μA Low Dropout (LDO) Linear Regulator
- Manufacturer
- Megain
- Manufacturer part #
- MG6208T3-30
- Store part #
- C22395364
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,400 in stock
#C22395364
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.63 | ₹52.60 |
| 200+ | ₹2.30 | ₹460.00 |
| 600+ | ₹2.12 | ₹1,272.00 |
| 3,000+ | ₹2.01 | ₹6,030.00 |
| 9,000+ | ₹1.91 | ₹17,190.00 |
| 21,000+ | ₹1.85 | ₹38,850.00 |
20 × ₹2.63
₹52.60
excl. GST
₹62.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MG6208T3-30
₹52.60 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
MG6208 is a CMOS voltage regulator featuring high ripple rejection, low power consumption, low dropout voltage, and short-circuit protection. With a quiescent current as low as 1.5μA at no load, it delivers 150mA output current under minimal input-to-output voltage differential while maintaining excellent regulation performance, making it ideal for portable battery-powered products, metering, and security applications. The MG6208 retains all common LDO characteristics, including a low-dropout PMOS pass device, short-circuit protection, and thermal shutdown.
Applications
- Portable battery-powered devices (sensor lights, sterilization boxes, etc.)
- Security systems (fire alarms, smoke detectors, etc.)
- Smart meters (electricity meters, gas meters, etc.)
- Communication devices (mobile phones, PDAs, etc.)
- Home appliances (LED strips, fans, etc.)
- Wireless chargers, lithium battery protection boards
Key features
- Output voltage tolerance ±2% over full temperature range
- VIN up to 24V
- Ultra-low quiescent current 1.5uA
- 650mV dropout voltage at 100mA output current
- Internal thermal overload protection
- Internal current limiting protection
- Compatible with low ESR ceramic capacitors
