MegainDatasheet (PDF)

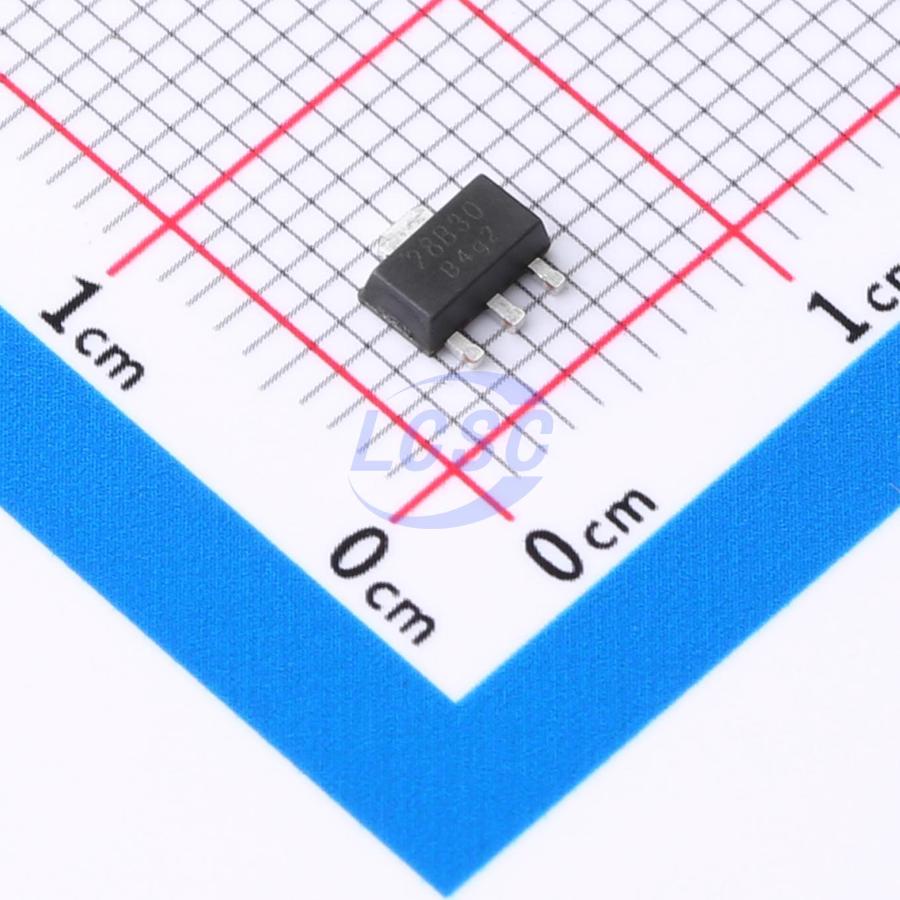

MG6228N3B-30
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 3V 500mA SOT-89-3
- Manufacturer
- Megain
- Manufacturer part #
- MG6228N3B-30
- Store part #
- C48678121
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,100 in stock
#C48678121
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.31 | ₹106.20 |
| 200+ | ₹4.14 | ₹828.00 |
| 1,000+ | ₹3.48 | ₹3,480.00 |
| 2,000+ | ₹3.10 | ₹6,200.00 |
| 10,000+ | ₹2.75 | ₹27,500.00 |
| 20,000+ | ₹2.58 | ₹51,600.00 |
20 × ₹5.31
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MG6228N3B-30
₹106.20 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.164 g
Overview
The MG6228 regulator features low dropout voltage, high power supply rejection ratio, and ultra-low standby current. It consumes only 0.5uA quiescent current under no-load conditions, making it ideal for MCU systems — particularly battery-powered portable devices and other applications requiring continuous power supply. The device integrates common LDO regulator functions, including low dropout operation via a PMOS pass transistor, short-circuit protection, and thermal shutdown protection. The MG6228 supports a maximum operating voltage of 6V, output voltage accuracy of ±2%, and selectable output voltages down to 1.8V. The device is available in multiple SMT packages: SOT89-3, SOT23-3, SOT23-5, and DFN1X1-4L.
Applications
- Portable battery-powered devices
- Ultra-low-power microcontrollers
- Laptop computers
Key features
- Input voltage range up to 6V
- Selectable output voltage range: 1.8V to 5V
- ±2% output voltage accuracy
- 500mA maximum output current
- 0.5uA ultra-low quiescent current
- 660mV dropout voltage at 500mA output current
- Internal thermal overload protection
- Internal short-circuit current limiting
- Compatible with low-ESR ceramic capacitors
- Active-high enable pin with automatic output capacitor discharge at shutdown
