MegainDatasheet (PDF)

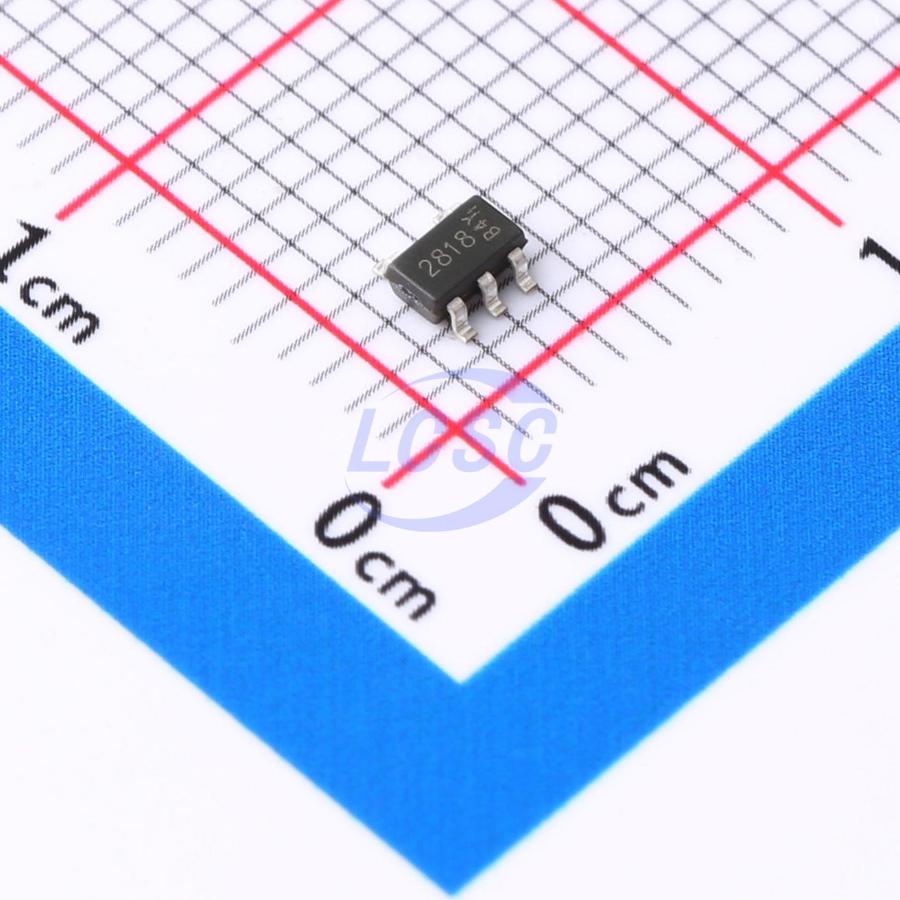

MG6228T5-18
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5ROHS CompliantActive
IC REG LINEAR 1.8V 500mA SOT-23-5
- Manufacturer
- Megain
- Manufacturer part #
- MG6228T5-18
- Store part #
- C48678114
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,700 in stock
#C48678114
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.93 | ₹78.60 |
| 200+ | ₹3.07 | ₹614.00 |
| 600+ | ₹2.61 | ₹1,566.00 |
| 3,000+ | ₹2.32 | ₹6,960.00 |
| 9,000+ | ₹2.06 | ₹18,540.00 |
| 21,000+ | ₹1.93 | ₹40,530.00 |
20 × ₹3.93
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MG6228T5-18
₹78.60 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
The MG6228 regulator features low dropout voltage, high power supply rejection ratio, and ultra-low standby current. It consumes only 0.5uA quiescent current under no-load conditions, making it ideal for MCU systems — particularly battery-powered portable devices and other applications requiring continuous power supply. The device integrates common LDO regulator functions, including low dropout operation via a PMOS pass transistor, short-circuit protection, and thermal shutdown protection. The MG6228 supports a maximum operating voltage of 6V, output voltage accuracy of ±2%, and selectable output voltages down to 1.8V. The device is available in multiple SMT packages: SOT89-3, SOT23-3, SOT23-5, and DFN1X1-4L.
Applications
- Portable battery-powered devices
- Ultra-low-power microcontrollers
- Laptop computers
Key features
- Input voltage range up to 6V
- Selectable output voltage range: 1.8V to 5V
- ±2% output voltage accuracy
- 500mA maximum output current
- 0.5uA ultra-low quiescent current
- 660mV dropout voltage at 500mA output current
- Internal thermal overload protection
- Internal short-circuit current limiting
- Compatible with low-ESR ceramic capacitors
- Active-high enable pin with automatic output capacitor discharge at shutdown
