Megain

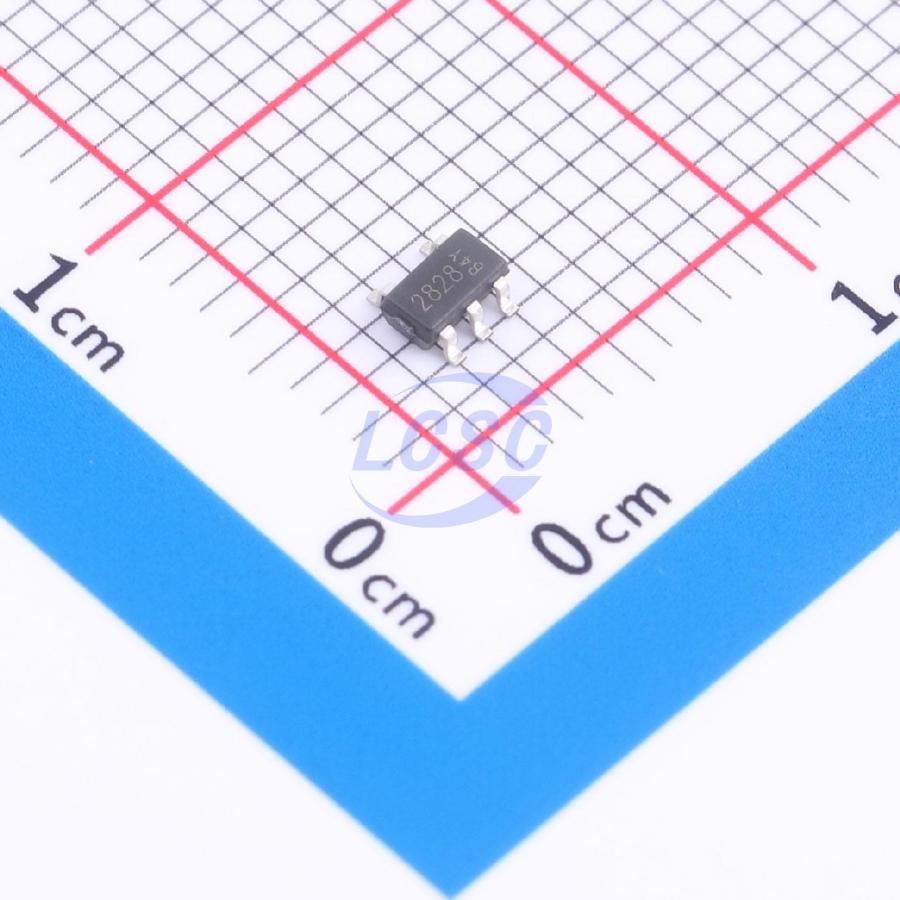

MG6228T5-28

2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

Manufacturer: Megain
Manufacturer part #: MG6228T5-28
Store part #: C54279895
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,600 in stock

#C54279895

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹3.93	₹78.60
200+	₹3.07	₹614.00
600+	₹2.61	₹1,566.00
3,000+	₹2.32	₹6,960.00
9,000+	₹2.06	₹18,540.00
21,000+	₹1.93	₹40,530.00

Quantity (min 20, multiples of 20)

20 × ₹3.93

₹78.60

excl. GST

₹92.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MG6228T5-28

₹78.60 for 20 + GST

Specifications

Output Voltage: 2.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 500nA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 6V
Output Type: Fixed
Features: Enable control;Output discharge;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.042 g

Overview

The MG6228 regulator features low dropout voltage, high PSRR, and ultra-low standby current. With a quiescent current as low as 0.5uA at no load, it is ideal for MCU systems, especially always-on applications such as portable and other battery-powered systems. The MG6228 retains all common LDO characteristics, including a low dropout PMOS pass device, short-circuit protection, and thermal shutdown. The MG6228 supports a maximum operating voltage of 6V and ±2% output voltage tolerance, with selectable output voltages as low as 1.8V. The MG6228 is available in SOT89-3, SOT23-3, SOT23-5, and DFN1X1-4L surface-mount packages.
