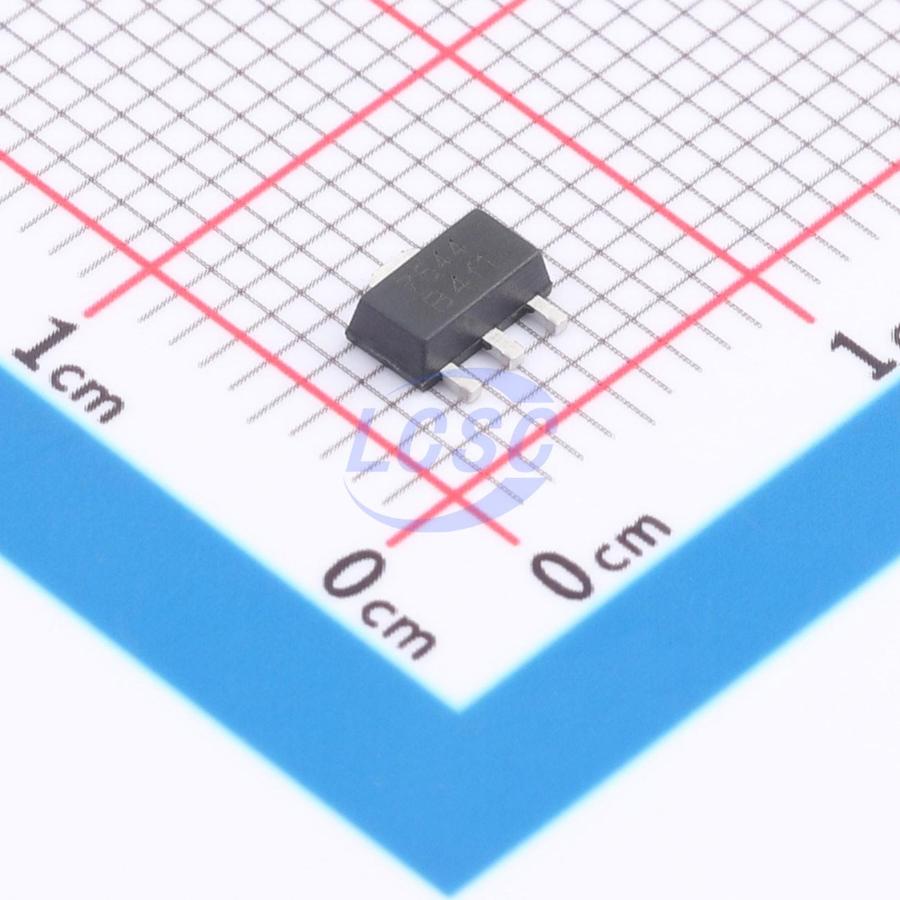

MG7544N3
4.4V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- Megain
- Manufacturer part #
- MG7544N3
- Store part #
- C50407976
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
700 in stock
#C50407976
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.13 | ₹102.60 |
| 200+ | ₹4.00 | ₹800.00 |
| 1,000+ | ₹3.37 | ₹3,370.00 |
| 2,000+ | ₹2.99 | ₹5,980.00 |
| 10,000+ | ₹2.67 | ₹26,700.00 |
| 20,000+ | ₹2.49 | ₹49,800.00 |
20 × ₹5.13
₹102.60
excl. GST
₹121.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MG7544N3
₹102.60 for 20 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 170mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 1 g
Overview
MG75xx is a CMOS voltage regulator featuring high ripple rejection, low quiescent current, low dropout voltage, and short-circuit protection. With a quiescent current as low as 1.2μA at no load, it delivers 170mA output current under minimal input-to-output voltage differential while maintaining excellent regulation performance. This makes it ideal for portable battery-powered products, metering equipment, and security applications. The MG75xx retains all common LDO characteristics, including a low-dropout PMOS pass device, short-circuit protection, and thermal shutdown.
Applications
- Portable battery-powered devices (e-cigarettes with displays, etc.)
- Consumer electronics (wireless chargers, PD cables, etc.)
- Communication devices (smartphones, PDAs, etc.)
- Home appliances, remote controls
- Power tools, Li-ion battery protection boards
Key features
- Output voltage tolerance ±2%
- VIN range up to 30V
- Ultra-low quiescent current 1.2uA
- 600mV dropout voltage at 100mA output current
- Internal thermal overload protection
- Internal current limiting protection
- Compatible with low-ESR ceramic capacitors
