MegainDatasheet (PDF)

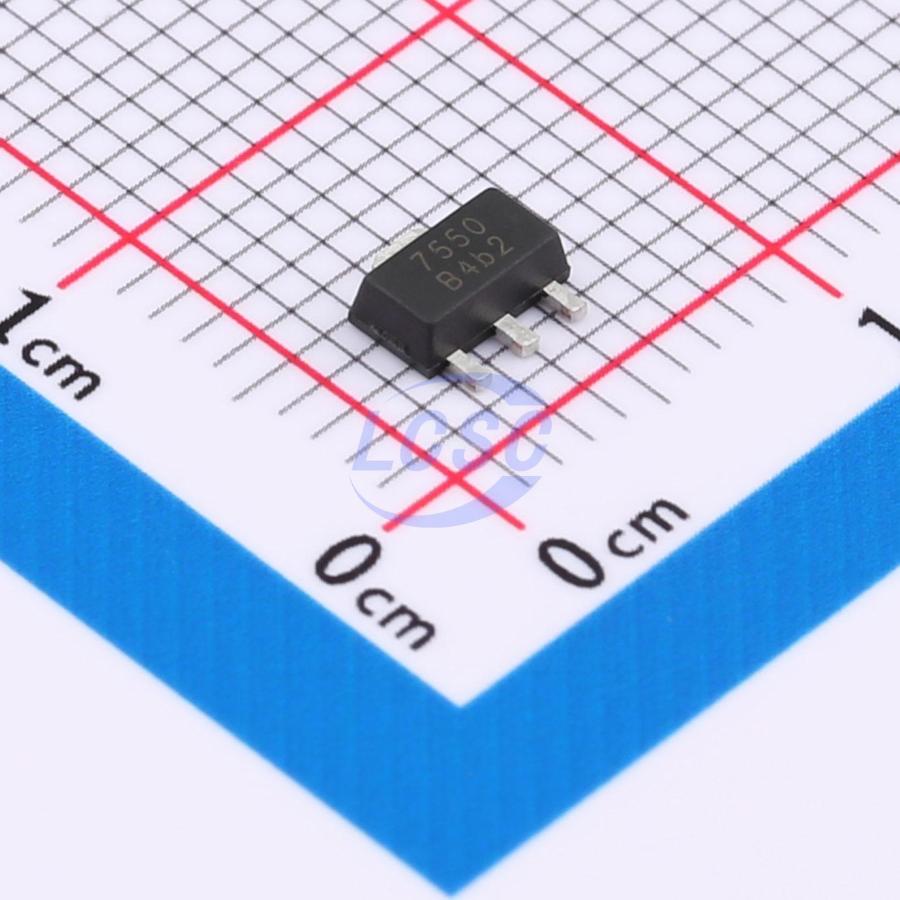

MG7550N3
Linear Voltage Regulator IC Positive Fixed 1 Output 170mA SOT-89-3
SOT-89-3ROHS CompliantActive
30V, 170mA, 1.2μA Low Dropout (LDO) Linear Regulator
- Manufacturer
- Megain
- Manufacturer part #
- MG7550N3
- Store part #
- C41380429
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,360 in stock
#C41380429
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.25 | ₹85.00 |
| 200+ | ₹3.31 | ₹662.00 |
| 1,000+ | ₹2.78 | ₹2,780.00 |
| 2,000+ | ₹2.48 | ₹4,960.00 |
| 10,000+ | ₹2.20 | ₹22,000.00 |
| 20,000+ | ₹2.06 | ₹41,200.00 |
20 × ₹4.25
₹85.00
excl. GST
₹100.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MG7550N3
₹85.00 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 170mA
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.149 g
Overview
MG75xx is a CMOS voltage regulator featuring high ripple rejection, low quiescent current, low dropout voltage, and short-circuit protection. With a quiescent current as low as 1.2μA at no load, it delivers 170mA output current under minimal input-to-output voltage differential while maintaining excellent regulation performance. This makes it ideal for portable battery-powered products, metering equipment, and security applications. The MG75xx retains all common LDO characteristics, including a low-dropout PMOS pass device, short-circuit protection, and thermal shutdown.
Applications
- Portable battery-powered devices (e-cigarettes with displays, etc.)
- Consumer electronics (wireless chargers, PD cables, etc.)
- Communication devices (smartphones, PDAs, etc.)
- Home appliances, remote controls
- Power tools, Li-ion battery protection boards
Key features
- Output voltage tolerance ±2%
- VIN range up to 30V
- Ultra-low quiescent current 1.2uA
- 600mV dropout voltage at 100mA output current
- Internal thermal overload protection
- Internal current limiting protection
- Compatible with low-ESR ceramic capacitors
