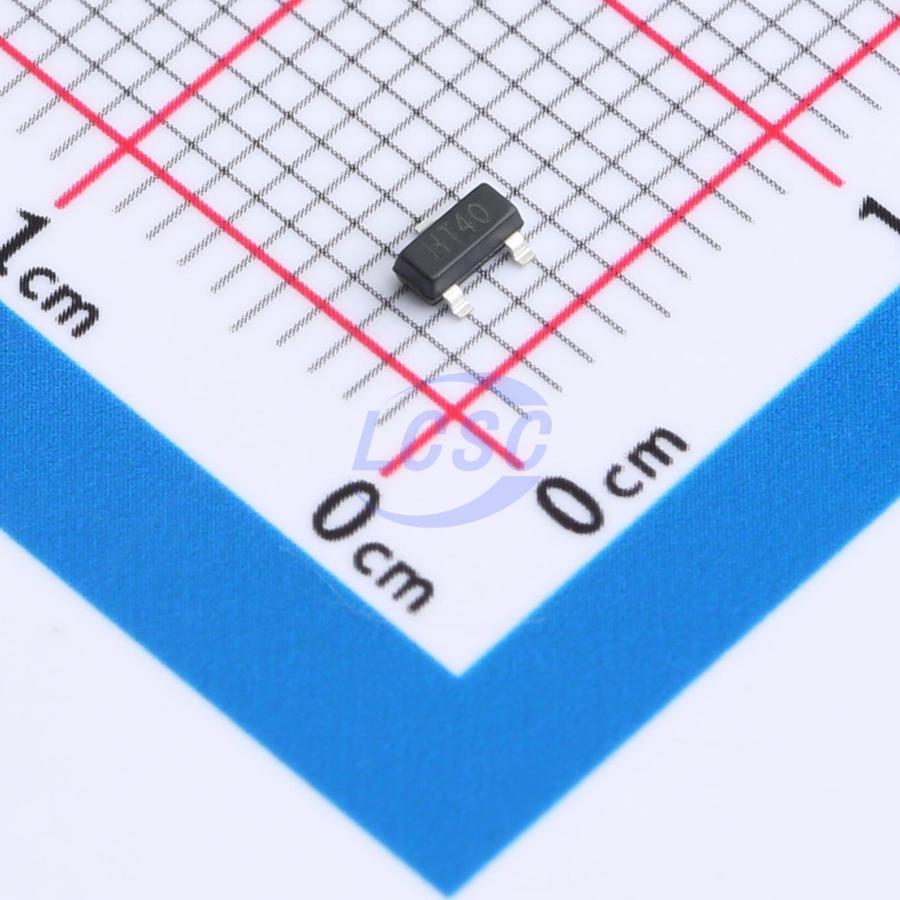

MHT7540S
Linear Voltage Regulator IC Fixed 100mA SOT-23
SOT-23RoHSActive
Low-dropout linear regulator using CMOS technology
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MHT7540S
- Store part #
- C42403119
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C42403119
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.63 | ₹92.60 |
| 200+ | ₹3.60 | ₹720.00 |
| 600+ | ₹3.04 | ₹1,824.00 |
| 3,000+ | ₹2.70 | ₹8,100.00 |
| 9,000+ | ₹2.41 | ₹21,690.00 |
| 21,000+ | ₹2.25 | ₹47,250.00 |
20 × ₹4.63
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MHT7540S
₹92.60 for 20 + GST
Specifications
- Output Voltage
- 4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
MHT75xx is a low-dropout linear regulator utilizing CMOS technology. It supports a maximum input voltage of 30V, offers several fixed output voltage options ranging from 2.8V to 9.0V, and features low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
