TECH PUBLICDatasheet (PDF)

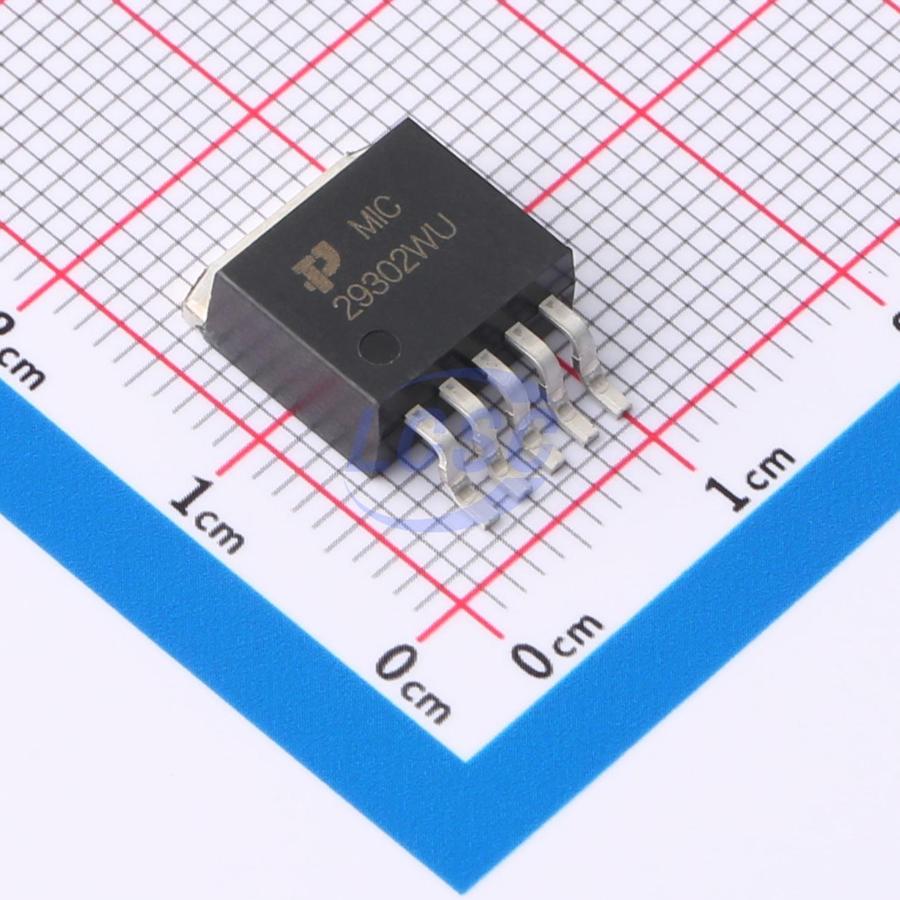

MIC29302WU
Positive Adjustable TO-263-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-263-5RoHSActive
High-Current Low Dropout Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MIC29302WU
- Store part #
- C18221475
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,867 in stock
#C18221475
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.68 | ₹119.68 |
| 10+ | ₹96.01 | ₹960.10 |
| 30+ | ₹84.06 | ₹2,521.80 |
| 100+ | ₹72.33 | ₹7,233.00 |
| 500+ | ₹62.56 | ₹31,280.00 |
| 800+ | ₹58.86 | ₹47,088.00 |
1 × ₹119.68
₹119.68
excl. GST
₹141.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
MIC29302WU
₹119.68 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 37mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 26V
- Features
- Enable control;Reverse polarity voltage protection;Over Current Protection;Thermal shutdown;Input overvoltage protection;Reverse-polarity current protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.004 g
Overview
The MIC29302wU is a high current, high accuracy and low-dropout voltage regulator. This regulator features 300mV to 370mV (full load) dropout voltage and very low ground current. Designed for high current load, the device also finds applications in lower current, extremely low dropout-critical systems, where its tiny dropout voltage and ground current value are important attributes. The M90wuis fully protected against ve-current fault, revered input polarity, revrsed lead insertin over-temperature operation, and positive and negative transient voltage spikes. On the MIC29302wU, the ENABLE pin may be tied to the input voltage (V_IN) if it is not required for ON/OFF control. The MIC29302WU is available in TO263 - 5L package.
Applications
- Battery Powered Equipment
- “Green” Computer Systems
- Automotive Electronics
- High - Efficiency Linear Power Supplies
- High - Efficiency Post - Regulator for Switching Supply
Key features
- High Current Capability of 3A
- Low - Dropout Voltage of 350mV at Full Load
- Low Ground Current
- Accurate 1% Guaranteed Tolerance
- Extremely Fast Transient Response
- Reverse - Battery and “Load Dump” Protection
- Zero - Current Shutdown Mode
- Also Characterized For Smaller Loads with Industry - Leading Performance Specifications
- Adjustable Version
