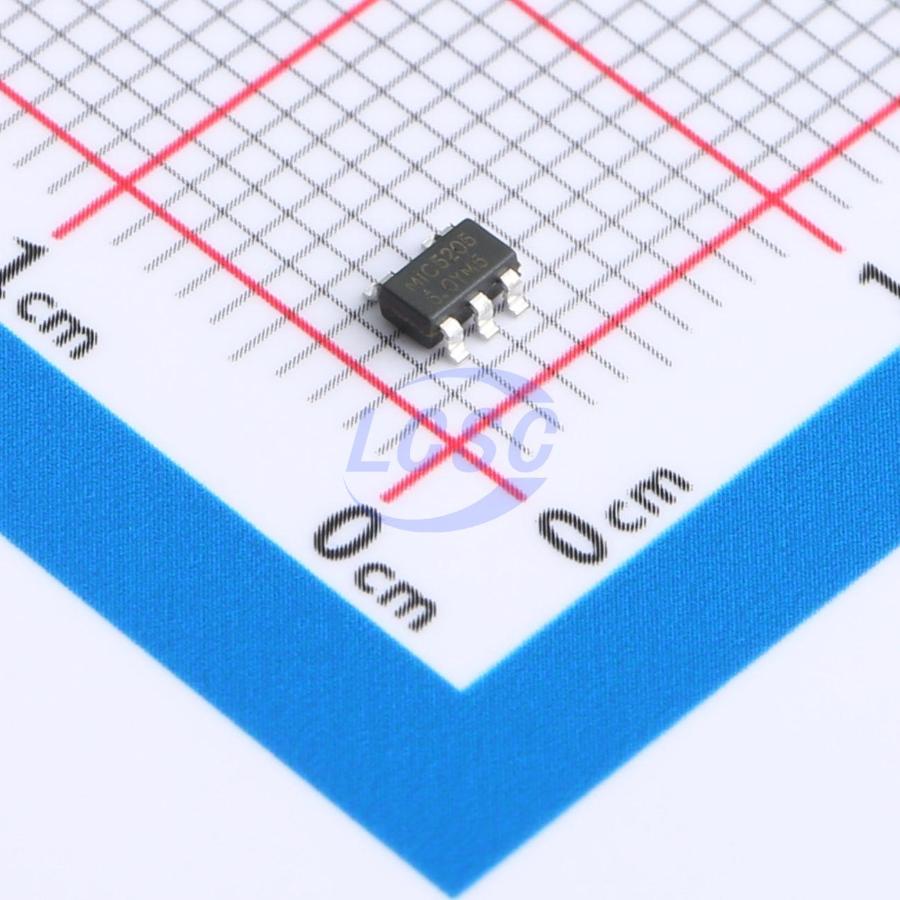

MIC5205-5.0YM5-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 350mA SOT-23-5
SOT-23-5RoHSActive
IC REG LINEAR 5V 350mA SOT-23-5
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MIC5205-5.0YM5-MS
- Store part #
- C7473162
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,240 in stock
#C7473162
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.03 | ₹90.15 |
| 50+ | ₹14.38 | ₹719.00 |
| 150+ | ₹12.56 | ₹1,884.00 |
| 500+ | ₹11.19 | ₹5,595.00 |
| 3,000+ | ₹10.05 | ₹30,150.00 |
| 6,000+ | ₹9.51 | ₹57,060.00 |
5 × ₹18.03
₹90.15
excl. GST
₹106.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC5205-5.0YM5-MS
₹90.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 24V
- Features
- Enable control;Output discharge;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The MIC5205 series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 2.8V to 24V, low dropout voltage, low quiescent current, and compact packaging, with an output voltage range of 3.0V to 5.0V. The MIC5205 offers an ultralow quiescent current of 1.8µA and includes a CE enable control pin that allows the circuit to enter shutdown mode. It is particularly well-suited for battery-powered devices and long-term standby applications, helping to reduce system standby power consumption and effectively extending both standby time and battery life.
Applications
- Handheld, battery-powered devices
- Communication equipment
- Audio/video devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- In-vehicle navigation systems
- Industrial control and smart home
Key features
- Low dropout voltage
- Low temperature drift coefficient
- 24V withstand voltage
- Operating quiescent current 1.8μA, max 4μA
- Sleep quiescent current max 0.2μA
- Output voltage accuracy: ±2%
- Output overcurrent protection
- CE enable control port
- Operating temperature: -20°C ~ +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPX3819M5-L-5-0(MS)#C20538875MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,170 | ₹16.15 · 1,170 in stock | View |
 | AP2204K-5.0TRG1(MS)#C20627186MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 11,800 | ₹18.23 · 11,800 in stock | View |
 | SPX5205M5-L-5-0/TR(MS)#C20627207MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 6,835 | ₹14.66 · 6,835 in stock | View |
 | MIC5219-5.0YM5-MS#C30197487MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,030 | ₹25.44 · 2,030 in stock | View |
 | LP2985-50DBVR-MS#C30197523MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,615 | ₹16.63 · 2,615 in stock | View |
