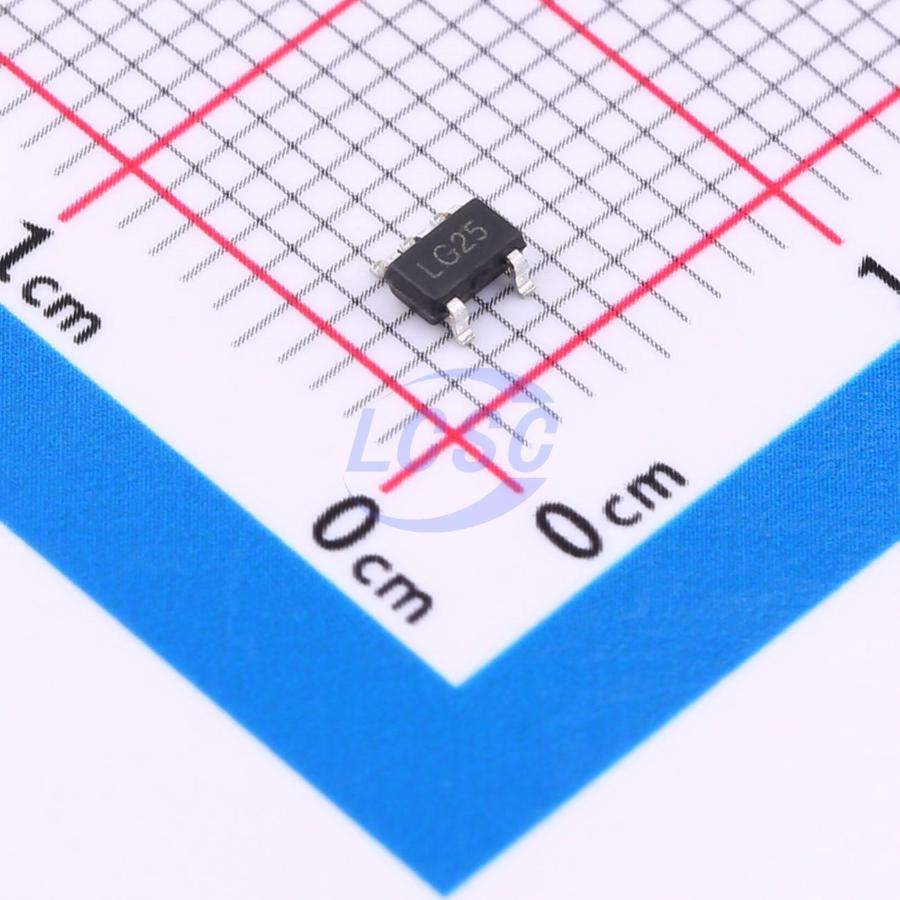

MIC5219-2.5YM5-TD
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5ROHS CompliantActive
Low-dropout converter, wide voltage input range, low power consumption, miniaturized package
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MIC5219-2.5YM5-TD
- Store part #
- C42422049
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C42422049
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.59 | ₹107.95 |
| 50+ | ₹18.85 | ₹942.50 |
| 150+ | ₹17.69 | ₹2,653.50 |
| 500+ | ₹16.22 | ₹8,110.00 |
| 3,000+ | ₹15.57 | ₹46,710.00 |
| 6,000+ | ₹15.17 | ₹91,020.00 |
5 × ₹21.59
₹107.95
excl. GST
₹127.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC5219-2.5YM5-TD
₹107.95 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Features
- Enable control;Output discharge;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The MIC5219 series is a family of low dropout (LDO) regulators featuring a wide input voltage range of 2.0V to 20V, low dropout voltage, low quiescent current, and compact packaging, with an output voltage range of 1.8V to 5.0V. The MIC5219 features an ultra-low quiescent current of 2.0µA and includes a CE enable control pin that allows the circuit to enter a sleep state. It is particularly well-suited for battery-powered applications and long-term standby systems, helping to reduce standby power consumption, effectively extending standby time and battery life.
Applications
- Handheld, battery-powered devices
- Communication equipment
- Audio/video equipment
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- In-vehicle navigation systems
- Industrial control
- Smart home
Key features
- Low input-output voltage dropout
- Low temperature drift coefficient
- Maximum operating voltage 20V
- Operating quiescent current 2.0μA, max 4μA
- Shutdown quiescent current max 0.5μA
- Output voltage accuracy: ±2%
- Output overload protection
- CE enable control port
- Operating temperature -20°C ~ +85°C
