MICROCHIPDatasheet (PDF)

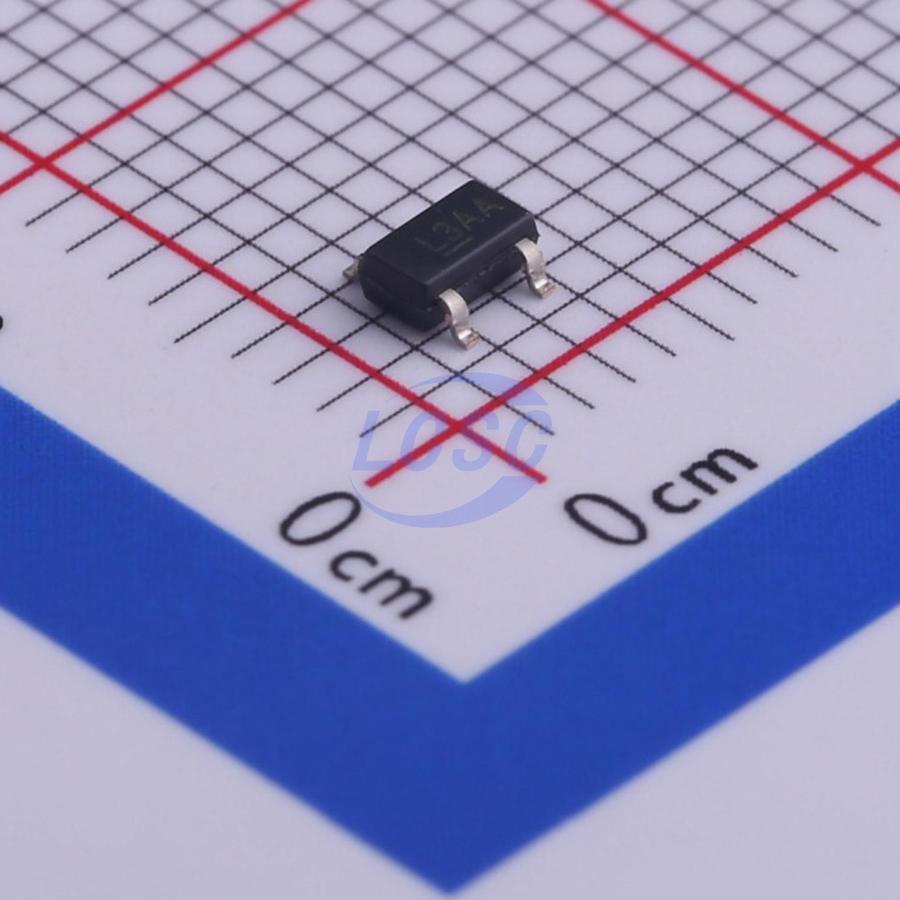

MIC5233YM5-TR
1.24V~20V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
High Input Voltage, Low Io μCap LDO Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC5233YM5-TR
- Store part #
- C481377
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,991 in stock
#C481377
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.34 | ₹120.34 |
| 10+ | ₹97.13 | ₹971.30 |
| 30+ | ₹85.43 | ₹2,562.90 |
| 100+ | ₹73.94 | ₹7,394.00 |
| 500+ | ₹67.22 | ₹33,610.00 |
| 1,000+ | ₹63.53 | ₹63,530.00 |
1 × ₹120.34
₹120.34
excl. GST
₹142.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC5233YM5-TR
₹120.34 for 1 + GST
Specifications
- Output Voltage
- 1.24V~20V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 100mA
- Features
- Enable control;Reverse polarity voltage protection;Reverse-polarity current protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MIC5233 is a 100 mA, highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the MIC5233 ideal for multicell Li-Ion battery systems. A µCap LDO design, the MIC5233 is stable with either ceramic or tantalum output capacitors. It only requires a 2.2 µF output capacitor for stability. Features of the MIC5233 include enable input, thermal shutdown, current limit and reverse battery protection, and reverse leakage protection. Available in fixed and adjustable output voltage versions, the MIC5233 is offered in the 5-lead SOT23 and 3-lead SOT223 packages with a junction temperature range of -40°C to +125°C.
Applications
- Keep-Alive Supply in Notebook and Portable Computers
- USB Power Supply
- Logic Supply for High-Voltage Batteries
- Automotive Electronics
- Battery-Powered Systems
- 3 - 4 Cell Li-Ion Battery Input Range
Key features
- AEC-Q100 Qualified and PPAP Capable; Available for 5-Lead SOT23 Package Only
- Wide Input Voltage Range: 2.3V to 36V
- Ultra-Low Ground Current: 18 µA
- Low Dropout Voltage of 270 mV at 100 mA
- High Output Accuracy of ±2.0% Overtemperature
- µCap: Stable with Ceramic or Tantalum Capacitors
- Excellent Line and Load Regulation Specifications
- Near Zero Shutdown Current: Typical 0.1 µA
- Reverse Battery Protection
- Reverse Leakage Protection
- Thermal Shutdown and Current Limit Protection
- 5-Lead SOT23 and 3-Lead SOT223 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP573CADJS5-1#C22358703TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,615 | ₹41.93 · 1,615 in stock | View |
