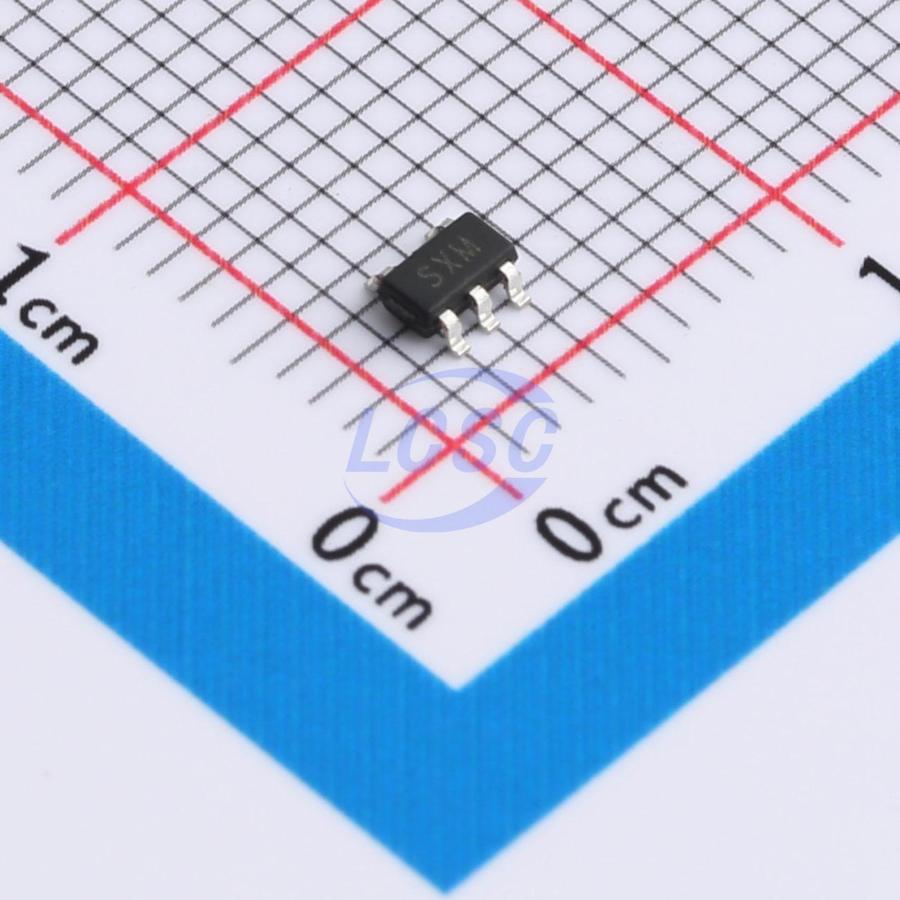

MIC5504-3.3YM5
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA 15uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MIC5504-3.3YM5
- Store part #
- C41348078
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,715 in stock
#C41348078
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.60 | ₹83.00 |
| 50+ | ₹14.55 | ₹727.50 |
| 150+ | ₹13.68 | ₹2,052.00 |
| 500+ | ₹12.58 | ₹6,290.00 |
| 3,000+ | ₹12.09 | ₹36,270.00 |
| 6,000+ | ₹11.80 | ₹70,800.00 |
5 × ₹16.60
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC5504-3.3YM5
₹83.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TPMIC5504 is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 15μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.22V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT23-5, DFN1X1-4
- MIC5504-3.3YM5 pin to pin fully compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPLP3985IM5X-3.3#C4355037TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,965 | ₹20.20 · 2,965 in stock | View |
 | TPMCP1711T-33I/OT#C3040642TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 600 | ₹21.99 · 600 in stock | View |
 | LP5907MFX-3.3#C23380874TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,000 | ₹17.97 · 2,000 in stock | View |
 | XC6221A332MR#C3021089TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,525 | ₹23.48 · 1,525 in stock | View |
 | XC6504A331MR#C3021090TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,385 | ₹23.06 · 5,385 in stock | View |
