MICROCHIPDatasheet (PDF)

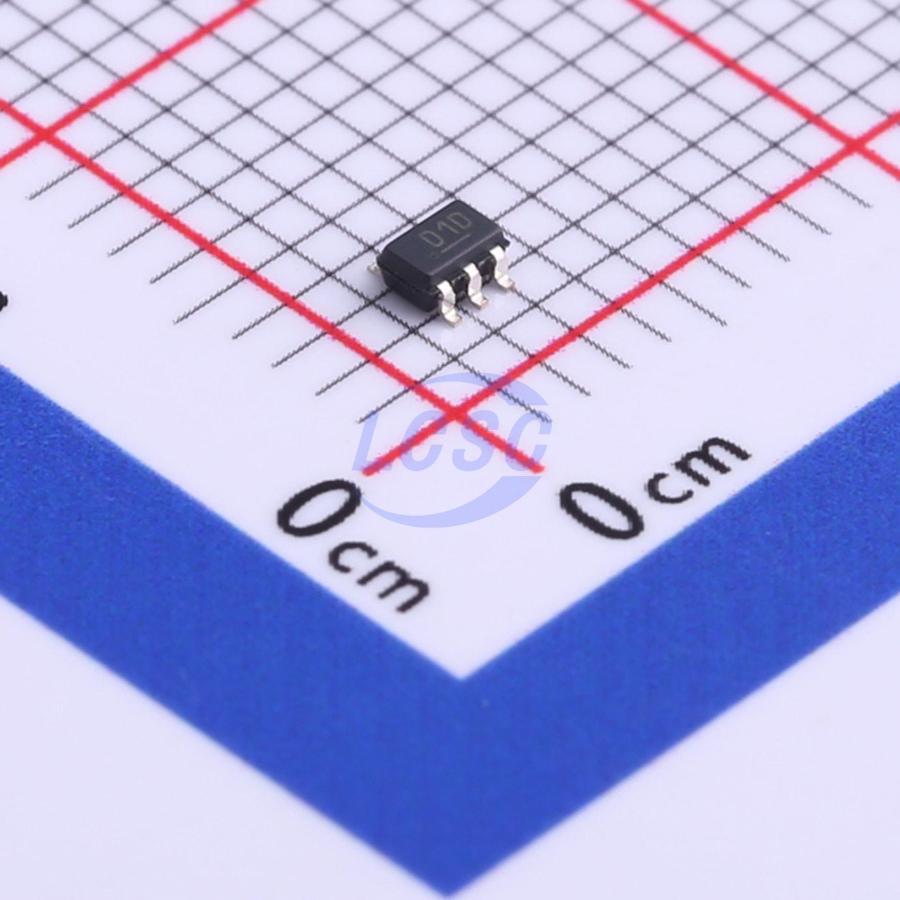

MIC94090YC6-TR
1 Active High 1.2A High Side Switch SC-70-6 Power Distribution Switches, Load Drivers RoHS
SC-70-6ROHS3 CompliantActive
High Side Load Switches
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC94090YC6-TR
- Store part #
- C515520
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,307 in stock
#C515520
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹284.31 | ₹284.31 |
| 10+ | ₹244.72 | ₹2,447.20 |
| 30+ | ₹219.71 | ₹6,591.30 |
| 100+ | ₹194.26 | ₹19,426.00 |
| 500+ | ₹182.94 | ₹91,470.00 |
| 1,000+ | ₹177.94 | ₹1,77,940.00 |
1 × ₹284.31
₹284.31
excl. GST
₹335.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MIC94090YC6-TR
₹284.31 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.2A
- Operating Voltage
- 1.7V~5.5V
- RDS(on)
- 130mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.017 g
Overview
The MIC94090/1/2/3/4/5 is a family of high-side load switches designed for operation from 1.7V to 5.5V input voltage. The load switch pass element is an internal 130mΩ RDS(ON) P-channel MOSFET which enables the device to support up to 1.2A continuous current. Additionally, the load switch supports 1.5V logic level control and shutdown features. The MIC94090 and MIC94091 feature rapid turn on. The MIC94092 and MIC94093 provide a slew rate controlled soft-start turn-on of 790µs, while the MIC94094 and MIC94095 provide a slew rate controlled soft-start turn-on of 120µs. The soft-start feature option prevents an in-rush current event from pulling down the input supply voltage. The MIC94091, MIC94093, and MIC94095 include a 250Ω auto discharge load circuit that is switched on when the load switch is disabled. An active pull-down on the enable input keeps the MIC94090/1/2/3/4/5 in a default OFF state until the enable pin is pulled above 1.25V. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage. The MIC94090/1/2/3/4/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.
Applications
- Cellular phones
- Portable Navigation Devices (PND)
- GPS modules
- Personal Media Players (PMP)
- Ultra Mobile PCs
- Other Portable applications
- PDAs
- Portable instrumentation
- Industrial and DataComm equipment
Key features
- 1.7V to 5.5V input voltage range
- 1.2A continuous operating current
- 130mΩ RDS(ON)
- Internal level shift for CMOS/TTL control logic
- Ultra low quiescent current
- Micro-power shutdown current
- Rapid turn-on: MIC94090/1
- Soft-Start: MIC94092/3 (790µs), MIC94094/5 (120µs)
- Load discharge circuit: MIC94091/3/5
- Space saving and thermally capable 1.2mm x 1.2mm Thin MLF package
- Industry standard SC-70-6 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MIC94073YC6-TR#C145586MICROCHIP · SOT-363-6 | MICROCHIP | SOT-363-6 | 46 | ₹186.19 · 46 in stock | View |
 | MIC94091YC6-TR#C626242MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 1 | ₹121.90 · 1 in stock | View |
 | MIC94092YC6-TR#C626243MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 128 | ₹142.28 · 128 in stock | View |
 | MIC94094YC6-TR#C626245MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 52 | ₹132.43 · 52 in stock | View |
 | MIC94063YC6-TR#C515518MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 60 | ₹263.65 · 60 in stock | View |
