1,464 in stock
#C26159627
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹3,856.15 | ₹11,568.45 |
| 90+ | ₹3,686.01 | ₹3,31,740.90 |
3 × ₹3,856.15
₹11,568.45
excl. GST
₹13,650.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 260 per tray

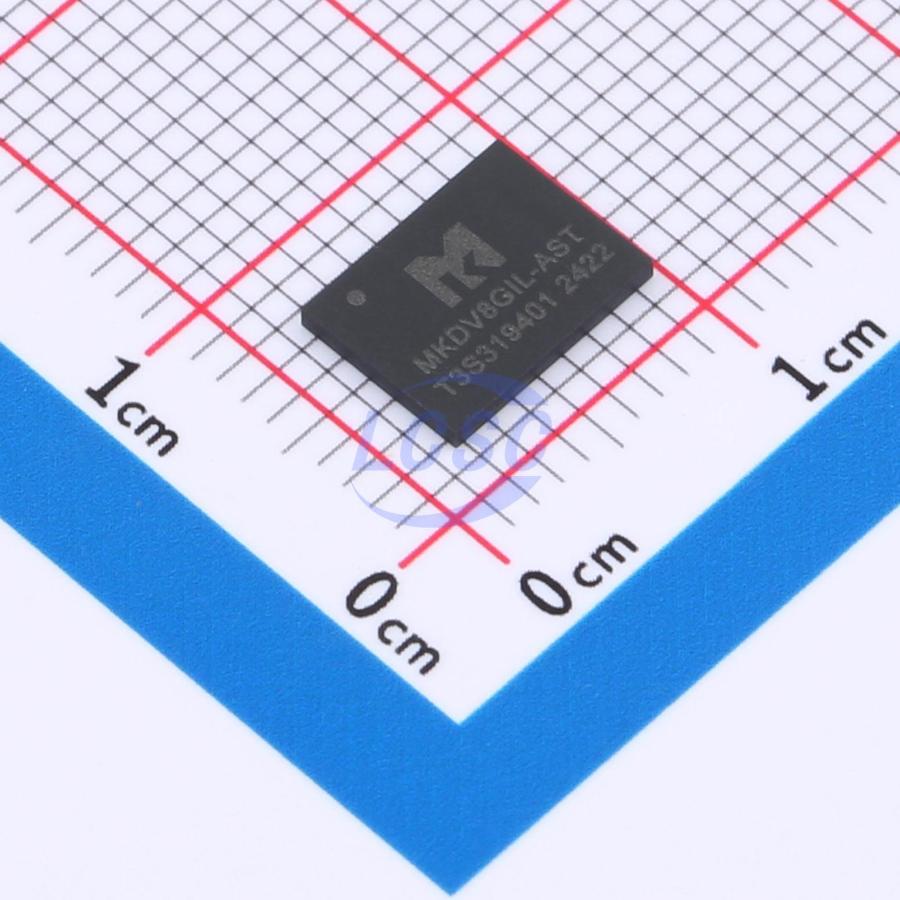

MKDV8GIL-AST
₹11,568.45 for 3 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Read buffer function;Bad block management function;ECC error correction function
- Memory Size
- 8Gbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 50MHz
- Data Retention - TDR (Year)
- 10 years
- Standby Supply Current
- 130uA
- Interface
- SD interface;SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 260 / Tray
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.035 g
Overview
MK SD NAND is an embedded storage solution designed in the form of an LGA package that operates similarly to industry standard SD cards. SD NAND consists of NAND flash memory and a high-performance controller that supports ultra-High speed mode (UHS-l) and is fully compliant with the SD2.0 interface. With superior read/write performance, IOPS, reliability, and host compatibility, MK SD NAND is designed to provide a high-performance, low-power, cost-effective, and value-added solution for SD-oriented applications.
Key features
- Support up to 50Mhz clock frequency
- Supports SPI Mode
- Built-in HW ECC Engine and highly reliable NAND management mechanism
- Smaller package LGA-8
- Advanced thermal management features to maximize performance and data protection at extended temperatures Static, dynamic, and global wear leveling Bad block management, intelligent garbage collection and support for interleaving, cache, and multi-plane programming
- Read disturb management and dynamic data refresh
- Best-in-class power fail management
- Program/Erase：100,000 cycles
- High IOPS performance, which can process random read and write requests of small-capacity files more efficiently and quickly, thus improving access speed.
- Low power consumption, cost-effective solution
- Industrial grade temperature range: -40~85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MKDV8GIL-ABC#C55223697MK · LGA-8(6x8) | MK | LGA-8(6x8) | 453 | ₹3,169.83 · 453 in stock | View |
