Firstohm(First Resistor & Condenser)Datasheet (PDF)
MM204F1M50TKRTR3K0

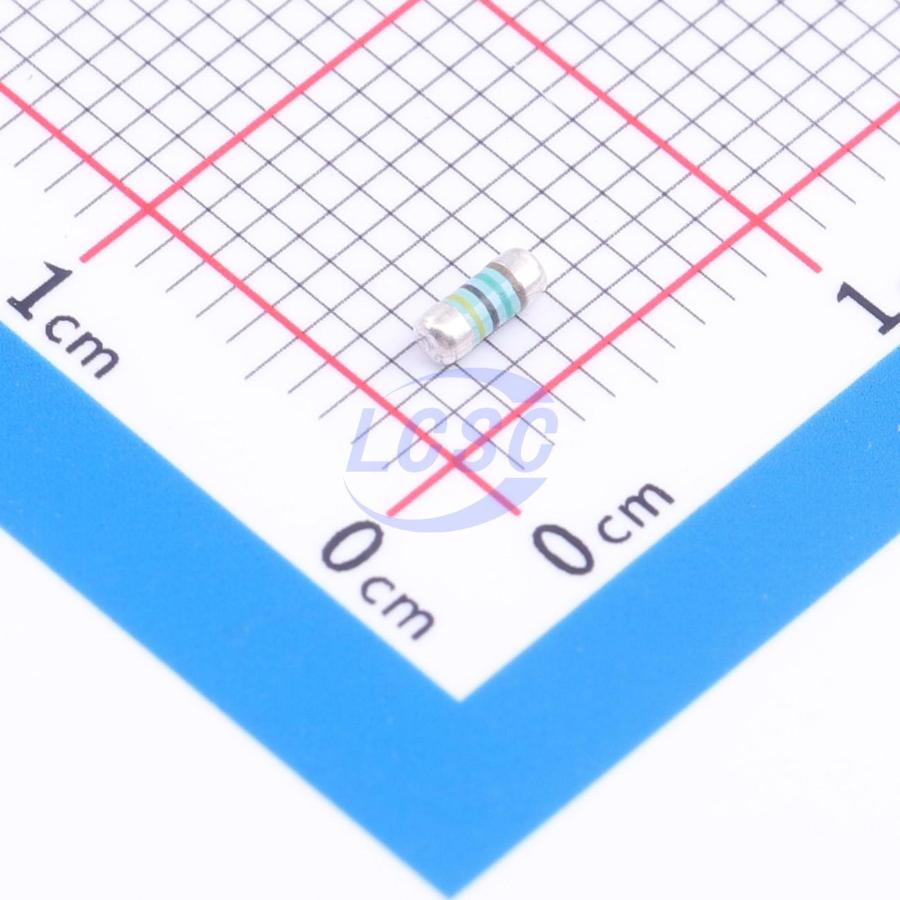

250mW 1.5MΩ 200V Metal Film Resistor ±50ppm/℃ ±1% MELF-0204 Chip Resistor - Surface Mount
MELF-0204RoHSActive
- Manufacturer
- Firstohm(First Resistor & Condenser)
- Manufacturer part #
- MM204F1M50TKRTR3K0
- Store part #
- C54740560
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C54740560
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.10 | ₹71.00 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹5.03 | ₹1,509.00 |
| 3,000+ | ₹4.50 | ₹13,500.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.88 | ₹34,920.00 |
10 × ₹7.10
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM204F1M50TKRTR3K0
₹71.00 for 10 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 1.5MΩ
- Voltage Rating
- 200V
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Key features
- SMD structure supported
- Sulfuration resistance tested
- Excellent solderability of terminal electrodes
- Superior heat dissipation compared to chip resistors
- Robust mechanical structure, resistant to vibration and thermal shock
- RoHS compliant, free of SVHC substances identified by ECHA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMA02040C1504FB300#C2078542VISHAY · MELF-0204 | VISHAY | MELF-0204 | 15 | ₹12.58 · 15 in stock | View |
| SMM02040C1504FB300#C2085226VISHAY · MELF-0204 | VISHAY | MELF-0204 | On request | Price on request | Quote | |
| MMF25SFRE1M5#C4333732YAGEO · MELF-0204 | YAGEO | MELF-0204 | On request | ₹5.54 · 0 in stock | View | |
| SMM02040C1504FB000#C4177732VISHAY · MELF-0204 | VISHAY | MELF-0204 | On request | Price on request | Quote | |
