Firstohm(First Resistor & Condenser)Datasheet (PDF)
MM204F4M70TKRTR3K0

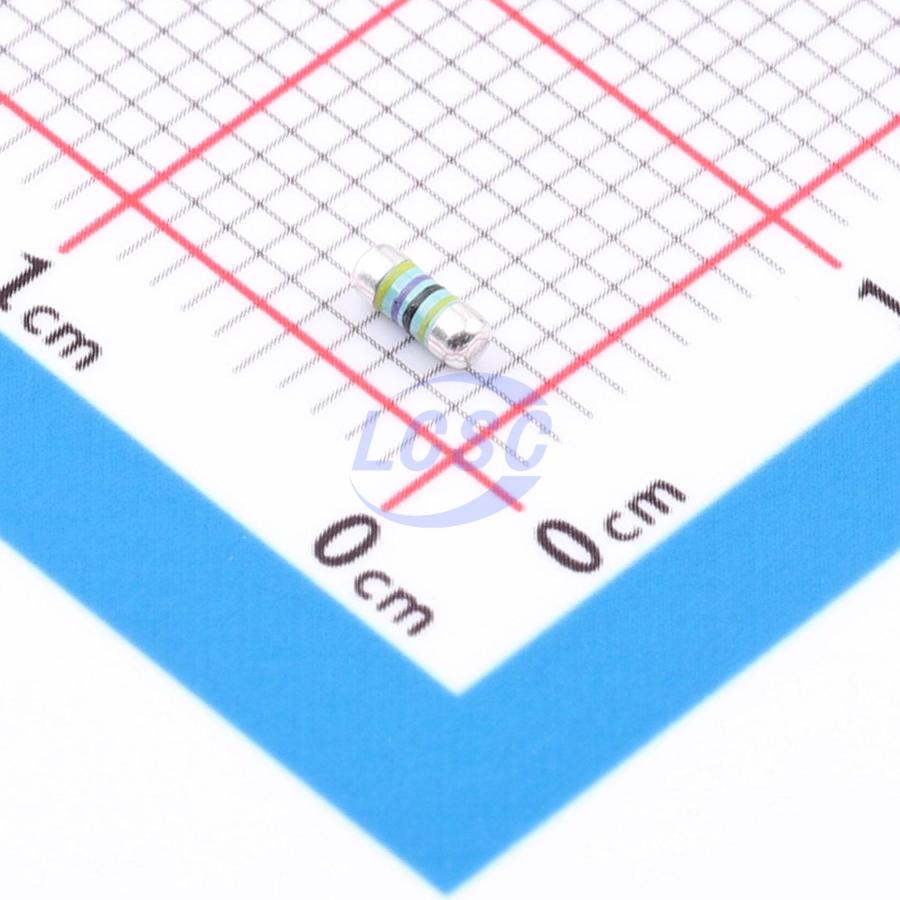

4.7MΩ 250mW 200V Metal Film Resistor ±50ppm/℃ ±1% MELF-0204 Chip Resistor - Surface Mount
MELF-0204RoHSActive
- Manufacturer
- Firstohm(First Resistor & Condenser)
- Manufacturer part #
- MM204F4M70TKRTR3K0
- Store part #
- C54740732
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54740732
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹5.74 | ₹574.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.11 | ₹24,660.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MM204F4M70TKRTR3K0
₹71.40 for 10 + GST
Specifications
- Resistance
- 4.7MΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 200V
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
Key features
- SMD structure supported
- Sulfuration resistance tested
- Excellent solderability of terminal electrodes
- Superior heat dissipation compared to chip resistors
- Robust mechanical structure, resistant to vibration and thermal shock
- RoHS compliant, free of SVHC substances identified by ECHA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMM02040C4704FB300#C2082037VISHAY · MELF-0204 | VISHAY | MELF-0204 | 1,900 | ₹9.47 · 1,900 in stock | View |
 | MMA02040C4704FB300#C2077943VISHAY · MELF-0204 | VISHAY | MELF-0204 | 450 | ₹10.86 · 450 in stock | View |
 | MLF14FTC4M70#C386732SEI(Stackpole Electronics Inc.) · MELF-0204 | SEI(Stackpole Electronics Inc.) | MELF-0204 | On request | ₹9.94 · 0 in stock | View |
| MMF25SFRE4M7#C4286461YAGEO · MELF-0204 | YAGEO | MELF-0204 | On request | Price on request | Quote | |
