MindMotion Microelectronics

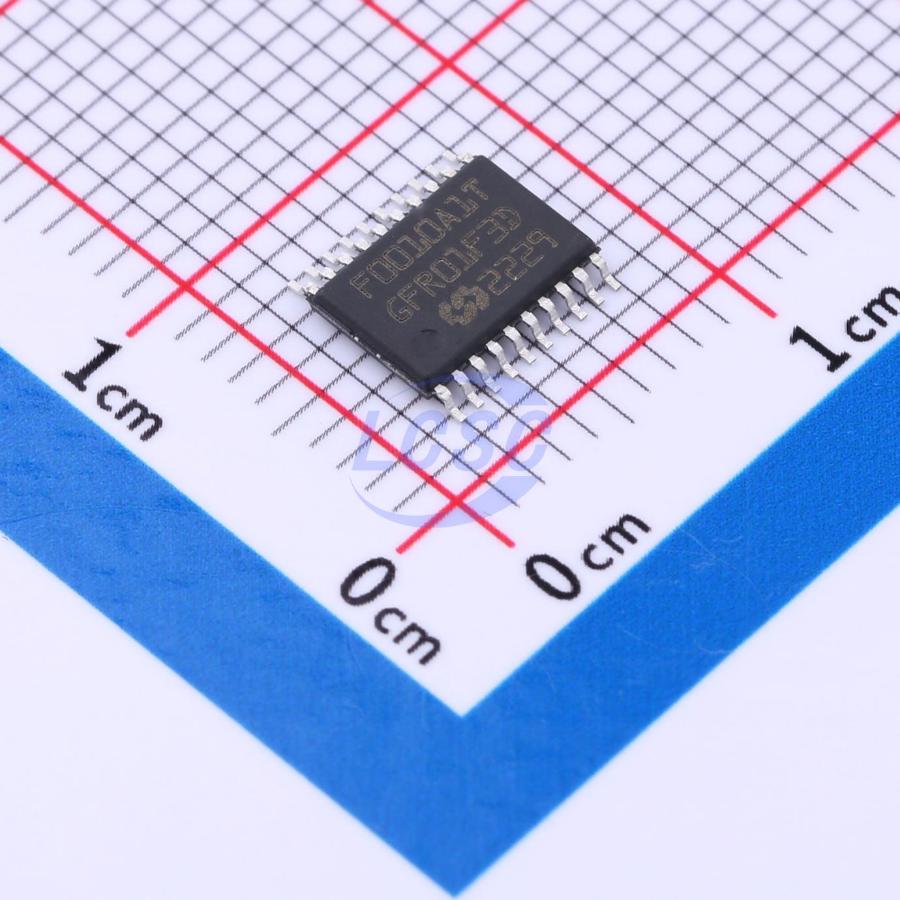

MM32F0010A1T

ARM Cortex-M0 32 Bit 48MHz TSSOP-20 Microcontrollers RoHS

TSSOP-20ROHS CompliantActive

32-bit microcontroller based on Arm Cortex-M0 core

Manufacturer: MindMotion Microelectronics
Manufacturer part #: MM32F0010A1T
Store part #: C2686112
Package / case: TSSOP-20
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

929 in stock

#C2686112

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹96.27	₹96.27
10+	₹78.93	₹789.30
30+	₹70.25	₹2,107.50
100+	₹61.59	₹6,159.00
500+	₹56.37	₹28,185.00
1,000+	₹53.78	₹53,780.00

Quantity (min 1)

1 × ₹96.27

₹96.27

excl. GST

₹113.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MM32F0010A1T

₹96.27 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 18
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~5.5V
Program Memory Type: FLASH
Program Storage Size: 16KB
CPU Core: ARM Cortex-M0
Core Size: 32 Bit
CPU Maximum Speed: 48MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

A 32-bit microcontroller based on the high-performance Arm Cortex®-M0 core, operating at up to 48MHz, with built-in high-speed memory and rich I/O ports and peripherals connected to the external bus. Includes 1 × 12-bit ADC, 1 × 16-bit general-purpose timer, 1 × 16-bit basic timer, and 1 × 16-bit advanced timer. Also features standard communication interfaces: 1 × I2C, 1 × SPI, and 2 × UART. Operating voltage: 2.0V~5.5V. Operating temperature range (ambient): industrial grade -40°C~+85°C and extended industrial grade -40°C~+105°C (suffix V). Built-in multiple power-saving modes to meet low-power application requirements. This rich peripheral configuration makes the microcontroller suitable for a wide range of applications. Available in 3 package options: QFN20, TSSOP20, and SOP8.

Applications

Node control
Wireless charging
Motor control
Toys
Lighting circuits
8/16-bit MCU upgrade

Key features

Maximum operating frequency up to 48MHz
Single-cycle 32-bit hardware multiplier
Up to 16KB FLASH program memory
Up to 2KB SRAM
2.0V~5.5V supply voltage
Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
POR reset voltage as low as 1.7V
PVD voltage threshold as low as 1.8V
External 2~24MHz high-speed crystal oscillator
Built-in factory-trimmed 48MHz high-speed oscillator
Sleep, stop, and standby modes
1× 16-bit 4-channel advanced control timer with 4-channel PWM output, dead-time generation, and emergency stop
1× 16-bit timer with up to 3 input capture/output compare channels, usable for IR control decoding
1× 16-bit timer with 1 input capture/output compare channel
2× watchdog timers (IWDG and WWDG)
1× SysTick timer: 24-bit down counter
2× UART interfaces
1× I2C interface
1× SPI interface
Up to 18 fast I/O ports
All I/O ports mappable to 16 external interrupts
All ports support VDD-level input/output
1× 12-bit ADC, 1μS conversion time (up to 8 input channels)
Conversion range: 0 ~ VDD
Configurable sampling time and resolution
On-chip voltage sensor
Serial Wire Debug (SWD) interface
