NexperiaDatasheet (PDF)

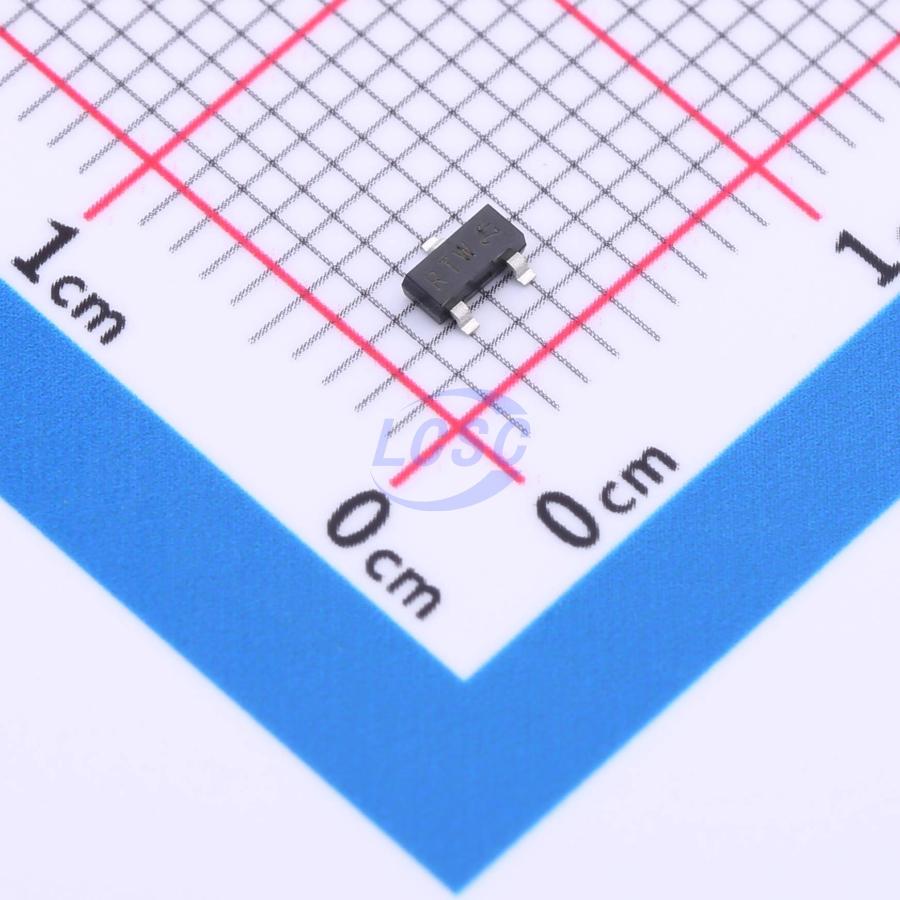

MMBZ6V8AL,215
9.6VC Clamp 2.5A@10/1000us Ipp ESD DIODE TO-236AB
TO-236ABROHS3 CompliantActive
ESD DIODE 4.5VWM 9.6VC TO-236AB
- Manufacturer
- Nexperia
- Manufacturer part #
- MMBZ6V8AL,215
- Store part #
- C551545
- Package / case
- TO-236AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,835 in stock
#C551545
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.59 | ₹57.95 |
| 50+ | ₹8.96 | ₹448.00 |
| 150+ | ₹7.63 | ₹1,144.50 |
| 500+ | ₹6.64 | ₹3,320.00 |
| 3,000+ | ₹5.85 | ₹17,550.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
5 × ₹11.59
₹57.95
excl. GST
₹68.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ6V8AL,215
₹57.95 for 5 + GST
Specifications
- Clamping Voltage
- 9.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 24W
- Number of Channels
- 2
- Voltage - Breakdown
- 6.46V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 4.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The devices are designed for ESD and transient overvoltage protection of up to two signal lines.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Automotive electronic control units
- Portable electronics
Key features
- Unidirectional ESD protection of ESD protection up to 30 kV (contact two lines discharge)
- Bidirectional ESD protection of one line IEC 61000-4-2; level 4 (ESD)
- Low diode capacitance: Cd ≤ 280 pF
- IEC 61643-321 Rated peak pulse power: PP P M = 40 W
- AEC-Q101 qualified
- Ultra low leakage current: IR M = 5 nA
