MS2107

MS2107 is a video and audio capture chip that integrates a USB 2.0 controller and data transceiver module, video ADC module, audio ADC module, and audio/video processing module. The MS2107 can transmit CVBS, S-Video, and audio signals to PCs, smartphones, and tablets via USB for preview or capture. The MS2107 output supports both YUV422 and MJPEG modes, and is compatible with Windows, Android, and macOS systems.

Applications

• Audio/video capture cards
• Security surveillance
• Medical imaging
• Automotive rear-view
• Industrial cameras

Key features

• Video Input: Supports CVBS and S-Video input, compatible with NTSC/PAL video standards, automatic input source detection, supports 3D decoding
• Audio Input: Built-in 24-bit audio ADC, supports digital audio I2S input
• Video Output: Supports MJPEG and YUV422 modes, maximum output resolution 1920×1080@30Hz, user-customizable resolution, brightness/contrast/saturation/hue adjustment, compatible with USB 1.1 mode, USB video compliant with UVC 1.0 protocol
• Audio Output: USB audio output 48KHz stereo, USB audio compliant with UAC 1.0 protocol
• USB 2.0: Integrated USB 2.0 Device, supports descriptor customization
• OS Support: Windows XP/7/8/10, Android 5.0 or above, MacOS
• Clock: Requires external 12MHz passive crystal oscillator, built-in PLL circuit
• Power Supply & Reset: Built-in 3.3V & 1.2V LDO, built-in power-on reset circuit

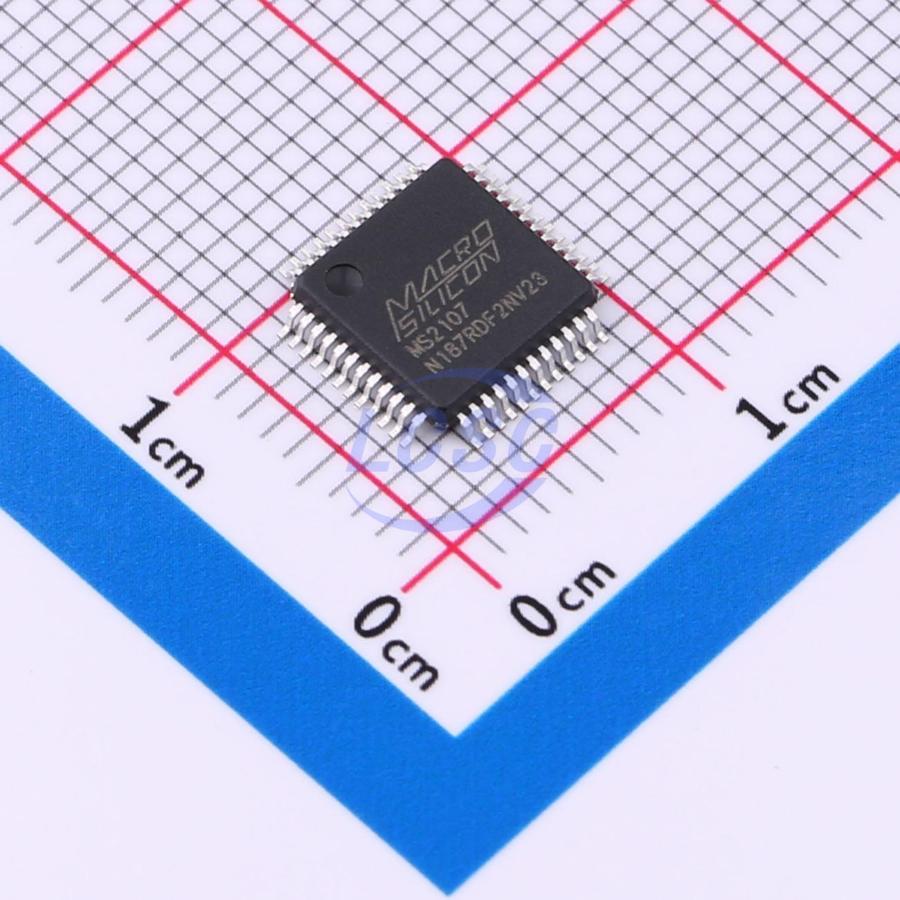

• Package: LQFP-48 plastic package (7mm×7mm), RoHS compliant
