MSKSEMI

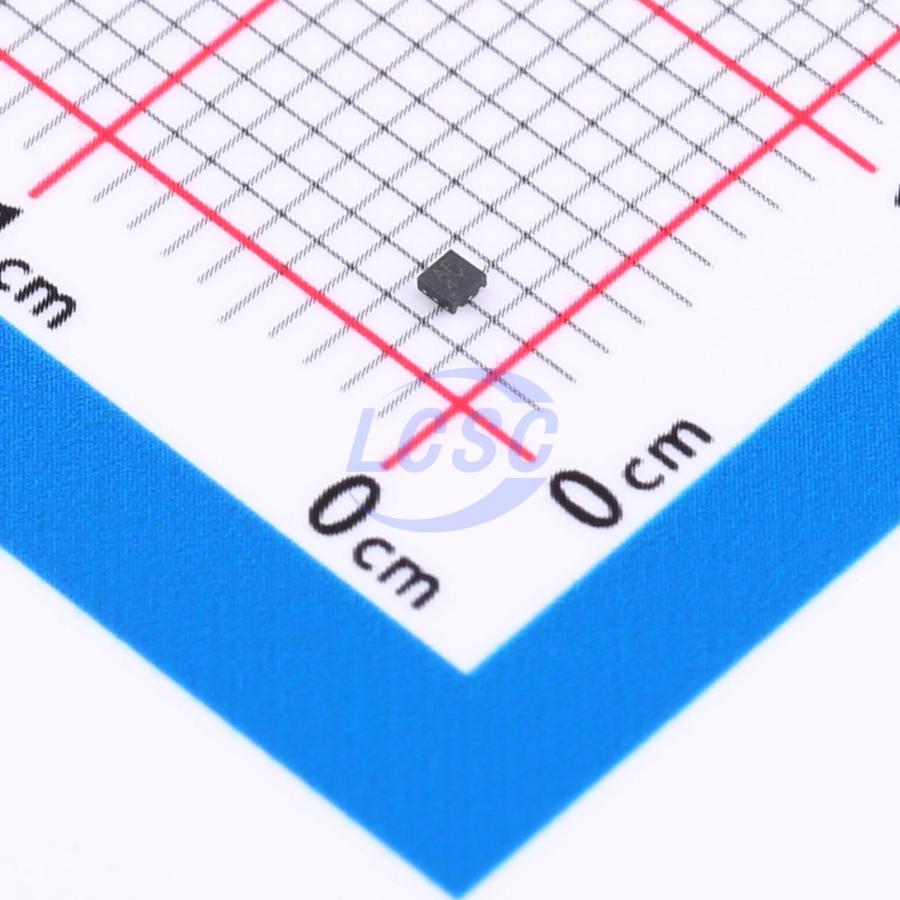

MS3236-1.2YUTDN4

1.2V Positive Fixed DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

DFN-4L(1x1)RoHSActive

IC REG LINEAR 1.2V DFN-4L(1x1)

Manufacturer: MSKSEMI
Manufacturer part #: MS3236-1.2YUTDN4
Store part #: C49208544
Package / case: DFN-4L(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,630 in stock

#C49208544

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹9.94	₹99.40
100+	₹7.86	₹786.00
300+	₹6.81	₹2,043.00
1,000+	₹6.03	₹6,030.00
5,000+	₹5.41	₹27,050.00
10,000+	₹5.09	₹50,900.00

Quantity (min 10, multiples of 10)

10 × ₹9.94

₹99.40

excl. GST

₹117.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

MS3236-1.2YUTDN4

₹99.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 800nA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 5.5V
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.007 g

Overview

MS3236-x.xYUTDN4 is a low-power, low-dropout linear regulator with 300mA drive capability. The device exhibits excellent power consumption characteristics under light-load conditions in portable applications, with a shutdown current of less than 0.1µA and a quiescent current of 0.8µA. It provides an output voltage range of 0.8~3.6V, suitable for a wide range of applications, and features integrated thermal shutdown and current limiting protection.
