MSKSEMIDatasheet (PDF)

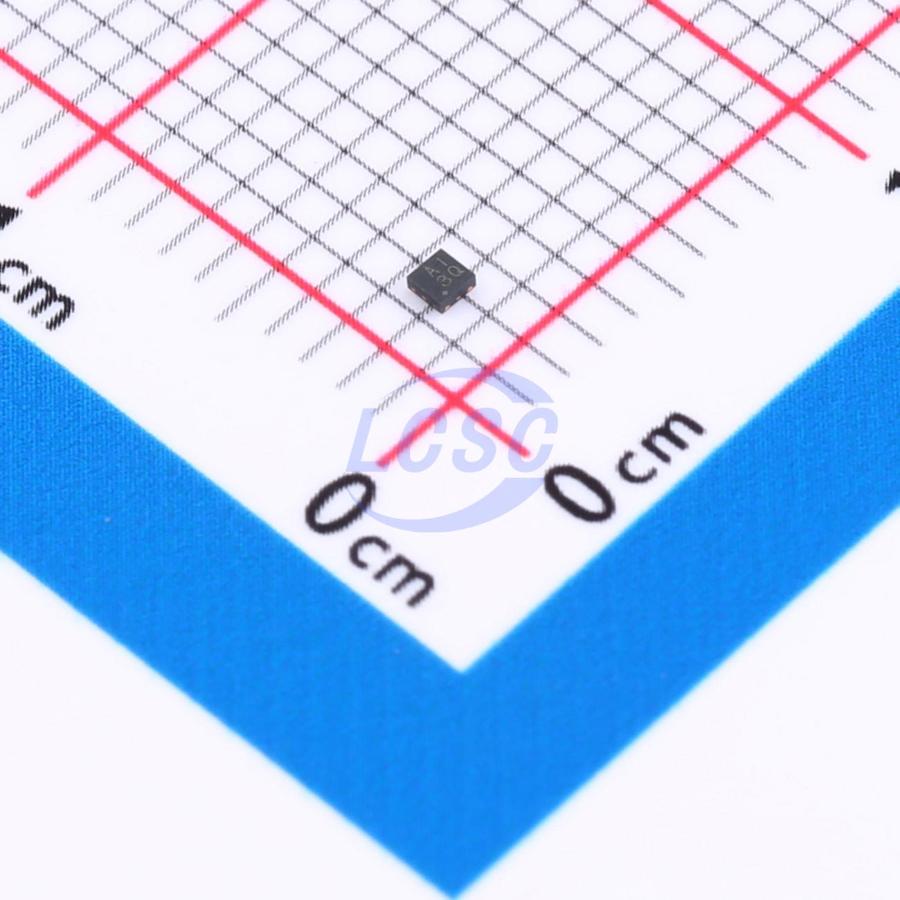

MS3236-1.5YUTDN4
1.5V Positive Fixed DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4L(1x1)RoHSActive
IC REG LINEAR 1.5V 300mA DFN-4L(1x1)
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS3236-1.5YUTDN4
- Store part #
- C49208545
- Package / case
- DFN-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,420 in stock
#C49208545
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.13 | ₹101.30 |
| 100+ | ₹8.06 | ₹806.00 |
| 300+ | ₹7.01 | ₹2,103.00 |
| 1,000+ | ₹6.23 | ₹6,230.00 |
| 5,000+ | ₹5.61 | ₹28,050.00 |
| 10,000+ | ₹5.29 | ₹52,900.00 |
10 × ₹10.13
₹101.30
excl. GST
₹119.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MS3236-1.5YUTDN4
₹101.30 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.007 g
Overview
MS3236-x.xYUTDN4 is a low-power, low-dropout linear regulator with 300mA drive capability. The device exhibits excellent power consumption characteristics under light-load conditions in portable applications, with a shutdown current of less than 0.1µA and a quiescent current of 0.8µA. It provides an output voltage range of 0.8~3.6V, suitable for a wide range of applications, and features integrated thermal shutdown and current limiting protection.
Applications
- Cellular & Smartphones
- Audio/Video Equipment
- Battery-Powered Devices
- Portable Electronics
Key features
- Quiescent current 0.8uA at light load
- Output voltage accuracy ±2%
- Input voltage range 1.5~5.5V
- Output voltage range 0.8~3.6V
- Thermal shutdown protection
- Current limiting protection
- RoHS compliant and halogen-free
