MSKSEMI

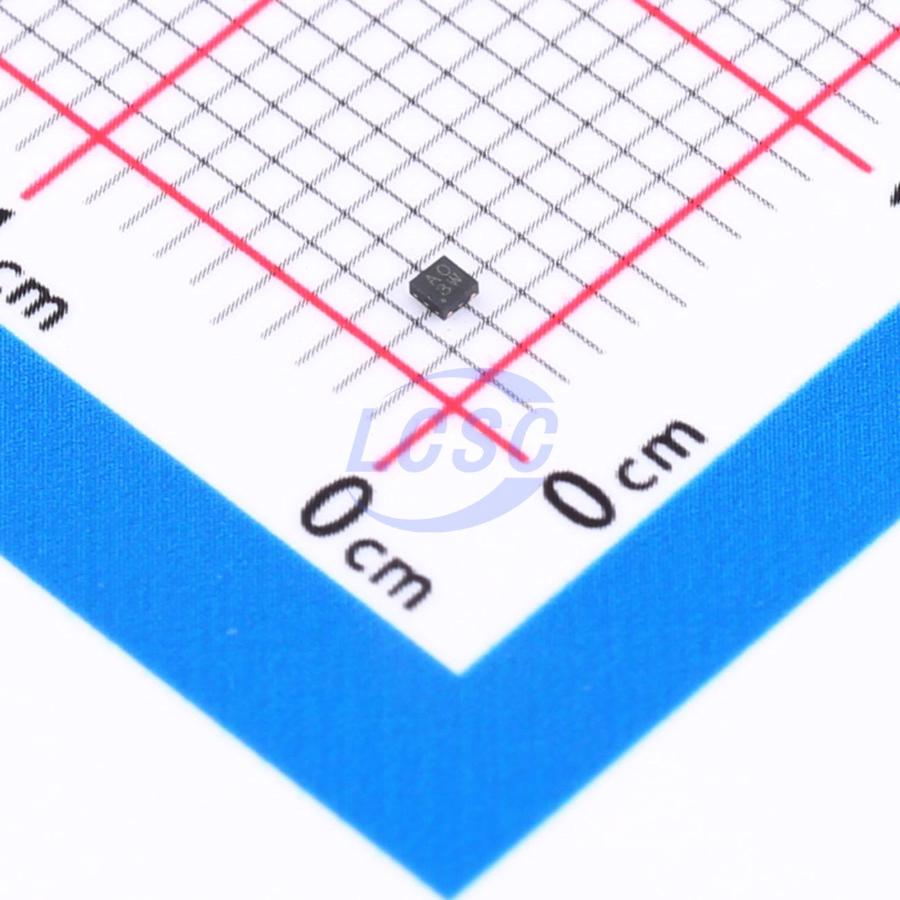

MS3236-2.5YUTDN4

2.5V Positive Fixed DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

DFN-4L(1x1)RoHSActive

IC REG LINEAR 2.5V DFN-4L(1x1)

Manufacturer: MSKSEMI
Manufacturer part #: MS3236-2.5YUTDN4
Store part #: C49208547
Package / case: DFN-4L(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,810 in stock

#C49208547

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹10.98	₹54.90
50+	₹9.67	₹483.50
150+	₹9.02	₹1,353.00
500+	₹8.53	₹4,265.00
2,500+	₹7.75	₹19,375.00
5,000+	₹7.55	₹37,750.00

Quantity (min 5, multiples of 5)

5 × ₹10.98

₹54.90

excl. GST

₹64.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

MS3236-2.5YUTDN4

₹54.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 800nA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 5.5V
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.007 g

Overview

MS3236-x.xYUTDN4 is a low-power, low-dropout linear regulator with 300mA drive capability. The device exhibits excellent power consumption characteristics under light-load conditions in portable applications, with a shutdown current of less than 0.1µA and a quiescent current of 0.8µA. It provides an output voltage range of 0.8~3.6V, suitable for a wide range of applications, and features integrated thermal shutdown and current limiting protection.
