MSKSEMI

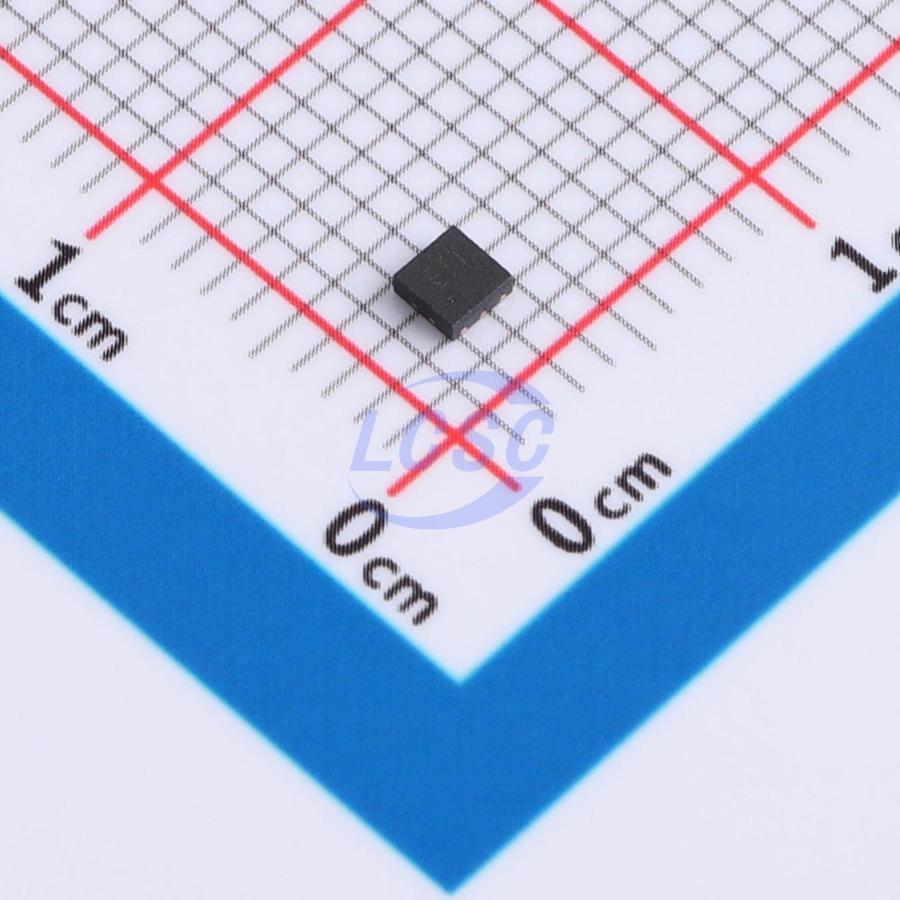

MS8010GQW

Step-down type Adjustable 1.3A 600mV~6V DFN-6L(2x2) Voltage Regulators - DC DC Switching Regulators

DFN-6L(2x2)RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS8010GQW
Store part #: C52988871
Package / case: DFN-6L(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,925 in stock

#C52988871

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.61	₹138.05
50+	₹21.87	₹1,093.50
150+	₹19.41	₹2,911.50
500+	₹16.35	₹8,175.00
2,500+	₹14.98	₹37,450.00
4,000+	₹14.16	₹56,640.00

Quantity (min 5, multiples of 5)

5 × ₹27.61

₹138.05

excl. GST

₹162.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS8010GQW

₹138.05 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.2MHz;3kHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.3V~6V
Switch tube (built-in/external): Built-in
Output Current: 1.3A
Output Voltage: 600mV~6V
Quiescent Current: 25uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

MS8010GQW is a high-efficiency, high-frequency synchronous buck DC-DC regulator IC capable of delivering up to 1.3A output current. The device operates over a wide input voltage range of 2.3V to 6V and integrates both main and synchronous switches with ultra-low on-resistance R_DS(ON) to minimize conduction losses. It is well suited for powering portable devices running from a single-cell Li+ battery. The output voltage is adjustable down to 0.6V. The MS8010GQW also supports 100% duty cycle operation for low dropout performance, extending battery life in portable systems. The device offers two operating modes — PWM mode and PFM mode switching control — to achieve high efficiency across a wide load range. The MS8010GQW is available in a DFN2x2-6L package in an adjustable output version.

Applications

Cellular phones and smartphones
Wireless and DSL modems
Personal digital assistants
Portable instruments
Digital cameras and camcorders
Set-top boxes

Key features

High efficiency: up to 96%
1.2MHz constant frequency operation
1.3A output current
No Schottky diode required
2.3V to 6V input voltage range
Output voltage as low as 0.6V
PFM mode for high efficiency at light load
100% duty cycle in dropout operation
Low quiescent current: 25μA
Slope compensation current mode control for excellent line and load transient response
Short-circuit protection
Thermal fault protection
Inrush current limiting and soft-start
Shutdown current <1μA
DFN2X2-6L package
