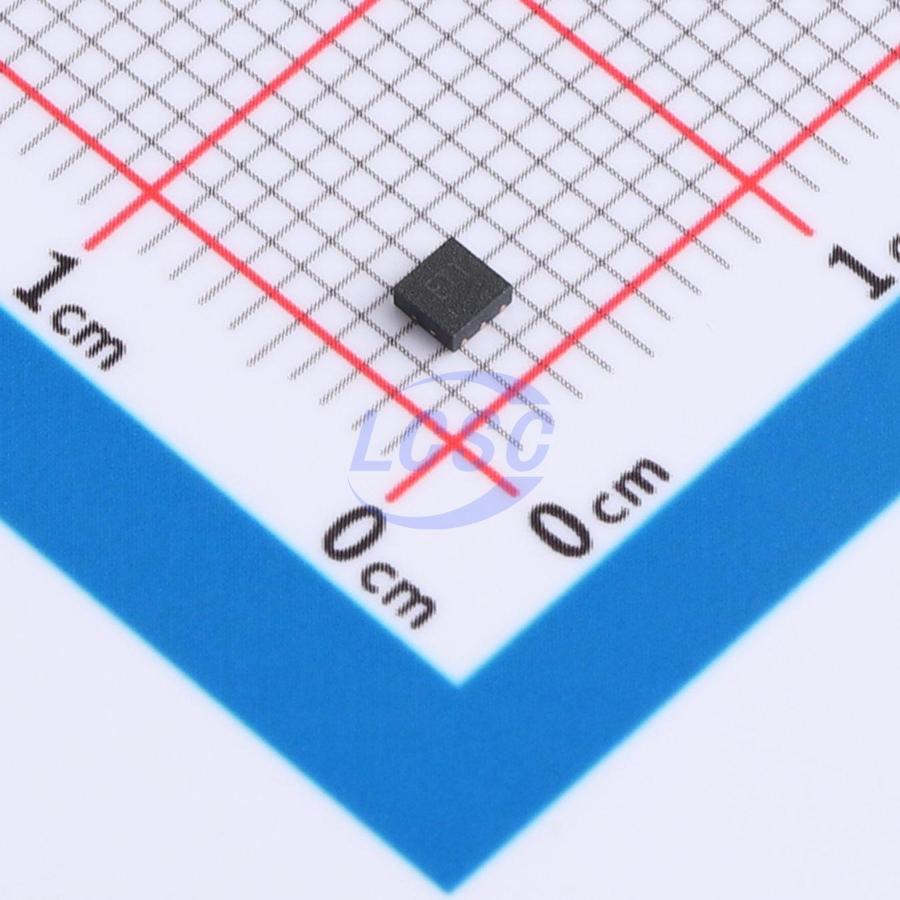

PAM2305DGFADJ-MS

Step-down type Adjustable 1.3A 600mV~6V DFN-6L(2x2) Voltage Regulators - DC DC Switching Regulators

DFN-6L(2x2)RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: PAM2305DGFADJ-MS
Store part #: C52988870
Package / case: DFN-6L(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,940 in stock

#C52988870

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹32.64	₹163.20
50+	₹25.85	₹1,292.50
150+	₹22.94	₹3,441.00
500+	₹19.32	₹9,660.00
2,500+	₹17.70	₹44,250.00
4,000+	₹16.74	₹66,960.00

Quantity (min 5, multiples of 5)

5 × ₹32.64

₹163.20

excl. GST

₹192.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PAM2305DGFADJ-MS

₹163.20 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.2MHz;3kHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.3V~6V
Switch tube (built-in/external): Built-in
Output Current: 1.3A
Output Voltage: 600mV~6V
Quiescent Current: 25uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

PAM2305DGFADJ-MS is a high-efficiency, high-frequency synchronous step-down DC-DC regulator IC capable of delivering up to 1.3A output current. The device operates over a wide input voltage range of 2.3V to 6V and integrates main and synchronous switches with ultra-low on-resistance to minimize conduction losses. It is ideally suited for portable devices powered by a single-cell Li-ion battery. The output voltage is adjustable down to 0.6V. The device also supports 100% duty cycle operation under low dropout conditions, extending battery life in portable systems. Two operating modes are available — PWM mode and PFM mode switching control — achieving high efficiency across a wide load range. The PAM2305DGFADJ-MS is offered in a DFN2x2-6L package and is available in an adjustable output version.
