MSKSEMI

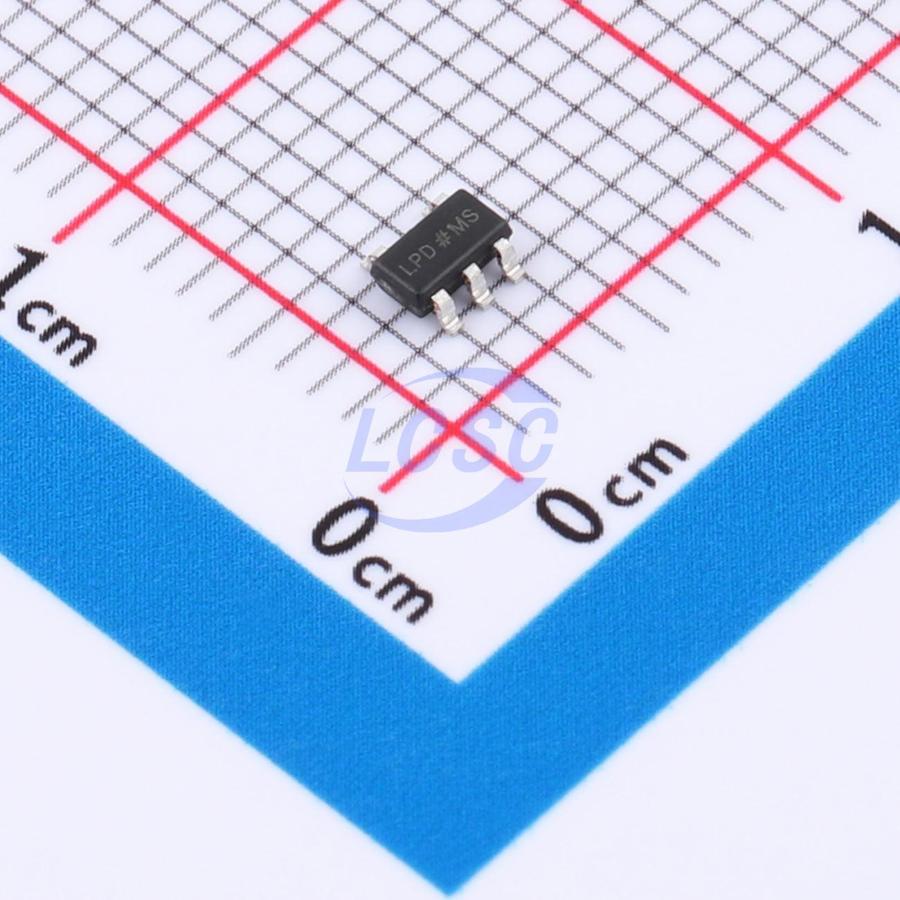

MSADP7118AUJZ-5.0

5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

IC REG LINEAR 5V 300mA SOT-23-5

Manufacturer: MSKSEMI
Manufacturer part #: MSADP7118AUJZ-5.0
Store part #: C49375259
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,484 in stock

#C49375259

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
1+	₹103.64	₹103.64
10+	₹93.87	₹938.70
30+	₹88.43	₹2,652.90
100+	₹82.34	₹8,234.00
500+	₹75.83	₹37,915.00
1,000+	₹74.52	₹74,520.00

Quantity (min 1)

1 × ₹103.64

₹103.64

excl. GST

₹122.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MSADP7118AUJZ-5.0

₹103.64 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 2.2uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 24V
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The MSADP7118AUJZ-x.x series is a family of low-dropout linear regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 1.5μA, these regulators are ideal for powering battery-operated always-on systems that require ultra-low quiescent current draw to maximize operating lifetime. The series maintains stability with ceramic output capacitors across a wide input voltage range of 2V to 24V and output load current range of 0mA to 300mA.

Applications

Portable battery-powered devices
Low-power microcontrollers
Laptops, handheld PCs, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems
Industrial control
Weighing scales
Instrumentation
Home automation

Key features

Ground current of only 1.5μA at no load
Output accuracy ±2%
Output current 300mA
Wide input voltage range: 2V to 24V
Dropout voltage: 0.35V at 100mA load, 5V output
Fixed output voltages: 1.8V, 2.5V, 3.3V, 5V
Stable with ceramic or tantalum capacitors
Current limiting protection
Over-temperature protection
SOT-23-5 package
