TIDatasheet (PDF)

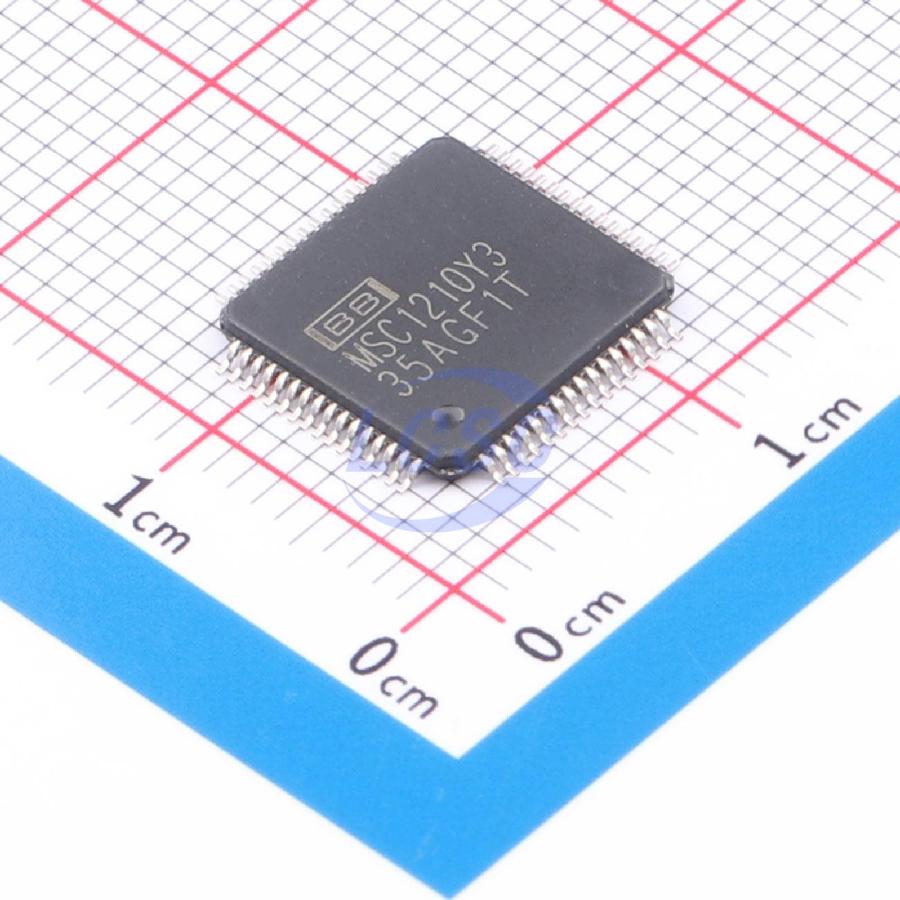

MSC1210Y3PAGR
24 Bit Analog to Digital Converter 8 Input TQFP-64(10x10)
TQFP-64(10x10)ROHS3 CompliantActive
Precision Analog-to-Digital Converter (ADC) with 8051 Microcontroller and Flash Memory
- Manufacturer
- TI
- Manufacturer part #
- MSC1210Y3PAGR
- Store part #
- C2667198
- Package / case
- TQFP-64(10x10)
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,503 in stock
#C2667198
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,368.61 | ₹2,368.61 |
| 10+ | ₹2,251.85 | ₹22,518.50 |
| 30+ | ₹2,049.37 | ₹61,481.10 |
| 100+ | ₹1,872.93 | ₹1,87,293.00 |
1 × ₹2,368.61
₹2,368.61
excl. GST
₹2,794.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
MSC1210Y3PAGR
₹2,368.61 for 1 + GST
Specifications
- Features
- Programmable gain;Built-in temperature sensor;Bipolar input;Built-in reference source;On-chip calibration;Power-down mode
- Number of Channels
- 8
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI;UART
- Voltage - Supply
- 2.7V~5.25V
- Quiescent Current
- 0.5uA
- ADC architecture
- Sigma-Delta
- Resolution (Bits)
- 24;-
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Applications
- Industrial Process Control
- Instrumentation
- Liquid/Gas Chromatography
- Blood Analysis
- Smart Transmitters
- Portable Instruments
- Weigh Scales
- Pressure Transducers
- Intelligent Sensors
- Portable Applications
- DAS Systems
Key features
- 24 Bits No Missing Codes
- 22 Bits Effective Resolution at 10Hz
- Low Noise: 75nV
- PGA From 1 to 128
- Precision On-Chip Voltage Reference
- 8 Differential/Single-Ended Channels
- On-Chip Offset/Gain Calibration
- Offset Drift: 0.1ppm/℃
- Gain Drift: 0.5ppm/℃
- On-Chip Temperature Sensor
- Burnout Sensor Detection
- Single-Cycle Conversion
- Selectable Buffer Input
- 8051-Compatible
- High-Speed Core
- 4 Clocks per Instruction Cycle
- DC to 33MHz
- Single Instruction 121ns
- Dual Data Pointer
- Up To 32kB Flash Memory
- Flash Memory Partitioning
- Endurance 1M Erase/Write Cycles
- 100 Year Data Retention
- In-System Serially Programmable
- External Program/Data Memory (64kB)
- 1,280 Bytes Data SRAM
- Flash Memory Security
- 2kB Boot ROM
- Programmable Wait State Control
- 34 I/O Pins
- Additional 32-Bit Accumulator
- Three 16-Bit Timer/Counters
- System Timers
- Programmable Watchdog Timer
- Full-Duplex Dual USARTs
- Master/Slave SPI
- 16-Bit PWM
- Power Management Control
- Idle Mode Current < 1mA
- Stop Mode Current < 1μA
- Programmable Brownout Reset
- Programmable Low Voltage Detect
- 24 Interrupt Sources
- Two Hardware Breakpoints
- Pin-Compatible with MSC1211/12/13/14
- Package: TQFP-64
- Low Power: 4mW
- Industrial Temperature Range: -40℃ to +125℃
- Power Supply: 2.7V to 5.25V
