EATONDatasheet (PDF)

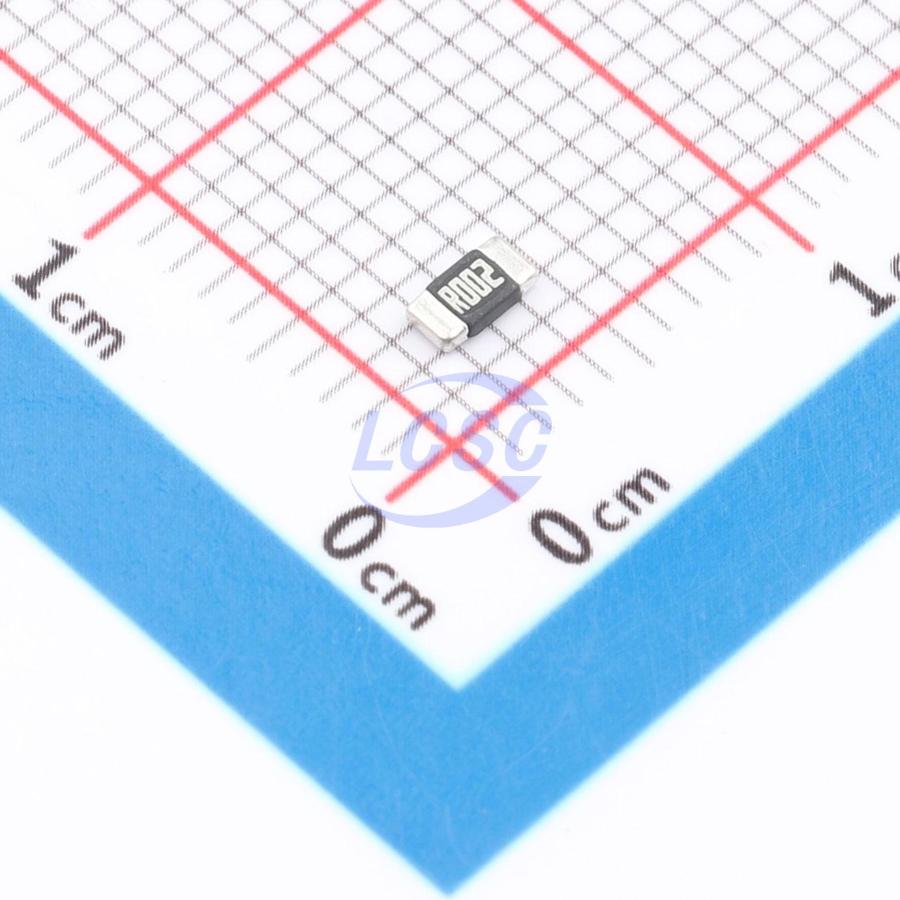

MSMA1206R0020FCM
1W 2mΩ ±50ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 2mΩ ±1% 1W 1206
- Manufacturer
- EATON
- Manufacturer part #
- MSMA1206R0020FCM
- Store part #
- C6231661
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C6231661
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.62 | ₹133.10 |
| 50+ | ₹26.08 | ₹1,304.00 |
| 150+ | ₹25.72 | ₹3,858.00 |
| 500+ | ₹25.36 | ₹12,680.00 |
5 × ₹26.62
₹133.10
excl. GST
₹157.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MSMA1206R0020FCM
₹133.10 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 2mΩ
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+170℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
Overview
Applications
- Switching Mode Power Supply (SMPS)
- Voltage Regulation Modules
- Power Management
- Stepper Motor Drivers
Key features
- Low sensing resistance
- Package sizes from 0603 (1608 metric) to 2512 (6432 metric)
- High power dissipation
- AEC-Q200 compliant
- Moisture Sensitivity Level (MSL): 1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PA1206FRE4L0R002Z#C728282YAGEO · 1206 | YAGEO | 1206 | 3,230 | ₹11.99 · 3,230 in stock | View |
 | WFC12062L000FE66#C3948219VISHAY · 1206 | VISHAY | 1206 | 60 | ₹67.00 · 60 in stock | View |
 | PA1206FRM470R002L#C728295YAGEO · 1206 | YAGEO | 1206 | 5 | ₹117.30 · 5 in stock | View |
 | RLP32KR002FTP#C340568KAMAYA · 1206 | KAMAYA | 1206 | 2,210 | ₹24.94 · 2,210 in stock | View |
 | WSLP12062L000FEA#C844294VISHAY · 1206 | VISHAY | 1206 | 18,440 | ₹23.66 · 18,440 in stock | View |
