EATONDatasheet (PDF)

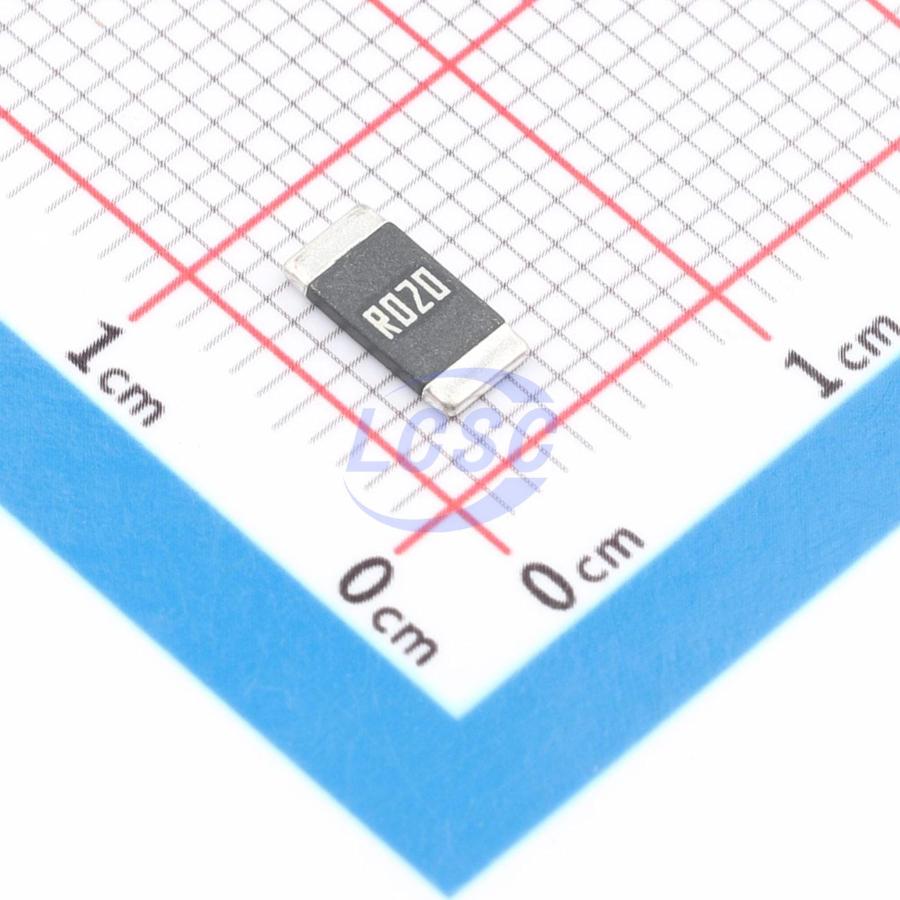

MSMA2512R0200FCN
20mΩ 1W ±50ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 20mΩ ±1% 1W 2512
- Manufacturer
- EATON
- Manufacturer part #
- MSMA2512R0200FCN
- Store part #
- C6685133
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C6685133
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.97 | ₹124.85 |
| 50+ | ₹24.48 | ₹1,224.00 |
| 150+ | ₹24.13 | ₹3,619.50 |
| 500+ | ₹23.80 | ₹11,900.00 |
5 × ₹24.97
₹124.85
excl. GST
₹147.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MSMA2512R0200FCN
₹124.85 for 5 + GST
Specifications
- Resistance
- 20mΩ
- Power(Watts)
- 1W
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+170℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.151 g
Overview
Applications
- Switching Mode Power Supply (SMPS)
- Voltage Regulation Modules
- Power Management
- Stepper Motor Drivers
Key features
- Low sensing resistance
- Package sizes from 0603 (1608 metric) to 2512 (6432 metric)
- High power dissipation
- AEC-Q200 compliant
- Moisture Sensitivity Level (MSL): 1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRF2512-FZ-R020ELF#C4220739BOURNS · 2512 | BOURNS | 2512 | 288 | ₹77.86 · 288 in stock | View |
 | PA2512FKE070R02E#C7023698YAGEO · 2512 | YAGEO | 2512 | 3,750 | ₹17.78 · 3,750 in stock | View |
 | LRP12FTDSR020#C316199Viking · 2512 | Viking | 2512 | 115 | ₹14.05 · 115 in stock | View |
 | PA2512FKE7T0R02E#C728302YAGEO · 2512 | YAGEO | 2512 | 6,640 | ₹27.52 · 6,640 in stock | View |
| MCS3264R020FER#C4286765Ohmite · 2512 | Ohmite | 2512 | 3 | ₹61.80 · 3 in stock | View | |
