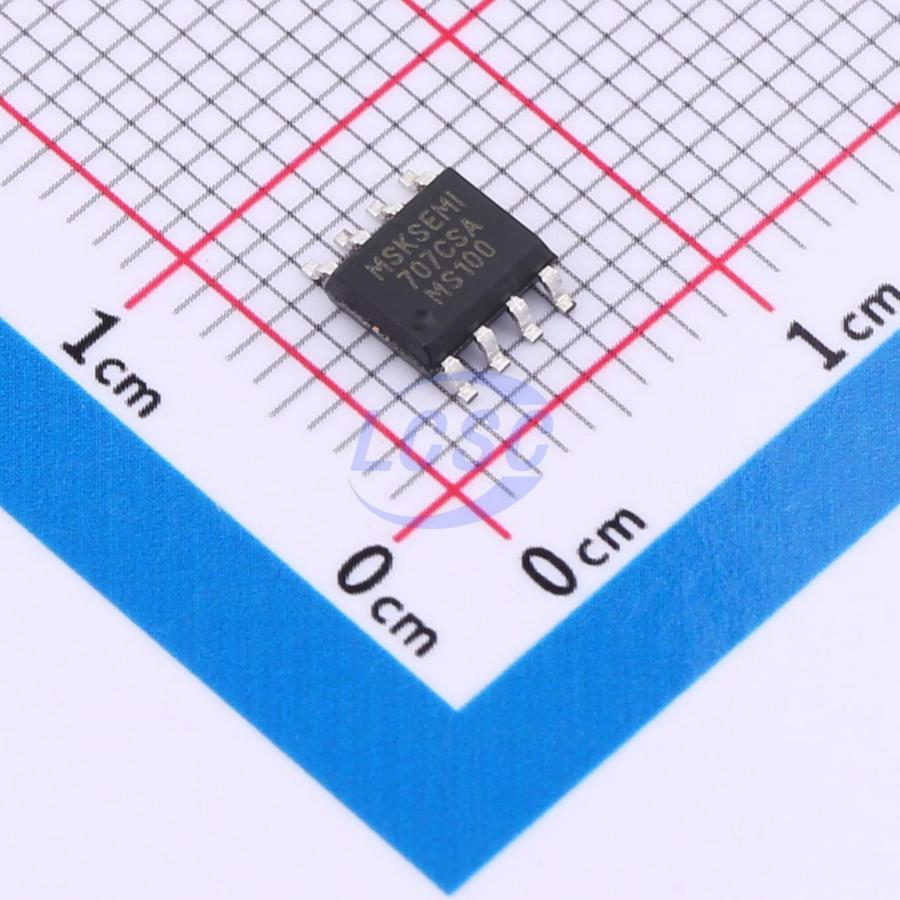

MSMAX707CSA+T
Supervisor SOP-8
IC SUPERVISOR SOP-8
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSMAX707CSA+T
- Store part #
- C42403141
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,983 in stock
#C42403141
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.42 | ₹72.42 |
| 10+ | ₹58.33 | ₹583.30 |
| 30+ | ₹51.39 | ₹1,541.70 |
| 100+ | ₹44.24 | ₹4,424.00 |
| 500+ | ₹40.11 | ₹20,055.00 |
| 1,000+ | ₹37.94 | ₹37,940.00 |
1 × ₹72.42
₹72.42
excl. GST
₹85.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MSMAX707CSA+T
₹72.42 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Reset Timeout
- 200ms
- Function
- Manual reset input
- Reset Active Level
- Active High;Active Low
- standby current
- 50uA
- Voltage - Supply
- 5V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.65V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.097 g
Overview
The 706P/R/S/T/J, 708R/S/T/J, 705/6/7/8, and 813L ICs are primarily used for monitoring power supply and battery voltages. A reset signal is generated when the supply voltage falls below 2.63V (706P/R, 708R), 2.93V (706S, 708S), 3.08V (706T, 708T), 4.00V (706J, 708J), 4.40V (706/708), or 4.65V (705/707, 813L). The 706P/R/S/T/J, 705/706, and 813L ICs feature a watchdog circuit with a 1.6-second reset delay timeout; leaving the WDI pin floating disables the watchdog timer. The 708R/S/T/J, 707/708 ICs provide both active-high and active-low reset outputs but have no watchdog function. The 706P is functionally identical to the 706R except that its reset output is active-high. The 813L is functionally identical to the 705 except that its reset output is active-high. A built-in 1.25V comparator is available for battery low-voltage monitoring. All ICs feature a manual reset input. Available packages include 8-pin DIP, SOP, and compact MSOP.
Applications
- Computers and controllers
- Embedded systems
- Battery-powered systems
- Smart instruments
- Wireless communication systems
Key features
- Low power consumption, fully compatible products
- MSMAX706P/R/S/T, MSMAX708R/S/T, MSMAX705/6/7/8, MSMAX813L: Supply current (100μA)
- 6 selectable high-precision voltage monitoring options
- Manual reset input
- Built-in 1.25V voltage monitor
- Watchdog function (706P/R/S/T/J, 705/6/813L)
- 200ms reset delay output
- 3 selectable reset signal options
- 8-pin DIP, SOP, MSOP packages
