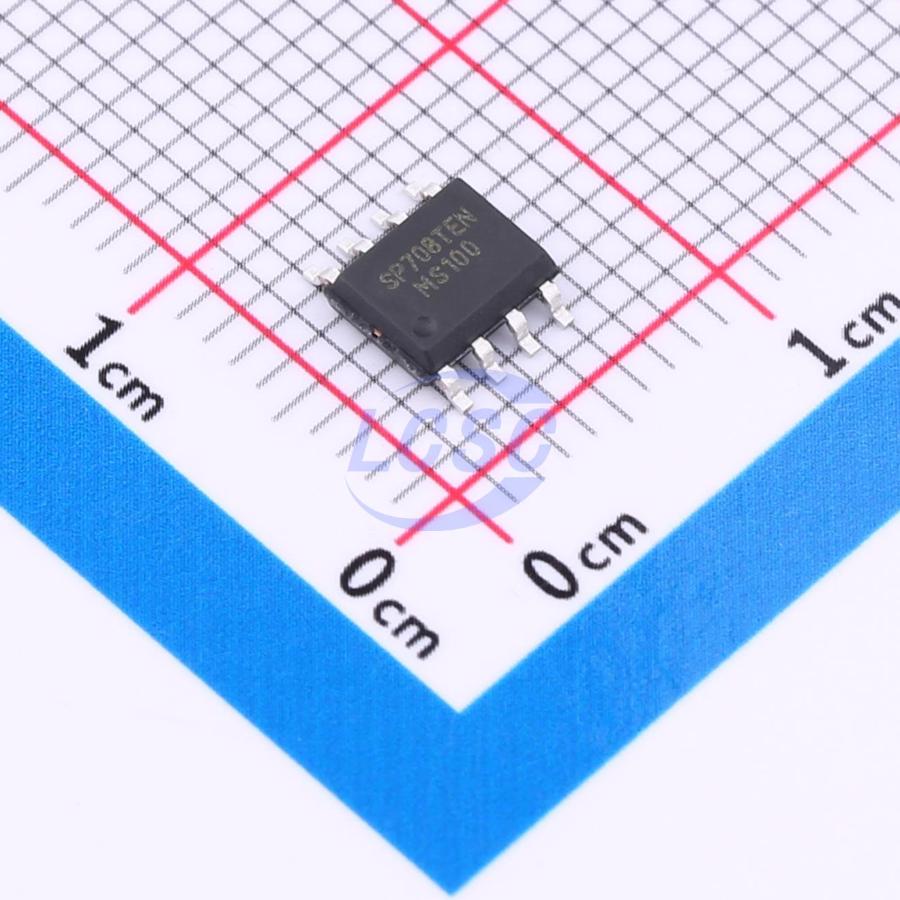

MSP708TEN-L/TR
Supervisor SOP-8
Power supply voltage and battery voltage monitoring chips
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSP708TEN-L/TR
- Store part #
- C42403143
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C42403143
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.39 | ₹62.39 |
| 10+ | ₹49.78 | ₹497.80 |
| 30+ | ₹44.33 | ₹1,329.90 |
| 100+ | ₹37.60 | ₹3,760.00 |
| 500+ | ₹34.45 | ₹17,225.00 |
| 1,000+ | ₹32.56 | ₹32,560.00 |
1 × ₹62.39
₹62.39
excl. GST
₹73.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MSP708TEN-L/TR
₹62.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- Function
- Manual reset input
- Reset Active Level
- Active High;Active Low
- standby current
- 50uA
- Voltage - Supply
- 3.5V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
The MSP706P/R/S/T/J, MSP708R/S/T/J, MSP705/6/8, and MSP813L ICs are primarily designed for monitoring power supply and battery voltages. A reset signal is generated when the supply voltage falls below 2.63V (MSP706P/R, MSP708R), 2.93V (MSP706S, MSP708S), 3.08V (MSP706T, MSP708T), 4.00V (MSP706J, MSP708J), 4.40V (MSP706/MSP708), or 4.65V (MSP705, MSP813L). The MSP706P/R/S/T/J, MSP705/706/813L ICs feature a watchdog circuit with a 1.6-second reset delay. Leaving the WDI pin floating disables the watchdog timer. The MSP708R/S/T/J and MSP708 ICs provide both active-high and active-low reset outputs, but do not include watchdog functionality. The MSP706P is functionally equivalent to the MSP706R, except that the MSP706P reset output is active-high. Similarly, the MSP813L is functionally equivalent to the MSP705, except that the MSP813L reset output is active-high. A built-in 1.25V comparator is available for low-voltage battery monitoring. All ICs support manual reset. Available packages include 8-pin SOP and compact MSOP.
Applications
- Computers and controllers
- Embedded systems
- Battery-powered systems
- Smart instruments
- Wireless communication systems
Key features
- Low power consumption, fully compatible with MAX706P/R/S/T, MAX708R/S/T, MAX705/6/7/8, MAX813L
- 6 high-precision voltage monitoring options
- Manual reset input
- Built-in 1.25V voltage monitor
- Watchdog function (706P/R/S/T/J, 705/6/813L)
- 200ms reset delay output
- 3 reset signal options
- 8-pin SOP, MSOP package
