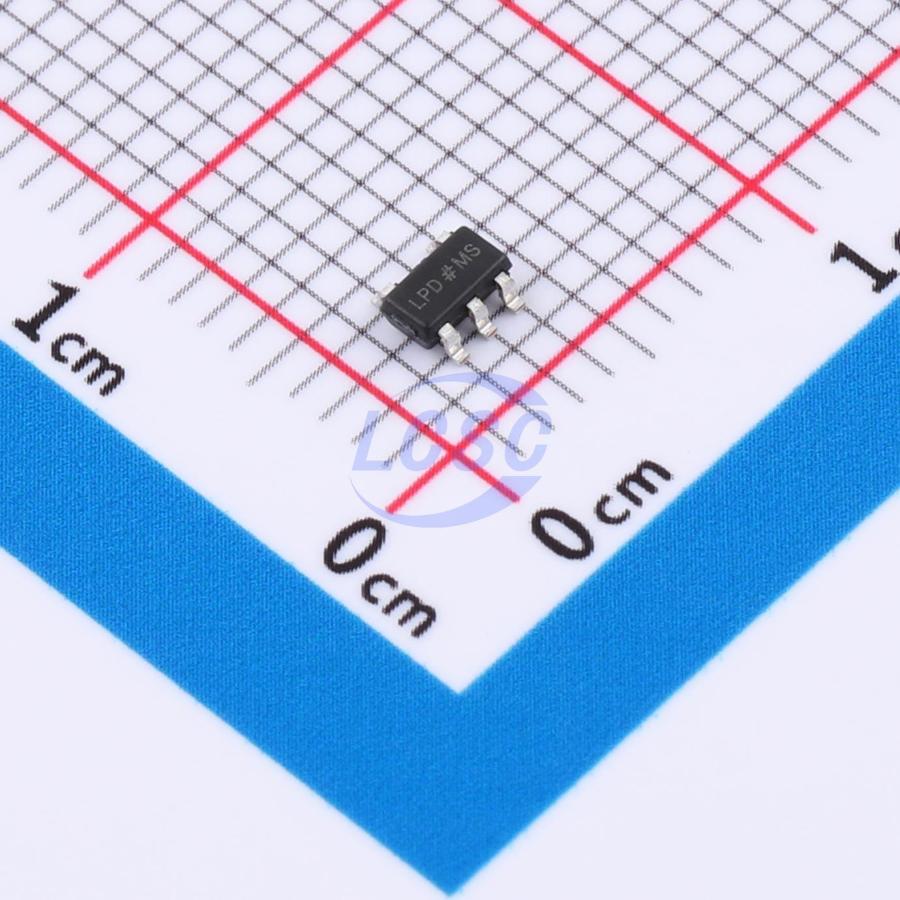

MSP7118AUJZ-5.0
Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 300mA SOT-23-5
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSP7118AUJZ-5.0
- Store part #
- C49375260
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,987 in stock
#C49375260
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.87 | ₹53.87 |
| 10+ | ₹48.01 | ₹480.10 |
| 30+ | ₹44.97 | ₹1,349.10 |
| 100+ | ₹42.15 | ₹4,215.00 |
| 500+ | ₹38.46 | ₹19,230.00 |
| 1,000+ | ₹37.59 | ₹37,590.00 |
1 × ₹53.87
₹53.87
excl. GST
₹63.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSP7118AUJZ-5.0
₹53.87 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The MSP7118AUJZ-x.x series is a family of low-dropout linear regulators featuring wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 1.5μA, they are ideal for powering battery-operated, always-on systems that require extremely low idle-state power consumption to extend operating life. This series of linear regulators maintains stability with ceramic output capacitors across a wide input voltage range of 2V to 24V and an output load current range of 0mA to 300mA.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Wireless communication devices
- Automotive navigation systems
- Industrial control
Key features
- No-load ground current: 1.5μA
- Output accuracy: ±2%
- Output current: 300mA
- Wide input voltage range: 2V to 24V
- Dropout voltage: 0.35V at 100mA output current, 5V output voltage
- Fixed output voltages: 1.8V, 2.5V, 3.3V, 5V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- SOT-23-5 package
