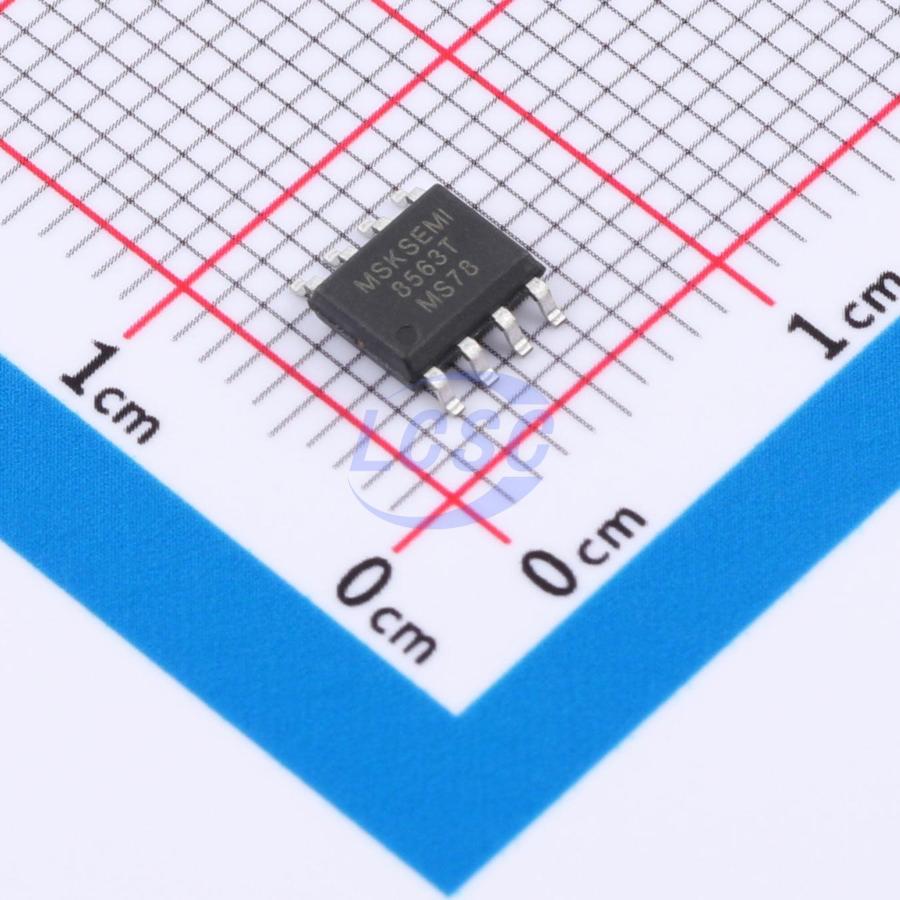

MSPCF8563T

MSPCF8563x is a low-power CMOS real-time clock/calendar IC that provides a programmable clock output, an interrupt output, and a power-down detector. All addresses and data are transferred serially via the I²C bus interface. The maximum bus speed is 400kbps, and the built-in word address register increments automatically after each read/write operation.

Applications

• Portable instruments
• Mobile phones
• Fax machines
• Multi-rate energy meters
• IC card water meters

Key features

• Timekeeping for seconds, minutes, hours, day of week, date, month, and year based on a 32.768kHz crystal oscillator, with century flag
• Wide operating voltage range: 1.2 ~ 5.5 V
• Low standby current: typical 0.25 μA (ΔVDD = 3.0V, TA = 25℃)
• I²C bus slave address: read address 0A3H, write address 0A2H
• Programmable clock output frequencies: 32.768kHz, 1024Hz, 32Hz, 1Hz
• Alarm and timer functions
• Integrated power-fail detector
• Internal oscillator capacitor
• Package: SOP-8 or DIP-8
• Open-drain interrupt pin
