MSTDatasheet (PDF)

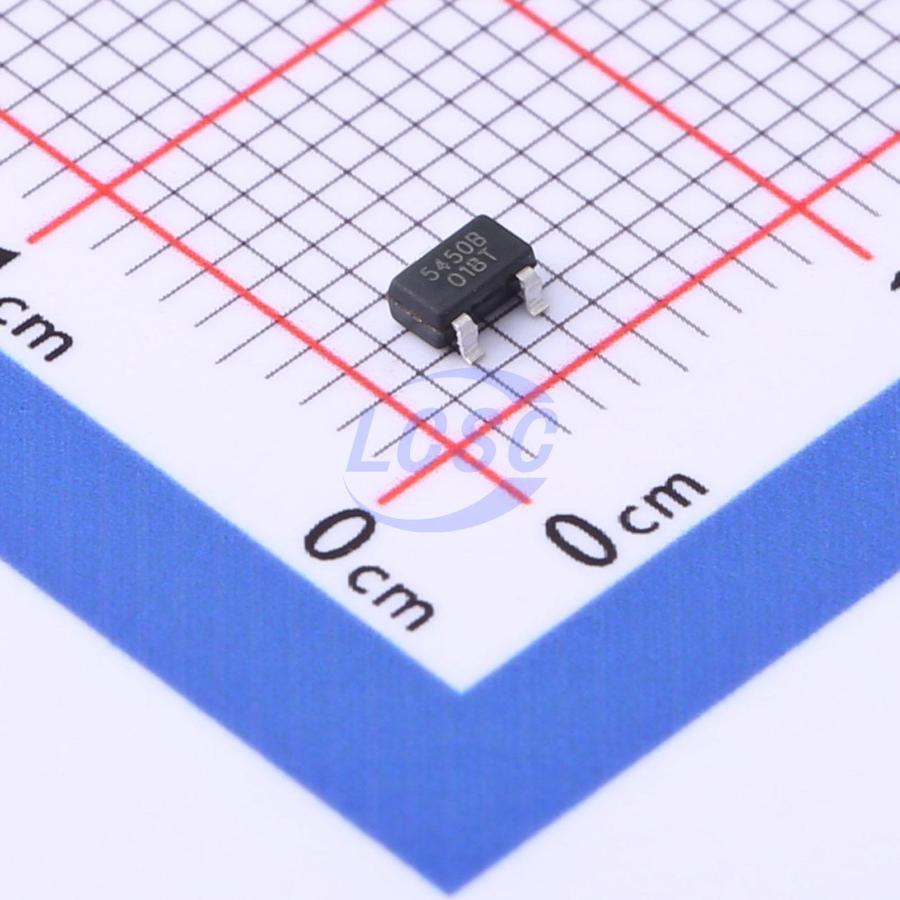

MST5450BTE
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
45V/300mA/2.1μA IQ/Fast Transient Low Dropout (LDO) Linear Voltage Regulator
- Manufacturer
- MST
- Manufacturer part #
- MST5450BTE
- Store part #
- C2761429
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C2761429
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.85 | ₹64.25 |
| 50+ | ₹10.24 | ₹512.00 |
| 150+ | ₹8.94 | ₹1,341.00 |
| 500+ | ₹7.96 | ₹3,980.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹12.85
₹64.25
excl. GST
₹75.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MST5450BTE
₹64.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The MST54XXB series is a high-voltage, low-power LDO linear regulator featuring an input voltage up to 45V, 2.8uA quiescent current, high PSRR, and a maximum output current of 350mA. The MST54XXB provides fast response to input voltage transients and load current transients, while ensuring no overshoot voltage during startup and short-circuit recovery. The MST54XXB series incorporates short-circuit protection, current limiting protection, and over-temperature protection, with shutdown mode activated by pulling the EN pin low. The series offers four fixed output voltages: 1.8V, 3.0V, 3.3V, and 5.0V. The MST54XXB series are 350mA wide input voltage range linear regulators with ultra-low quiescent current. These regulators operate from 3V to 45V, support 45V transient input voltage, and consume only 2.8uA quiescent current at no load. In addition, the series provides enable control, with additional protection features including VIN undervoltage lockout, overcurrent protection, output short-circuit protection, and over-temperature protection.
Applications
- Battery-powered devices
- Smoke detectors and sensors
- Microcontroller applications
- Home appliances
Key features
- Low quiescent current: 2.8uA
- Shutdown current: 130nA
- Wide input voltage range: 3V ~ 45V
- High output current: 350mA
- PSRR: 83dB/1kHz
- Low dropout voltage: 320mV@100mA
- Fixed output voltages: 1.8V, 3.0V, 3.3V, and 5.0V
- Output voltage accuracy: ±2%
- Fast transient response
- Integrated current limiting protection
- Integrated short-circuit protection
- Integrated over-temperature protection
- Available packages: SOT23-3, SOT89-3, SOT23-5, SOT223-3, and TO252-3
